Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Windscreen/Inside Rear View Mirror (Halewood (UK)) ((V) TODH999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR021821 MIRROR - REAR VIEW - INNER Enquire To Order
LR025168 MIRROR - REAR VIEW - INNER Enquire To Order
LR025167 MIRROR - REAR VIEW - INNER Enquire To Order
...and 10 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR026233 GLASS - WINDSCREEN Enquire To Order
LR026237 GLASS - WINDSCREEN Enquire To Order
LR026238 GLASS - WINDSCREEN Enquire To Order
...and 21 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR019144 PLUG - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
CES500020 SEALER- GLASS ADHESIVE Enquire To Order
Photo Part No Description Price (each) Stock
LR025162 COVER - INTERIOR MIRROR Enquire To Order
LR025163 COVER - INTERIOR MIRROR Enquire To Order
Photo Part No Description Price (each) Stock
LR025161 COVER - INTERIOR MIRROR Enquire To Order
LR025165 COVER - INTERIOR MIRROR Enquire To Order
View All

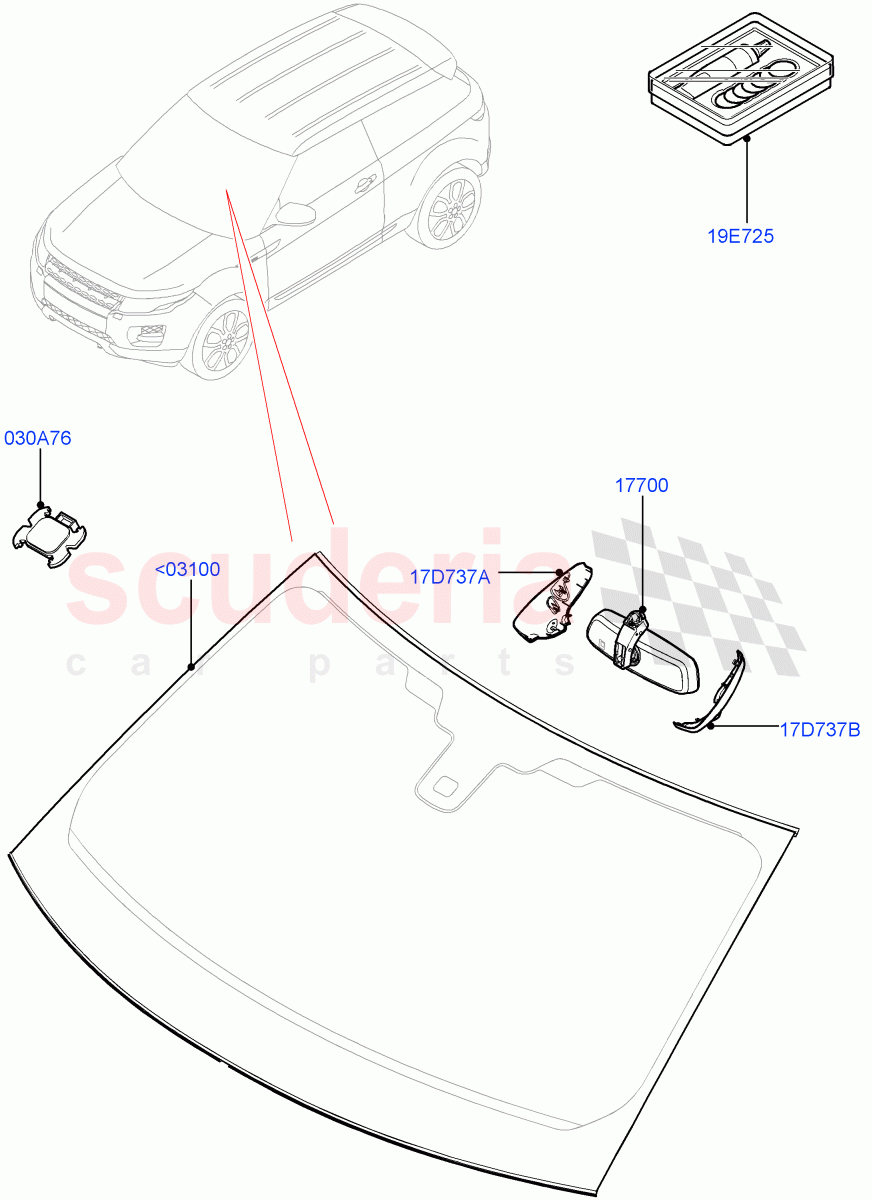

Windscreen/Inside Rear View Mirror (Halewood (UK)) ((V) TODH999999) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<03100 LR026233
GLASS - WINDSCREEN
5 Door, Climate Control Windscreen, Less Heated Windscreen / To: CH625650 		- 1 Enquire
<03100 LR026237
GLASS - WINDSCREEN
5 Door, Standard Windscreen, With Heated Windscreen / To: CH625650 		- 1 Enquire
<03100 LR026238
GLASS - WINDSCREEN
5 Door, Climate Control Windscreen, With Heated Windscreen / To: CH625650 		- 1 Enquire
<03100 LR026296
GLASS - WINDSCREEN
3 Door, Less Heated Windscreen, Standard Windscreen / To: CH625650 		- 1 Enquire
<03100 LR026298
GLASS - WINDSCREEN
3 Door, Standard Windscreen, With Heated Windscreen / To: CH625650 		- 1 Enquire
<03100 LR026299
GLASS - WINDSCREEN
3 Door, Climate Control Windscreen, With Heated Windscreen / To: CH625650 		- 1 Enquire
<03100 LR026230
GLASS - WINDSCREEN
5 Door, Less Heated Windscreen, Standard Windscreen / To: CH625650 		- 1 Enquire
<03100 LR026297
GLASS - WINDSCREEN
3 Door, Climate Control Windscreen, Less Heated Windscreen / To: CH625650 		- 1 Enquire
<03100 LR033997
GLASS - WINDSCREEN
5 Door, Less Heated Windscreen, Standard Windscreen / From: CH625651 / To: CH685306 		- 1 Enquire
<03100 LR033998
GLASS - WINDSCREEN
5 Door, Climate Control Windscreen, Less Heated Windscreen / From: CH625651 / To: CH685306 		- 1 Enquire
<03100 LR033999
GLASS - WINDSCREEN
5 Door, Standard Windscreen, With Heated Windscreen / From: CH625651 / To: CH686340 		- 1 Enquire
<03100 LR034000
GLASS - WINDSCREEN
5 Door, Climate Control Windscreen, With Heated Windscreen / From: CH625651 / To: CH687231 		- 1 Enquire
<03100 LR034001
GLASS - WINDSCREEN
3 Door, Less Heated Windscreen, Standard Windscreen / From: CH625651 / To: CH702021 		- 1 Enquire
<03100 LR034002
GLASS - WINDSCREEN
3 Door, Climate Control Windscreen, Less Heated Windscreen / From: CH625651 / To: CH702021 		- 1 Enquire
<03100 LR034003
GLASS - WINDSCREEN
3 Door, Standard Windscreen, With Heated Windscreen / From: CH625651 / To: CH689497 		- 1 Enquire
<03100 LR034004
GLASS - WINDSCREEN
3 Door, Climate Control Windscreen, With Heated Windscreen / From: CH625651 / To: CH690439 		- 1 Enquire
<03100 LR041832
GLASS - WINDSCREEN
5 Door, Less Heated Windscreen, Standard Windscreen / From: CH685307 		- 1 Enquire
<03100 LR041833
GLASS - WINDSCREEN
5 Door, Climate Control Windscreen, Less Heated Windscreen / From: CH685307 		- 1 Enquire
<03100 LR041834
GLASS - WINDSCREEN
5 Door, Standard Windscreen, With Heated Windscreen / From: CH686341 		- 1 Enquire
<03100 LR041835
GLASS - WINDSCREEN
5 Door, Climate Control Windscreen, With Heated Windscreen / From: CH687232 		- 1 Enquire
<03100 LR041838
GLASS - WINDSCREEN
3 Door, Standard Windscreen, With Heated Windscreen / From: CH689498 		- 1 Enquire
<03100 LR041839
GLASS - WINDSCREEN
3 Door, Climate Control Windscreen, With Heated Windscreen / From: CH690440 		- 1 Enquire
<03100 LR041836
GLASS - WINDSCREEN
3 Door, Less Heated Windscreen, Standard Windscreen / From: CH702022 		- 1 Enquire
<03100 LR041837
GLASS - WINDSCREEN
3 Door, Climate Control Windscreen, Less Heated Windscreen / From: CH702022 		- 1 Enquire
17D737A LR025162
COVER - INTERIOR MIRROR
Auto Dip Fr/Rr High Beam Ast / RH 		- 1 Enquire
17D737A LR025163
COVER - INTERIOR MIRROR
Less Auto Dipping Mirror System / RH 		- 1 Enquire
17D737B LR025161
COVER - INTERIOR MIRROR
Auto Dip Fr/Rr High Beam Ast / LH 		- 1 Enquire
17D737B LR025165
COVER - INTERIOR MIRROR
Less Auto Dipping Mirror System / LH 		- 1 Enquire
19E725 CES500020
SEALER- GLASS ADHESIVE
Includes Seal 		- 1 Enquire
030A76 LR019144
PLUG - RUBBER
Less Rain Sensor - Front W/Wiper 		- 1 Enquire
17700 LR021821
MIRROR - REAR VIEW - INNER
Less Auto Dipping Mirror System, Less Garage Door Opener, With Electrochromic R/View Mirror 		- 1 Enquire
17700 LR025168
MIRROR - REAR VIEW - INNER
Auto Dip Fr/Rr High Beam Ast, Less Garage Door Opener, With Electrochromic R/View Mirror / To: CH636742 		- 1 Enquire
17700 LR025167
MIRROR - REAR VIEW - INNER
(+)"CDN/MEX/USA", Auto Dip Fr/Rr High Beam Ast, With Electrochromic R/View Mirror, With NAS Garage Door Opener / To: CH636742 		- 1 Enquire
17700 LR025166
MIRROR - REAR VIEW - INNER
(-)"CDN/MEX/USA", Auto Dip Fr/Rr High Beam Ast, With Electrochromic R/View Mirror, With Universal Garage Door Opener / To: CH636742 		- 1 Enquire
17700 LR021820
MIRROR - REAR VIEW - INNER
(+)"CDN/MEX/USA", Less Auto Dipping Mirror System, With Electrochromic R/View Mirror, With NAS Garage Door Opener 		- 1 Enquire
17700 LR021808
MIRROR - REAR VIEW - INNER
(-)"CDN/MEX/USA", Less Auto Dipping Mirror System, With Electrochromic R/View Mirror, With Universal Garage Door Opener 		- 1 Enquire
17700 LR031747
MIRROR - REAR VIEW - INNER
Less Auto Dipping Mirror System, Less Garage Door Opener, With Dipping Interior Mirrors 		- 1 Enquire
17700 LR035844
MIRROR - REAR VIEW - INNER
Auto Dip Fr/Rr High Beam Ast, Less Garage Door Opener, With Electrochromic R/View Mirror / From: CH636743 / To: DH747368 		- 1 Enquire
17700 LR035845
MIRROR - REAR VIEW - INNER
(+)"CDN/MEX/USA", Auto Dip Fr/Rr High Beam Ast, With Electrochromic R/View Mirror, With NAS Garage Door Opener / From: CH636743 / To: DH753343 		- 1 Enquire
17700 LR035846
MIRROR - REAR VIEW - INNER
(-)"CDN/MEX/USA", Auto Dip Fr/Rr High Beam Ast, With Electrochromic R/View Mirror, With Universal Garage Door Opener / From: CH636743 / To: DH754454 		- 1 Enquire
17700 LR046090
MIRROR - REAR VIEW - INNER
Auto Dip Fr/Rr High Beam Ast, Less Garage Door Opener, With Electrochromic R/View Mirror / From: DH747369 		- 1 Enquire
17700 LR046095
MIRROR - REAR VIEW - INNER
(+)"CDN/MEX/USA", Auto Dip Fr/Rr High Beam Ast, With Electrochromic R/View Mirror, With NAS Garage Door Opener / From: DH753344 		- 1 Enquire
17700 LR046096
MIRROR - REAR VIEW - INNER
(-)"CDN/MEX/USA", Auto Dip Fr/Rr High Beam Ast, With Electrochromic R/View Mirror, With Universal Garage Door Opener / From: DH754455 		- 1 Enquire
