Side Panels - Inner (Rear) (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Side Panels - Inner (Rear) (Halewood (UK))

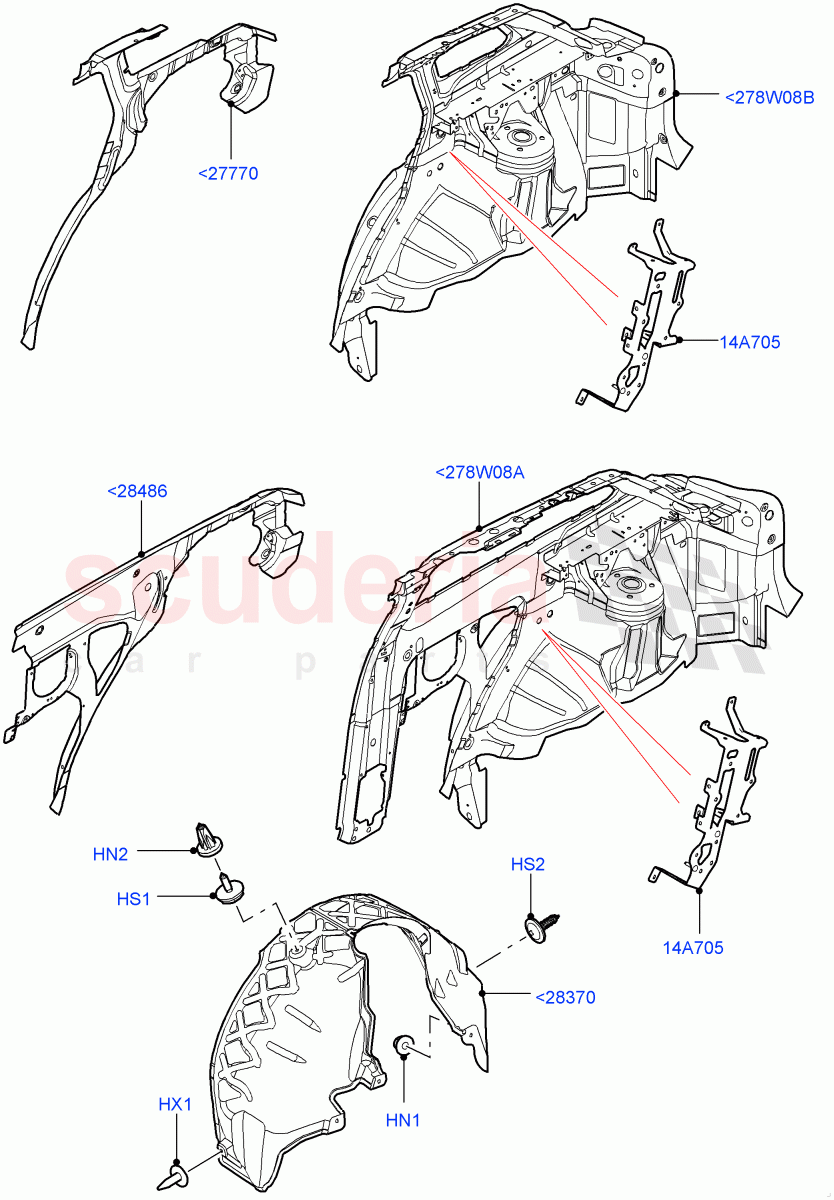

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYH500780	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500950	NUT - ADJUSTING	Enquire	To Order
	LR114151	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000890	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002162	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027603	REINFORCEMENT - REAR QUARTER PANEL	Enquire	To Order
	LR027604	REINFORCEMENT - REAR QUARTER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027401	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order
	LR027403	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order
	LR027402	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR027606	REINFORCEMENT - OUTER PANEL	Enquire	To Order
	LR027607	REINFORCEMENT - OUTER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083543	BRACKET - BODYSIDE TRIM TO WHLHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027598	PANEL - REAR QUARTER - INNER	Enquire	To Order
	LR027597	PANEL - REAR QUARTER - INNER	Enquire	To Order
	LR072706	PANEL - REAR QUARTER - INNER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR027595	PANEL - REAR QUARTER - INNER	Enquire	To Order
	LR027596	PANEL - REAR QUARTER - INNER	Enquire	To Order
	LR048693	PANEL - REAR QUARTER - INNER	Enquire	To Order

...and 5 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<278W08A	LR027598	PANEL - REAR QUARTER - INNER	LR027598 PANEL - REAR QUARTER - INNER 3 Door / RH / To: FH999999	-	1	Enquire
<278W08A	LR027597	PANEL - REAR QUARTER - INNER	LR027597 PANEL - REAR QUARTER - INNER 3 Door / LH / To: FH999999	-	1	Enquire
<278W08A	LR072706	PANEL - REAR QUARTER - INNER	LR072706 PANEL - REAR QUARTER - INNER 3 Door / RH / From: GH000001 / To: GH999999	-	1	Enquire
<278W08A	LR072714	PANEL - REAR QUARTER - INNER	LR072714 PANEL - REAR QUARTER - INNER 3 Door / LH / From: GH000001 / To: GH999999	-	1	Enquire
<278W08A	LR084652	PANEL - REAR QUARTER - INNER	LR084652 PANEL - REAR QUARTER - INNER 3 Door / RH / From: HH000001	-	1	Enquire
<278W08A	LR084653	PANEL - REAR QUARTER - INNER	LR084653 PANEL - REAR QUARTER - INNER 3 Door / LH / From: HH000001	-	1	Enquire
<278W08B	LR027595	PANEL - REAR QUARTER - INNER	LR027595 PANEL - REAR QUARTER - INNER 5 Door / RH / To: DH999999	-	1	Enquire
<278W08B	LR027596	PANEL - REAR QUARTER - INNER	LR027596 PANEL - REAR QUARTER - INNER 5 Door / LH / To: DH999999	-	1	Enquire
<278W08B	LR048693	PANEL - REAR QUARTER - INNER	LR048693 PANEL - REAR QUARTER - INNER 5 Door / RH / From: EH000001 / To: FH999999	-	1	Enquire
<278W08B	LR048695	PANEL - REAR QUARTER - INNER	LR048695 PANEL - REAR QUARTER - INNER 5 Door / LH / From: EH000001 / To: FH999999	-	1	Enquire
<278W08B	LR072705	PANEL - REAR QUARTER - INNER	LR072705 PANEL - REAR QUARTER - INNER 5 Door / RH / From: GH000001 / To: GH999999	-	1	Enquire
<278W08B	LR072713	PANEL - REAR QUARTER - INNER	LR072713 PANEL - REAR QUARTER - INNER 5 Door / LH / From: GH000001 / To: GH999999	-	1	Enquire
<278W08B	LR084650	PANEL - REAR QUARTER - INNER	LR084650 PANEL - REAR QUARTER - INNER 5 Door / RH / From: HH000001	-	1	Enquire
<278W08B	LR084651	PANEL - REAR QUARTER - INNER	LR084651 PANEL - REAR QUARTER - INNER 5 Door / LH / From: HH000001	-	1	Enquire
<27770	LR027603	REINFORCEMENT - REAR QUARTER PANEL	LR027603 REINFORCEMENT - REAR QUARTER PANEL 5 Door / RH	-	1	Enquire
<27770	LR027604	REINFORCEMENT - REAR QUARTER PANEL	LR027604 REINFORCEMENT - REAR QUARTER PANEL 5 Door / LH	-	1	Enquire
<28370	LR027401	SHIELD - SPLASH - WHEELHOUSE	LR027401 SHIELD - SPLASH - WHEELHOUSE 3 Door / RH / To: DH753726	-	1	Enquire
<28370	LR027403	SHIELD - SPLASH - WHEELHOUSE	LR027403 SHIELD - SPLASH - WHEELHOUSE 5 Door / RH / To: DH753726	-	1	Enquire
<28370	LR027402	SHIELD - SPLASH - WHEELHOUSE	LR027402 SHIELD - SPLASH - WHEELHOUSE 3 Door / LH / To: DH753726	-	1	Enquire
<28370	LR027404	SHIELD - SPLASH - WHEELHOUSE	LR027404 SHIELD - SPLASH - WHEELHOUSE 5 Door / LH / To: DH753726	-	1	Enquire
<28370	LR043956	SHIELD - SPLASH - WHEELHOUSE	LR043956 SHIELD - SPLASH - WHEELHOUSE 3 Door / RH / From: DH753727 / To: GH111838	-	1	Enquire
<28370	LR043958	SHIELD - SPLASH - WHEELHOUSE	LR043958 SHIELD - SPLASH - WHEELHOUSE 3 Door / LH / From: DH753727 / To: GH111838	-	1	Enquire
<28370	LR043957	SHIELD - SPLASH - WHEELHOUSE	LR043957 SHIELD - SPLASH - WHEELHOUSE 5 Door / RH / From: DH753727 / To: GH111838	-	1	Enquire
<28370	LR043959	SHIELD - SPLASH - WHEELHOUSE	LR043959 SHIELD - SPLASH - WHEELHOUSE 5 Door / LH / From: DH753727 / To: GH111838	-	1	Enquire
<28370	LR083864	SHIELD - SPLASH - WHEELHOUSE	LR083864 SHIELD - SPLASH - WHEELHOUSE 3 Door / RH / From: GH111839 / To: HH999999	-	1	Enquire
<28370	LR083865	SHIELD - SPLASH - WHEELHOUSE	LR083865 SHIELD - SPLASH - WHEELHOUSE 5 Door / RH / From: GH111839 / To: HH999999	-	1	Enquire
<28370	LR083866	SHIELD - SPLASH - WHEELHOUSE	LR083866 SHIELD - SPLASH - WHEELHOUSE 3 Door / LH / From: GH111839 / To: HH999999	-	1	Enquire
<28370	LR083867	SHIELD - SPLASH - WHEELHOUSE	LR083867 SHIELD - SPLASH - WHEELHOUSE 5 Door / LH / From: GH111839 / To: HH999999	-	1	Enquire
<28370	LR101948	SHIELD - SPLASH - WHEELHOUSE	LR101948 SHIELD - SPLASH - WHEELHOUSE 3 Door / RH / From: JH000001	-	1	Enquire
<28370	LR101949	SHIELD - SPLASH - WHEELHOUSE	LR101949 SHIELD - SPLASH - WHEELHOUSE 5 Door / RH / From: JH000001	-	1	Enquire
<28370	LR101950	SHIELD - SPLASH - WHEELHOUSE	LR101950 SHIELD - SPLASH - WHEELHOUSE 3 Door / LH / From: JH000001	-	1	Enquire
<28370	LR101951	SHIELD - SPLASH - WHEELHOUSE	LR101951 SHIELD - SPLASH - WHEELHOUSE 5 Door / LH / From: JH000001	-	1	Enquire
<28486	LR027606	REINFORCEMENT - OUTER PANEL	LR027606 REINFORCEMENT - OUTER PANEL 3 Door / RH	-	1	Enquire
<28486	LR027607	REINFORCEMENT - OUTER PANEL	LR027607 REINFORCEMENT - OUTER PANEL 3 Door / LH	-	1	Enquire
HN1	RYH500780	NUT - HEX.	RYH500780 NUT - HEX. (M6), M6, Plastic Nut	-	2	Enquire
HN2	RYH500950	NUT - ADJUSTING	RYH500950 NUT - ADJUSTING 4.8 X 8 X 8 X 0.7, Expanding Rivet, Includes Seal / To: JH306733	-	2	Enquire
HN2	LR114151	NUT	LR114151 NUT 5X8X8X0.7-1.3, Expanding Rivet / From: JH306734	-	2	Enquire
HS1	LR000890	SCREW AND WASHER	LR000890 SCREW AND WASHER 4.8 X 19MM, Screw And Washer	-	2	Enquire
HS2	LR002162	SCREW AND WASHER	LR002162 SCREW AND WASHER 4.8 x 20MM, Cross Recess Drive	-	1	Enquire
HX1	RYQ500070	PIN - RETAINING	RYQ500070 PIN - RETAINING 6.3 X 22MM, Push Pin	-	6	Enquire
14A705	LR083543	BRACKET - BODYSIDE TRIM TO WHLHOUSE	LR083543 BRACKET - BODYSIDE TRIM TO WHLHOUSE RH	-	1	Enquire
