Fuel Pump And Sender Unit (2.2L Cr Di 16V Diesel)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Fuel Pump And Sender Unit (2.2L CR DI 16V Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR026190 SENSOR - FUEL LEVEL Enquire To Order
LR026190 SENSOR - FUEL LEVEL Enquire To Order
LR032809 SENSOR - FUEL LEVEL Enquire To Order
Photo Part No Description Price (each) Stock
LR026191 SENDER - FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
LR026193 PUMP - FUEL Enquire To Order
View All

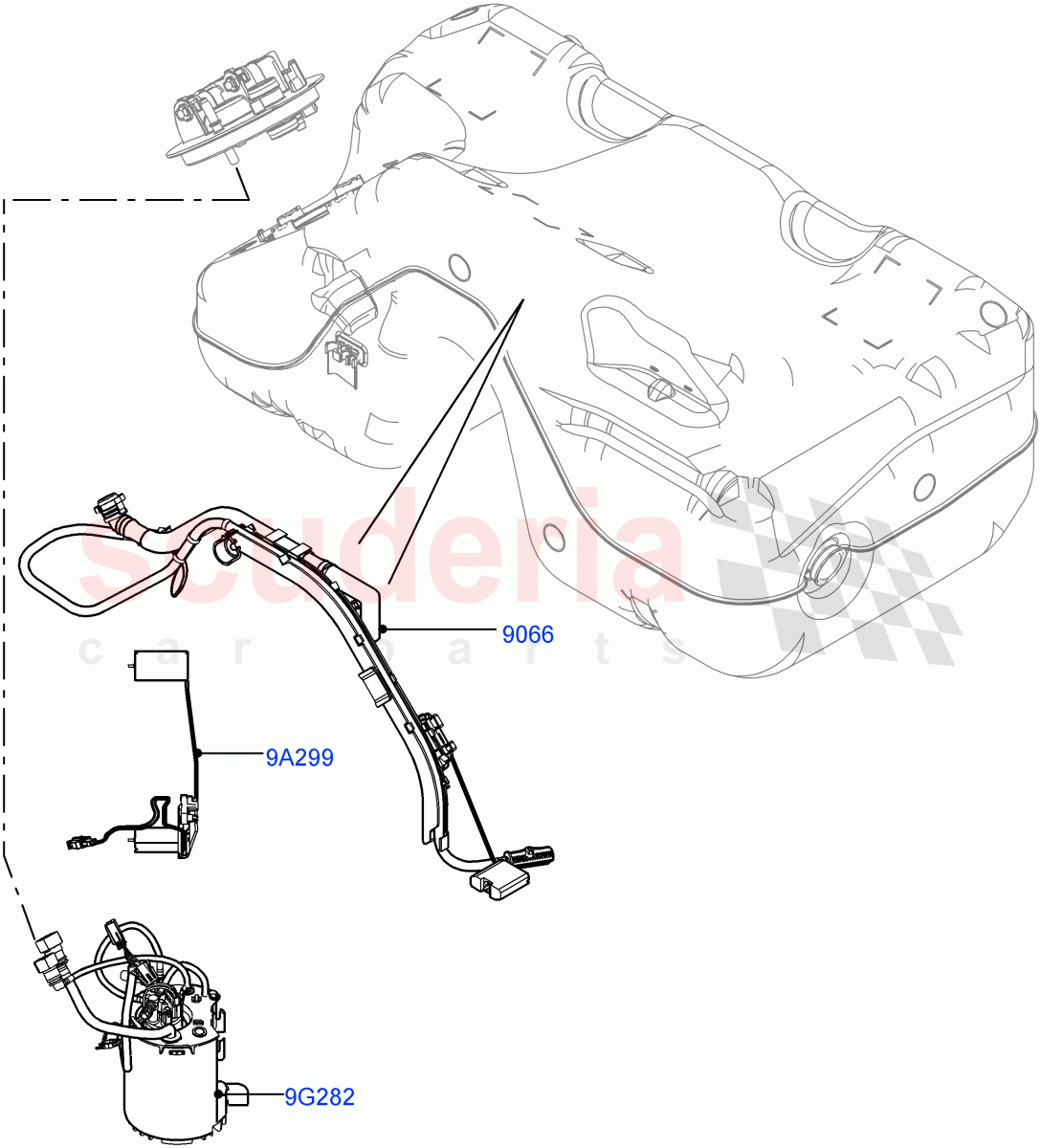

Fuel Pump And Sender Unit (2.2L CR DI 16V Diesel) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
9A299 LR026191
SENDER - FUEL TANK
RH 		- 1 Enquire
9G282 LR026193
PUMP - FUEL 		- 1 Enquire
9066 LR026190
SENSOR - FUEL LEVEL
LH, Includes Hose, With Bracket, With Fuel Sender / To: CH631089 		- 1 Enquire
9066 LR026190
SENSOR - FUEL LEVEL
Less Fuel Economy Pack / LH, Includes Hose, With Bracket, With Fuel Sender / From: CH631090 		- 1 Enquire
9066 LR032809
SENSOR - FUEL LEVEL
With Fuel Economy Pack / LH, Includes Hose, With Bracket, With Fuel Sender / From: CH631090 		- 1 Enquire
