Fuel Filter (2.2L Dohc Efi Tc Dw12, 2.2L Cr Di 16V Diesel)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Fuel Filter (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4469260 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR002859 BOLT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR002861 BOLT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR002845 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR002992 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR024832 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR001122 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR008986 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR001313 FILTER - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR001205 SHIELD - ALTERNATOR SPLASH Enquire To Order
Photo Part No Description Price (each) Stock
LR001314 BRACKET - FUEL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
LR006662 SHIELD - FUEL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
LR003625 BRACKET - FUEL FILTER Enquire To Order
LR033976 SHIELD - FUEL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
LR021621 SHIELD - FUEL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
LR002843 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR029269 SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
LR022350 TUBE - INJECTION PUMP LEAK-OFF Enquire To Order
Photo Part No Description Price (each) Stock
LR023064 TUBE - FUEL FILTER TO FUEL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR024609 TUBE - FUEL Enquire To Order
View All

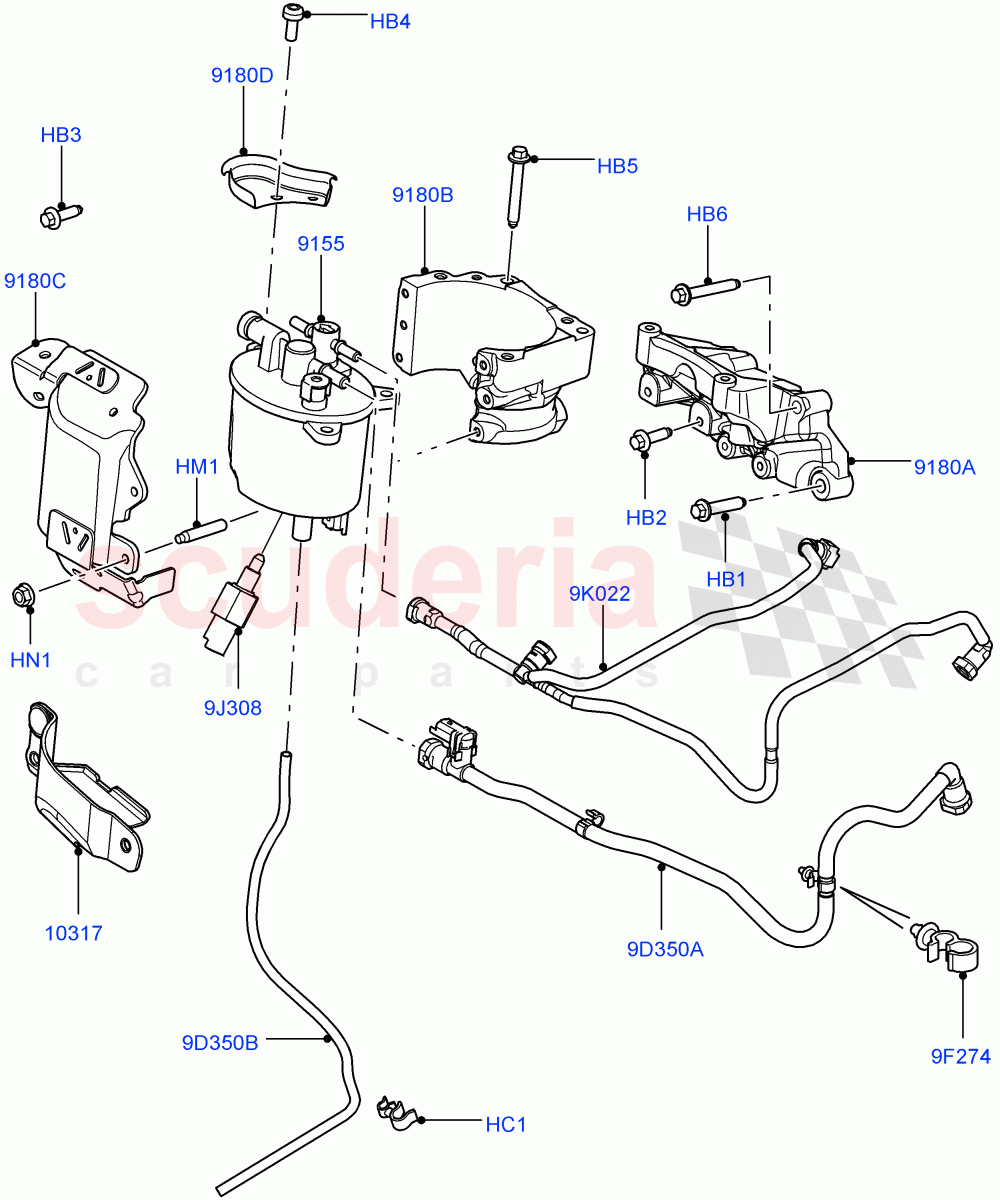

Fuel Filter (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 4469260
BOLT
M8 X 35MM 		- 2 Enquire
HB2 LR002859
BOLT - SPECIAL
Hex Head, M8 x 55MM 		- 2 Enquire
HB4 LR002861
BOLT - SPECIAL
M8 X 20MM 		- 3 Enquire
HB5 LR002845
STUD
M8 x 60MM 		- 2 Enquire
HB6 LR002992
STUD
M8 X 30MM 		- 2 Enquire
HC1 LR024832
CLIP
6-6.5 + 9.5-10.5 Pipe Swivel Plastic 		- 1 Enquire
HM1 LR001122
STUD
M6 x 25MM, Stud 		- 4 Enquire
HN1 LR008986
NUT
M6 		- 4 Enquire
9D350A LR023064
TUBE - FUEL FILTER TO FUEL PUMP
Includes Fuel Temperature Sensor 		- 1 Enquire
9D350B LR024609
TUBE - FUEL
Drain 		- 1 Enquire
9F274 LR002843
CLIP 		- 2 Enquire
9J308 LR029269
SENSOR
Euro Stage 4 Emissions / Sensor, Water In Fuel 		- 1 Enquire
9K022 LR022350
TUBE - INJECTION PUMP LEAK-OFF
Leak Off 		- 1 Enquire
9155 LR001313
FILTER - FUEL 		- 1 Enquire
9180A LR001314
BRACKET - FUEL FILTER 		- 1 Enquire
9180B LR006662
SHIELD - FUEL FILTER
Shield Assy 		- 1 Enquire
9180C LR003625
BRACKET - FUEL FILTER
Shield Assy / To: CH631089 		- 1 Enquire
9180C LR033976
SHIELD - FUEL FILTER
Shield Assy / From: CH631090 		- 1 Enquire
9180D LR021621
SHIELD - FUEL FILTER 		- 1 Enquire
10317 LR001205
SHIELD - ALTERNATOR SPLASH 		- 1 Enquire
