Fuel Injection Pump - Diesel (2.2L Dohc Efi Tc Dw12, 2.2L Cr Di 16V Diesel)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Fuel Injection Pump - Diesel (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR001080 BOLT $1.31 IN STOCK
LR043999 BOLT - HEX.HEAD $4.46 To Order
Photo Part No Description Price (each) Stock
LR039641 STUD $4.08 To Order
Photo Part No Description Price (each) Stock
LR002830 BOLT $83.07 To Order
Photo Part No Description Price (each) Stock
LR009028 GASKET - FUEL PUMP COVER $49.52 To Order
Photo Part No Description Price (each) Stock
LR022447 COVER - FUEL PUMP $41.06 To Order
Photo Part No Description Price (each) Stock
LR030432 PUMP - FUEL INJECTION $2,000.52 To Order
LR047217 PUMP - FUEL INJECTION $2,050.54 To Order
Photo Part No Description Price (each) Stock
LR093850 PUMP - FUEL INJECTION $999.61 To Order
View All

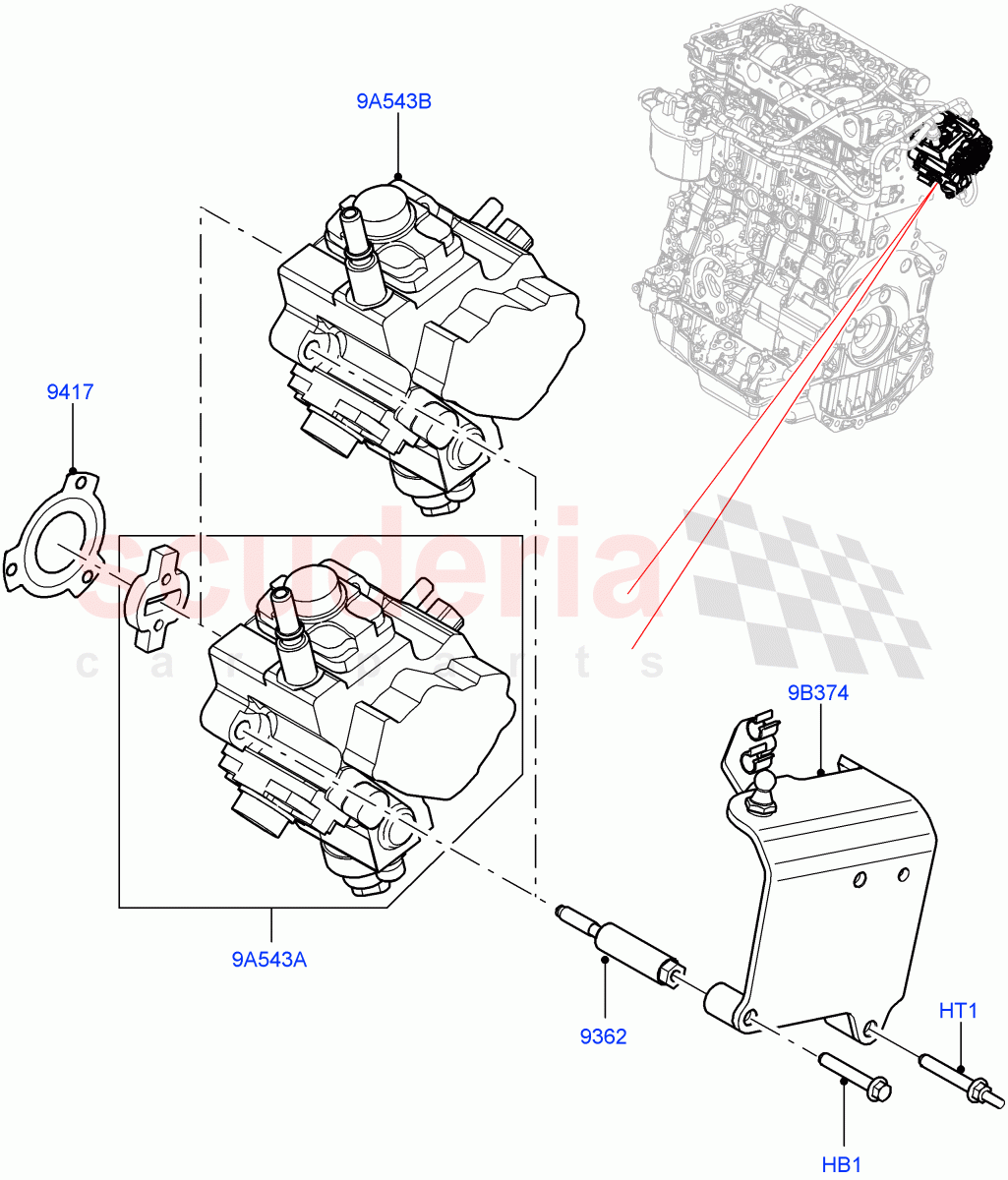

Fuel Injection Pump - Diesel (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR001080
BOLT
Hexagonal Head, M6 X 40MM / To: CH702769
IN STOCK 		$1.31 3
HB1 LR043999
BOLT - HEX.HEAD
M6 X 40MM / From: CH702770 		$4.46 3
HT1 LR039641
STUD
M6 X 14 + M6 X 40 / From: CH672644 		$4.08 1
9A543A LR030432
PUMP - FUEL INJECTION
Supplied With Fuel Pump Drive / To: DH337255 		$2,000.52 1
9A543A LR047217
PUMP - FUEL INJECTION
New Part-Please Check For Reman Version, Supplied With Fuel Pump Drive / From: DH337256 		$2,050.54 1
9A543B LR093850
PUMP - FUEL INJECTION
For UK and ROW markets except Russia, China, Brazil, Remanufactured Part, Supplied Without Fuel Pump Drive / From: DH337256 		$999.61 1
9B374 LR022447
COVER - FUEL PUMP 		$41.06 1
9362 LR002830
BOLT 		$83.07 3
9417 LR009028
GASKET - FUEL PUMP COVER 		$49.52 1
