Name: Fuel Injectors And Pipes (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel)
Rating: 5.0 (1 reviews)

Fuel Injectors And Pipes (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Fuel Injectors And Pipes (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel)

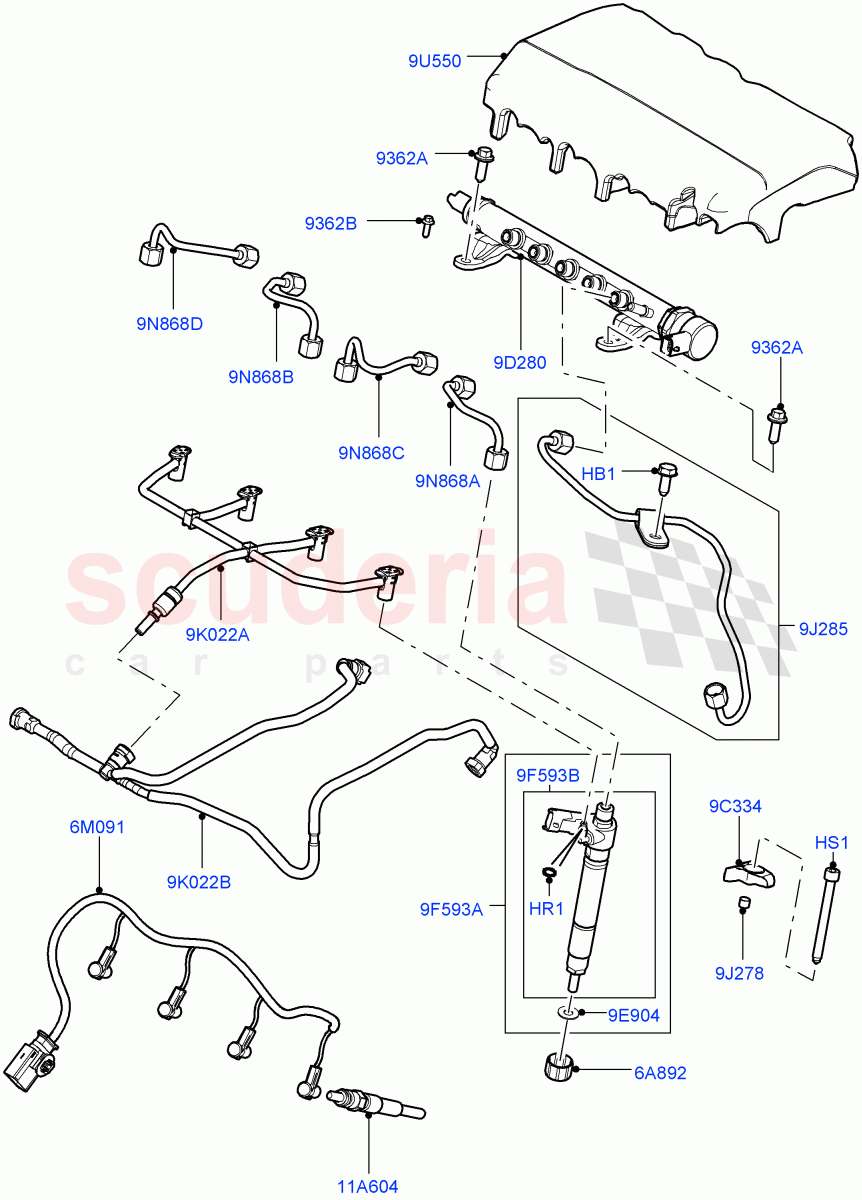

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000296	BOLT	$1.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054612	O-RING	$4.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR001323	SCREW - SPECIAL	$8.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001297	RETAINER - INJECTION VALVE	$3.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001303	WIRE - GLOW PLUG	$115.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002857	BOLT	$5.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001331	CLAMP - FUEL INJECTION	$64.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022334	MANIFOLD - FUEL SUPPLY	$531.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032155	SEAL - INJECTOR	$1.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002968	PIN - RETAINING	$8.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009014	TUBE - FUEL PUMP	$54.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022449	INSULATOR - FUEL SUPPLY	$50.22	To Order
	LR038763	INSULATOR - FUEL SUPPLY	$60.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022300	GLOW PLUG	$53.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022335	INJECTOR - FUEL	$810.97	To Order
	LR031849	INJECTOR - FUEL	$858.58	To Order
	LR056366	INJECTOR - FUEL	$786.51	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR021915	TUBE - FUEL RETURN	$77.38	To Order
	LR051528	TUBE - FUEL RETURN	$104.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR022350	TUBE - INJECTION PUMP LEAK-OFF	$85.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012751	PIPE - FUEL INJECTION	$39.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012752	PIPE - FUEL INJECTION	$41.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012753	PIPE - FUEL INJECTION	$41.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012754	PIPE - FUEL INJECTION	$39.39	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR000296	BOLT	LR000296 BOLT M6 x 30MM	$1.00	1
HR1	LR054612	O-RING IN STOCK	LR054612 O-RING Lower, O-Ring Seal For Fuel Return Tube IN STOCK	$4.66	4
HS1	LR001323	SCREW - SPECIAL	LR001323 SCREW - SPECIAL M8 X 82MM	$8.64	4
6A892	LR001297	RETAINER - INJECTION VALVE	LR001297 RETAINER - INJECTION VALVE	$3.08	4
6M091	LR001303	WIRE - GLOW PLUG	LR001303 WIRE - GLOW PLUG	$115.05	1
9C334	LR001331	CLAMP - FUEL INJECTION	LR001331 CLAMP - FUEL INJECTION	$64.29	4
9D280	LR022334	MANIFOLD - FUEL SUPPLY	LR022334 MANIFOLD - FUEL SUPPLY	$531.68	1
9E904	LR032155	SEAL - INJECTOR	LR032155 SEAL - INJECTOR To Fuel Injectors	$1.67	4
9F593A	LR022335	INJECTOR - FUEL	LR022335 INJECTOR - FUEL 9 Speed Auto AWD / With Washer / To: DH999999	$810.97	4
9F593A	LR031849	INJECTOR - FUEL	LR031849 INJECTOR - FUEL 6 Speed Manual Trans-JLR M66 2WD, Engine Power Source - 150PS/380NM / With Washer / To: DH999999	$858.58	4
9F593A	LR056366	INJECTOR - FUEL	LR056366 INJECTOR - FUEL 6 Speed Manual Trans M66 - AWD, Engine Power Source - 150PS/420NM / New Part-Please Check For Reman Version, With Washer / From: EH000001	$786.51	4
9F593A	LR056367	INJECTOR - FUEL	LR056367 INJECTOR - FUEL 6 Speed Manual Trans-JLR M66 2WD, Engine Power Source - 150PS/380NM / With Washer / From: EH000001	$844.12	4
9F593A	LR065508	INJECTOR - FUEL	LR065508 INJECTOR - FUEL Engine Power Source - 150PS/420NM / For UK and ROW markets except Russia, China, Brazil, Remanufactured Part, With Washer / From: EH000001	$514.05	4
9J278	LR002968	PIN - RETAINING	LR002968 PIN - RETAINING Pin	$8.12	4
9J285	LR009014	TUBE - FUEL PUMP	LR009014 TUBE - FUEL PUMP	$54.86	1
9K022A	LR021915	TUBE - FUEL RETURN	LR021915 TUBE - FUEL RETURN Return / To: CH639805	$77.38	1
9K022A	LR051528	TUBE - FUEL RETURN IN STOCK	LR051528 TUBE - FUEL RETURN Return / From: CH639806 IN STOCK	$104.33	1
9K022B	LR022350	TUBE - INJECTION PUMP LEAK-OFF	LR022350 TUBE - INJECTION PUMP LEAK-OFF Leak Off	$85.00	1
9N868A	LR012751	PIPE - FUEL INJECTION	LR012751 PIPE - FUEL INJECTION Cylinder No.1	$39.39	1
9N868B	LR012752	PIPE - FUEL INJECTION	LR012752 PIPE - FUEL INJECTION Cylinder No.2	$41.92	1
9N868C	LR012753	PIPE - FUEL INJECTION	LR012753 PIPE - FUEL INJECTION Cylinder No.3	$41.94	1
9N868D	LR012754	PIPE - FUEL INJECTION	LR012754 PIPE - FUEL INJECTION Cylinder No.4	$39.39	1
9U550	LR022449	INSULATOR - FUEL SUPPLY	LR022449 INSULATOR - FUEL SUPPLY To: CH999999	$50.22	1
9U550	LR038763	INSULATOR - FUEL SUPPLY	LR038763 INSULATOR - FUEL SUPPLY From: DH000001	$60.24	1
11A604	LR022300	GLOW PLUG	LR022300 GLOW PLUG	$53.86	4
9362A	LR002857	BOLT	LR002857 BOLT M8 X 30MM	$5.47	2
