Name: Intercooler/Air Ducts And Hoses (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V) FROMGT000001)
Rating: 5.0 (1 reviews)

Intercooler/Air Ducts And Hoses (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Intercooler/Air Ducts And Hoses (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V)...

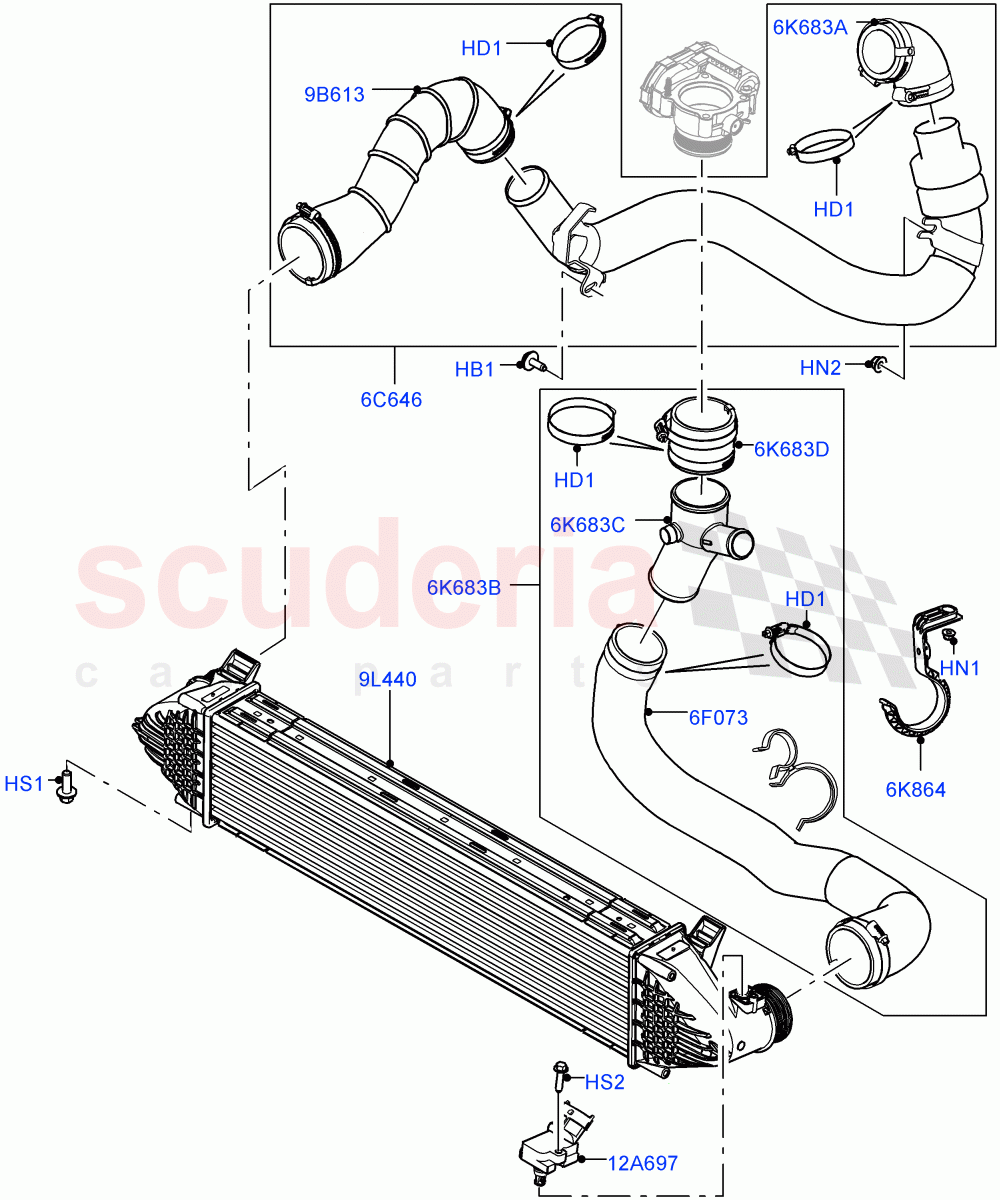

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG501000	BOLT AND WASHER - HEX.HEAD	$1.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024636	CLAMP - HOSE	$14.90	To Order

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	$0.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR000479	BOLT - HEX.HEAD	$0.77	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500810	SCREW	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049696	DUCT - AIR	$626.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050248	TUBE - OUTLET	$123.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR056322	BRACKET - CHARGE AIR COOLER	$17.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024516	TUBE - WATER INLET	$149.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031467	INTERCOOLER	$459.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021587	SENSOR - AIR TEMPERATURE & PRESSURE	$62.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050236	HOSE - INTERCOOLER	$132.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063273	CONNECTION - AIR INLET	$245.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024518	HOSE - INTERCOOLER	$67.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR063268	HOSE - CONNECTING	$56.88	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG501000	BOLT AND WASHER - HEX.HEAD	RYG501000 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M8 X 21MM / From: GT000001	$1.12	1
HD1	LR024636	CLAMP - HOSE	LR024636 CLAMP - HOSE 50-70MM / From: GT000001	$14.90	1
HN1	FX106046	NUT - FLANGED IN STOCK	FX106046 NUT - FLANGED Hexagonal Head, M6 / From: GT000001 IN STOCK	$0.61	1
HN2	FX108046	NUT - LOCKING IN STOCK	FX108046 NUT - LOCKING M8 / From: GT000001 IN STOCK	$0.41	1
HS1	LR000479	BOLT - HEX.HEAD	LR000479 BOLT - HEX.HEAD M6X16 / From: GT000001	$0.77	2
HS2	RYP500810	SCREW	RYP500810 SCREW Hexagonal Head, M5 x 20MM, MAP Sensor / From: GT000001	$0.59	1
6C646	LR049696	DUCT - AIR	LR049696 DUCT - AIR Turbocharger To Intercooler / From: GT000001	$626.31	1
6F073	LR050248	TUBE - OUTLET IN STOCK	LR050248 TUBE - OUTLET From: GT000001 IN STOCK	$123.32	1
6K683A	LR050236	HOSE - INTERCOOLER	LR050236 HOSE - INTERCOOLER Turbocharger Outlet / From: GT000001	$132.38	1
6K683B	LR063273	CONNECTION - AIR INLET	LR063273 CONNECTION - AIR INLET Intercooler To Throttle Body / From: GT000001	$245.34	1
6K683C	LR024518	HOSE - INTERCOOLER IN STOCK	LR024518 HOSE - INTERCOOLER Air Tube Connector, Large - To Resonator, Small - To Purge Valve / From: GT000001 IN STOCK	$67.34	1
6K683D	LR063268	HOSE - CONNECTING	LR063268 HOSE - CONNECTING Connection, Upper / From: GT000001	$56.88	1
6K864	LR056322	BRACKET - CHARGE AIR COOLER	LR056322 BRACKET - CHARGE AIR COOLER From: GT000001	$17.26	1
9B613	LR024516	TUBE - WATER INLET	LR024516 TUBE - WATER INLET Intercooler Inlet / From: GT000001	$149.60	1
9L440	LR031467	INTERCOOLER	LR031467 INTERCOOLER From: GT000001	$459.42	1
12A697	LR021587	SENSOR - AIR TEMPERATURE & PRESSURE	LR021587 SENSOR - AIR TEMPERATURE & PRESSURE Sensor - Air Temperature And Pressure / From: GT000001	$62.25	1
