Name: Intercooler/Air Ducts And Hoses (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK)) ((V) TODH999999)
Rating: 4.3 (1 reviews)

Intercooler/Air Ducts And Hoses (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK)) ((V) TODH999999) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Intercooler/Air Ducts And Hoses (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK)) ((V) TODH999999)

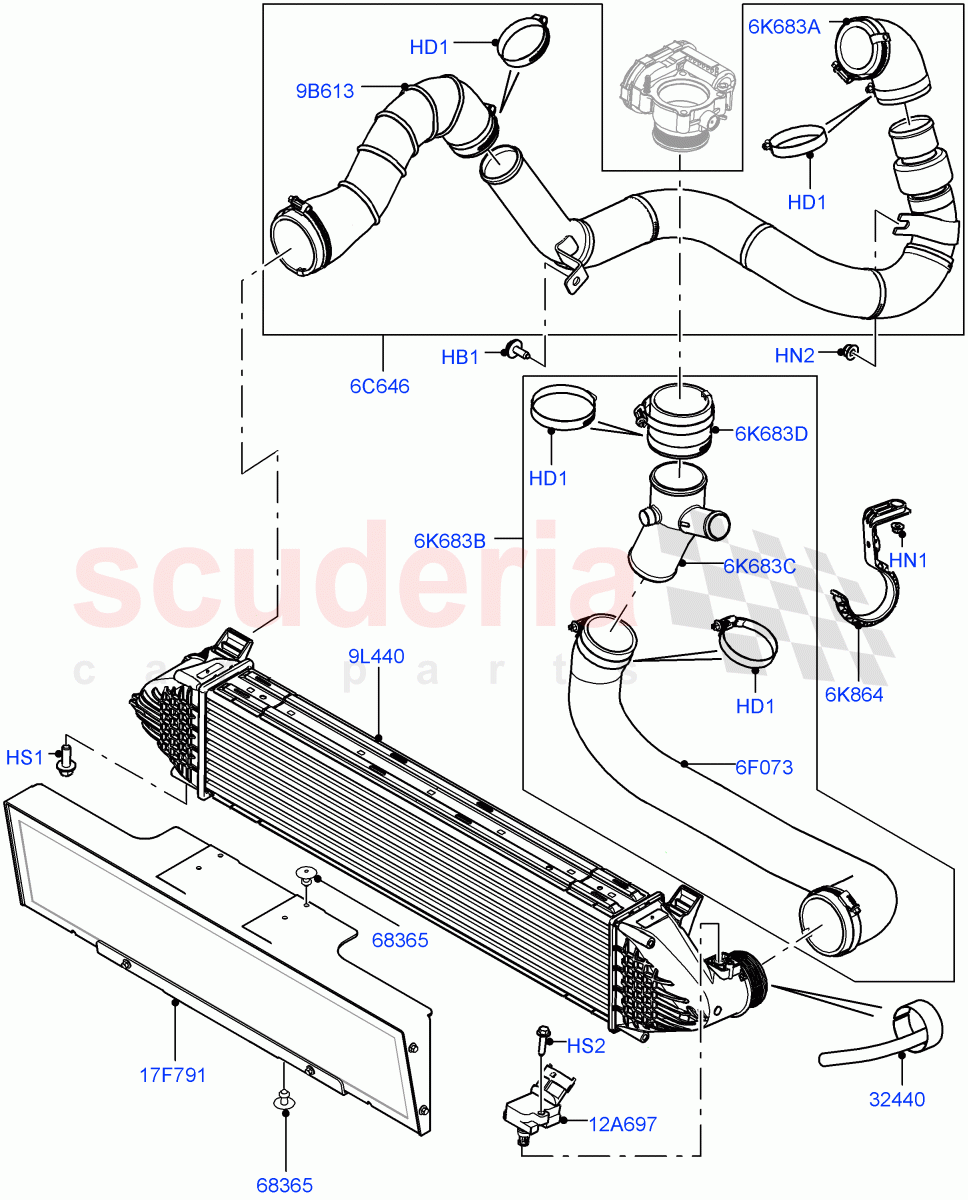

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG501000	BOLT AND WASHER - HEX.HEAD	$1.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024636	CLAMP - HOSE	$14.90	To Order

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	$0.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR000479	BOLT - HEX.HEAD	$0.77	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500810	SCREW	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048122	PIPE - AIR INLET	$13.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049458	RIVET - BLIND	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024303	DUCT - AIR	$240.74	To Order
	LR038316	DUCT - AIR	$276.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024517	TUBE - OUTLET	$134.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024306	BRACKET - CHARGE AIR COOLER	$4.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024516	TUBE - WATER INLET	$149.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031467	INTERCOOLER	$459.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021587	SENSOR - AIR TEMPERATURE & PRESSURE	$62.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048135	MESH - RADIATOR GRILLE	$156.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024633	HOSE - INTERCOOLER	$45.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024305	HOSE - AIR INLET	$167.23	To Order
	LR032381	HOSE - AIR INLET	$179.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031917	HOSE - AIR INLET	$14.97	To Order
	LR024518	HOSE - INTERCOOLER	$67.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR024519	HOSE - CONNECTING	$37.10	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG501000	BOLT AND WASHER - HEX.HEAD	RYG501000 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M8 X 21MM	$1.12	1
HD1	LR024636	CLAMP - HOSE	LR024636 CLAMP - HOSE 50-70MM	$14.90	4
HN1	FX106046	NUT - FLANGED IN STOCK	FX106046 NUT - FLANGED Hexagonal Head, M6 IN STOCK	$0.61	1
HN2	FX108046	NUT - LOCKING IN STOCK	FX108046 NUT - LOCKING M8 IN STOCK	$0.41	1
HS1	LR000479	BOLT - HEX.HEAD	LR000479 BOLT - HEX.HEAD M6X16	$0.77	2
HS2	RYP500810	SCREW	RYP500810 SCREW Hexagonal Head, M5 x 20MM, MAP Sensor	$0.59	1
6C646	LR024303	DUCT - AIR	LR024303 DUCT - AIR Turbocharger To Intercooler / To: CH675361	$240.74	1
6C646	LR038316	DUCT - AIR	LR038316 DUCT - AIR Turbocharger To Intercooler / From: CH675362	$276.16	1
6F073	LR024517	TUBE - OUTLET	LR024517 TUBE - OUTLET	$134.28	1
6K683A	LR024633	HOSE - INTERCOOLER	LR024633 HOSE - INTERCOOLER Turbocharger Outlet	$45.60	1
6K683B	LR024305	HOSE - AIR INLET	LR024305 HOSE - AIR INLET (-)"CHN" / Intercooler To Throttle Body	$167.23	1
6K683B	LR032381	HOSE - AIR INLET	LR032381 HOSE - AIR INLET (+)"CHN" / Intercooler To Throttle Body	$179.13	1
6K683C	LR031917	HOSE - AIR INLET	LR031917 HOSE - AIR INLET (+)"CHN" / Air Tube Connector, Small - To Purge Valve	$14.97	1
6K683C	LR024518	HOSE - INTERCOOLER IN STOCK	LR024518 HOSE - INTERCOOLER (-)"CHN" / Air Tube Connector, Large - To Resonator, Small - To Purge Valve IN STOCK	$67.34	1
6K683D	LR024519	HOSE - CONNECTING	LR024519 HOSE - CONNECTING Connection, Upper	$37.10	1
6K864	LR024306	BRACKET - CHARGE AIR COOLER	LR024306 BRACKET - CHARGE AIR COOLER	$4.70	1
9B613	LR024516	TUBE - WATER INLET	LR024516 TUBE - WATER INLET	$149.60	1
9L440	LR031467	INTERCOOLER	LR031467 INTERCOOLER	$459.42	1
12A697	LR021587	SENSOR - AIR TEMPERATURE & PRESSURE	LR021587 SENSOR - AIR TEMPERATURE & PRESSURE Sensor - Air Temperature And Pressure	$62.25	1
17F791	LR048135	MESH - RADIATOR GRILLE	LR048135 MESH - RADIATOR GRILLE (+)"CDN/MEX/USA"	$156.35	1
32440	LR048122	PIPE - AIR INLET	LR048122 PIPE - AIR INLET (+)"CDN/MEX/USA"	$13.57	1
68365	LR049458	RIVET - BLIND	LR049458 RIVET - BLIND	$0.99	8
