Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Intercooler/Air Ducts And Hoses (2.0L 16V TIVCT T/C Gen2 Petrol, 2.0L 16V TIVCT T/C 240PS Petrol)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG501000 BOLT AND WASHER - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR024636 CLAMP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
FX108046 NUT - LOCKING Enquire To Order
Photo Part No Description Price (each) Stock
LR000479 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
RYP500810 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR048122 PIPE - AIR INLET Enquire To Order
Photo Part No Description Price (each) Stock
LR049458 RIVET - BLIND Enquire To Order
Photo Part No Description Price (each) Stock
LR049696 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR050248 TUBE - OUTLET Enquire To Order
Photo Part No Description Price (each) Stock
LR024306 BRACKET - CHARGE AIR COOLER Enquire To Order
LR056322 BRACKET - CHARGE AIR COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR024516 TUBE - WATER INLET Enquire To Order
Photo Part No Description Price (each) Stock
LR031467 INTERCOOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR021587 SENSOR - AIR TEMPERATURE & PRESSURE Enquire To Order
Photo Part No Description Price (each) Stock
LR048135 MESH - RADIATOR GRILLE Enquire To Order
LR067362 MESH - RADIATOR GRILLE Enquire To Order
LR072623 MESH - RADIATOR GRILLE Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR050236 HOSE - INTERCOOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR049730 CONNECTION - AIR INLET Enquire To Order
LR049727 CONNECTION - AIR INLET Enquire To Order
LR063273 CONNECTION - AIR INLET Enquire To Order
Photo Part No Description Price (each) Stock
LR031917 HOSE - AIR INLET Enquire To Order
LR024518 HOSE - INTERCOOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR024519 HOSE - CONNECTING Enquire To Order
LR063268 HOSE - CONNECTING Enquire To Order
View All

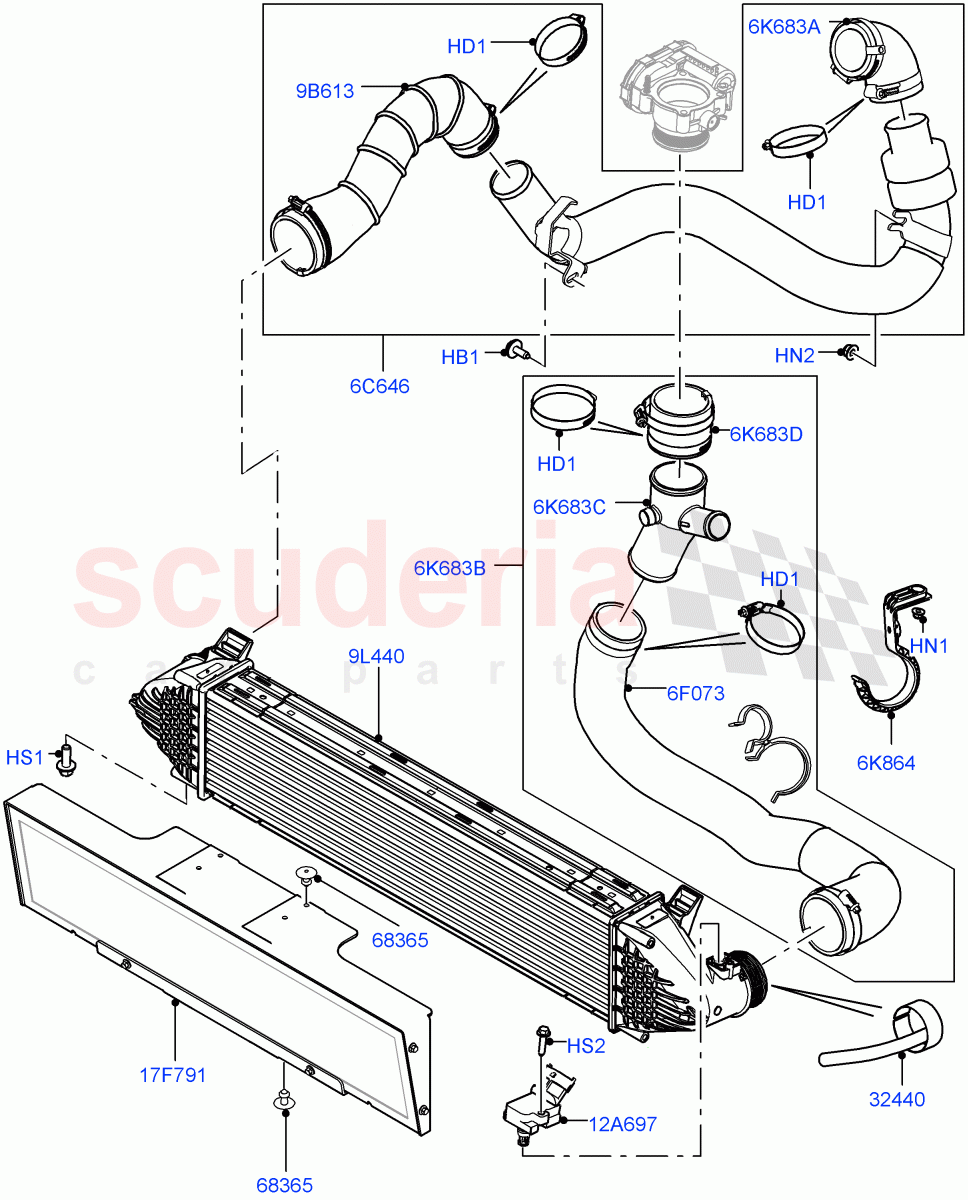

Intercooler/Air Ducts And Hoses (2.0L 16V TIVCT T/C Gen2 Petrol, 2.0L 16V TIVCT T/C 240PS Petrol) ((V) FROMEH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG501000
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M8 X 21MM / From: EH000001 		- 1 Enquire
HD1 LR024636
CLAMP - HOSE
50-70MM / From: EH000001 		- 4 Enquire
HN1 FX106046
NUT - FLANGED
Hexagonal Head, M6 / From: EH000001 		- 1 Enquire
HN2 FX108046
NUT - LOCKING
M8 / From: EH000001 		- 1 Enquire
HS1 LR000479
BOLT - HEX.HEAD
M6X16 / From: EH000001 		- 2 Enquire
HS2 RYP500810
SCREW
Hexagonal Head, M5 x 20MM, MAP Sensor / From: EH000001 		- 1 Enquire
6C646 LR049696
DUCT - AIR
Turbocharger To Intercooler / From: EH000001 		- 1 Enquire
6F073 LR050248
TUBE - OUTLET
From: EH000001 		- 1 Enquire
6K683A LR050236
HOSE - INTERCOOLER
Turbocharger Outlet / From: EH000001 		- 1 Enquire
6K683B LR049730
CONNECTION - AIR INLET
(+)"CHN", 2.0L 16V TIVCT T/C 240PS Petrol / Intercooler To Throttle Body / From: EH000001 		- 1 Enquire
6K683B LR049727
CONNECTION - AIR INLET
(-)"CHN", 2.0L 16V TIVCT T/C 240PS Petrol / Intercooler To Throttle Body / From: EH000001 / To: EH938242 		- 1 Enquire
6K683B LR063273
CONNECTION - AIR INLET
(-)"CHN", 2.0L 16V TIVCT T/C 240PS Petrol / Intercooler To Throttle Body / From: EH938243 		- 1 Enquire
6K683C LR031917
HOSE - AIR INLET
(+)"CHN", 2.0L 16V TIVCT T/C 240PS Petrol / Air Tube Connector, Small - To Purge Valve / From: EH000001 		- 1 Enquire
6K683C LR024518
HOSE - INTERCOOLER
2.0L 16V TIVCT T/C Gen2 Petrol / Air Tube Connector, Large - To Resonator, Small - To Purge Valve / From: EH000001 		- 1 Enquire
6K683D LR024519
HOSE - CONNECTING
Connection, Upper / From: EH000001 / To: EH938242 		- 1 Enquire
6K683D LR063268
HOSE - CONNECTING
Connection, Upper / From: EH938243 		- 1 Enquire
6K864 LR024306
BRACKET - CHARGE AIR COOLER
From: EH000001 / To: EH867831 		- 1 Enquire
6K864 LR056322
BRACKET - CHARGE AIR COOLER
From: EH867832 		- 1 Enquire
9B613 LR024516
TUBE - WATER INLET
Intercooler Inlet / From: EH000001 		- 1 Enquire
9L440 LR031467
INTERCOOLER
From: EH000001 		- 1 Enquire
12A697 LR021587
SENSOR - AIR TEMPERATURE & PRESSURE
Sensor - Air Temperature And Pressure / From: EH000001 		- 1 Enquire
17F791 LR048135
MESH - RADIATOR GRILLE
2.0L 16V TIVCT T/C Gen2 Petrol / From: EH000001 / To: FH981273 		- 1 Enquire
17F791 LR067362
MESH - RADIATOR GRILLE
2.0L 16V TIVCT T/C Gen2 Petrol / From: FH981274 / To: FH999999 		- 1 Enquire
17F791 LR072623
MESH - RADIATOR GRILLE
2.0L 16V TIVCT T/C Gen2 Petrol / From: GH000001 / To: GH163926 		- 1 Enquire
17F791 LR089147
MESH - RADIATOR GRILLE
2.0L 16V TIVCT T/C Gen2 Petrol / From: GH163927 		- 1 Enquire
17F791 LR089147
MESH - RADIATOR GRILLE
2.0L 16V TIVCT T/C 240PS Petrol, With Standard Engine Cooling System / From: EH000001 		- 1 Enquire
32440 LR048122
PIPE - AIR INLET
2.0L 16V TIVCT T/C Gen2 Petrol / From: EH000001 		- 1 Enquire
68365 LR049458
RIVET - BLIND
2.0L 16V TIVCT T/C Gen2 Petrol / From: EH000001 		- 8 Enquire
