Find Your Part

Air Cleaner (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Air Cleaner (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001)

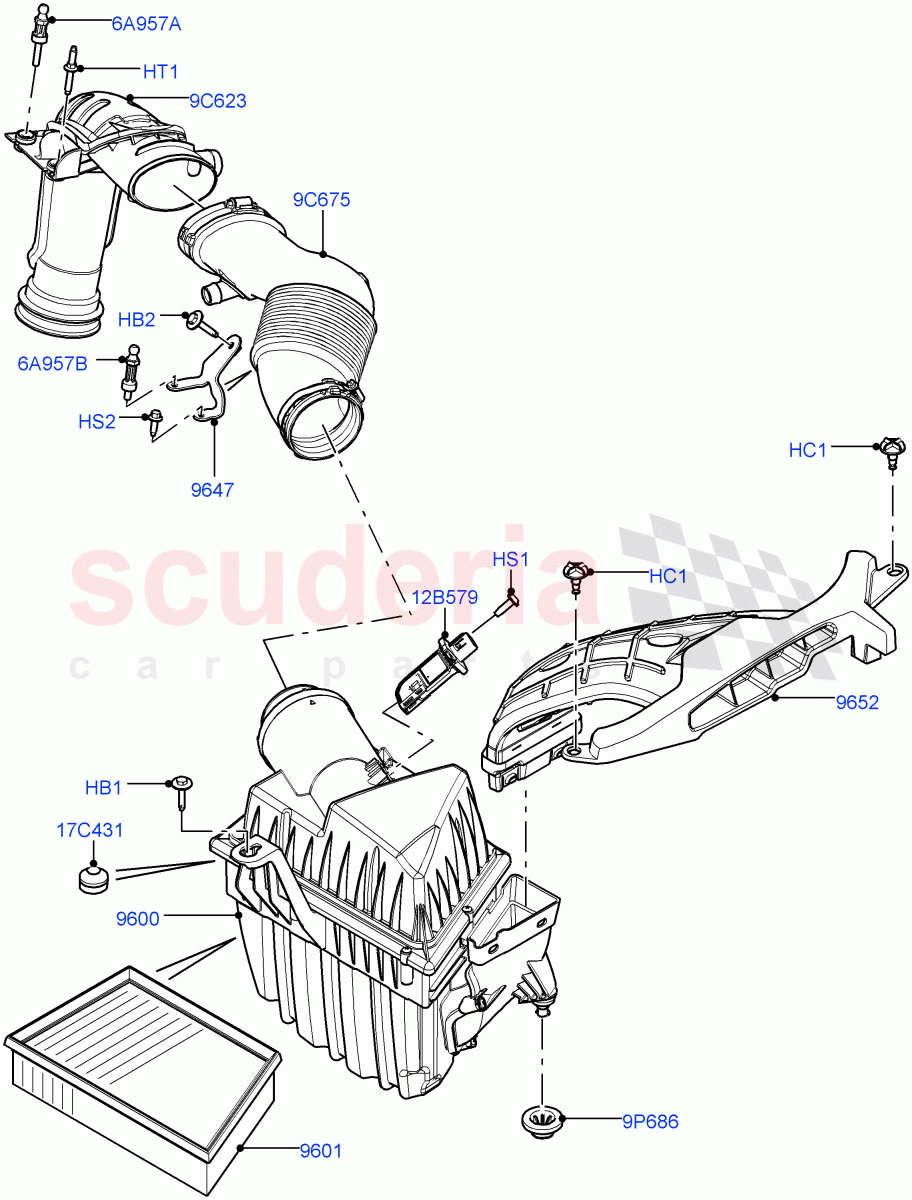

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR030371	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500910	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024316	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000044	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500960	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028234	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053014	CLEANER - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161844	FILTER - AIR CLEANER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049995	BRACKET - AIR DUCT SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024311	TUBE - AIR CLEANER INTAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR056238	DUCT - AIR INTAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024307	TUBE - AIR INTAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000753	INSULATOR - AIR CLEANER HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019830	SENSOR - MASS AIR FLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060069	INSULATOR - AIR CLEANER HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025918	STUD - ENGINE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025916	STUD - ENGINE COVER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR030371	BOLT	LR030371 BOLT Bolt And Washer, Hexagonal Head, M6 x 25MM / From: EG000001	-	1	Enquire
HB2	RYG500910	BOLT	RYG500910 BOLT Bolt And Washer, Hexagonal Head, M6 x 35MM / From: EG000001	-	1	Enquire
HC1	LR024316	PIN	LR024316 PIN Rivet Blind 9.4 X 13 / From: EG000001	-	2	Enquire
HS1	LR000044	SCREW	LR000044 SCREW 4 X 12MM / From: EG000001	-	2	Enquire
HS2	RYP500960	SCREW	RYP500960 SCREW M6 X 16MM, Torx / From: EG000001	-	1	Enquire
HT1	LR028234	STUD	LR028234 STUD M6 X 25 + M6 X 16 / From: EG000001	-	1	Enquire
6A957A	LR025918	STUD - ENGINE COVER	LR025918 STUD - ENGINE COVER RH, Upper Engine Cover Support / From: EG000001	-	1	Enquire
6A957B	LR025916	STUD - ENGINE COVER	LR025916 STUD - ENGINE COVER LH, Upper Engine Cover Support / From: EG000001	-	1	Enquire
9C623	LR056238	DUCT - AIR INTAKE	LR056238 DUCT - AIR INTAKE Turbocharger Inlet / From: EG000001	-	1	Enquire
9C675	LR024307	TUBE - AIR INTAKE	LR024307 TUBE - AIR INTAKE Air Cleaner To Turbocharger / From: EG000001	-	1	Enquire
9P686	LR000753	INSULATOR - AIR CLEANER HOUSING	LR000753 INSULATOR - AIR CLEANER HOUSING Air Cleaner Box Holdown / From: EG000001	-	2	Enquire
12B579	LR019830	SENSOR - MASS AIR FLOW	LR019830 SENSOR - MASS AIR FLOW Mass Air Flow Sensor / From: EG000001	-	1	Enquire
17C431	LR060069	INSULATOR - AIR CLEANER HOUSING	LR060069 INSULATOR - AIR CLEANER HOUSING Air Cleaner Box Holdown / From: EG000001	-	1	Enquire
9600	LR053014	CLEANER - AIR	LR053014 CLEANER - AIR From: EG000001	-	1	Enquire
9601	LR161844	FILTER - AIR CLEANER	LR161844 FILTER - AIR CLEANER From: EG000001	-	1	Enquire
9647	LR049995	BRACKET - AIR DUCT SUPPORT	LR049995 BRACKET - AIR DUCT SUPPORT Air Cleaner To Turbocharger / From: EG000001	-	1	Enquire
9652	LR024311	TUBE - AIR CLEANER INTAKE	LR024311 TUBE - AIR CLEANER INTAKE From: EG000001	-	1	Enquire
