Fuel Tank & Related Parts (2.0L I4 Mid Dohc Aj200 Petrol, Changsu (China))

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Fuel Tank & Related Parts (2.0L I4 Mid DOHC AJ200 Petrol, Changsu (China))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR088949 BOLT $3.78 To Order
Photo Part No Description Price (each) Stock
LR006655 CLIP $1.18 To Order
Photo Part No Description Price (each) Stock
LR003643 NUT - SPECIAL $0.58 To Order
Photo Part No Description Price (each) Stock
RYQ500170 RETAINER - RIVET $0.97 To Order
Photo Part No Description Price (each) Stock
LR094171 TANK - FUEL $824.71 To Order
LR094172 TANK - FUEL $1,143.68 To Order
Photo Part No Description Price (each) Stock
LR181511 CAP - FUEL TANK FILLER $37.63 To Order
LR092779 CAP - FUEL TANK FILLER $37.82 To Order
Photo Part No Description Price (each) Stock
LR045112 PIPE - FUEL FILLER $135.43 To Order
LR079221 PIPE - FUEL FILLER $242.19 To Order
Photo Part No Description Price (each) Stock
LR028399 HOSE - FILLER PIPE $33.25 To Order
Photo Part No Description Price (each) Stock
LR094170 STRAP - FUEL TANK $61.69 IN STOCK
Photo Part No Description Price (each) Stock
LR052183 HOSE - VENT $50.68 To Order
Photo Part No Description Price (each) Stock
LR025816 FOAM PAD - ENERGY ABSORBING $53.39 To Order
Photo Part No Description Price (each) Stock
LR094505 HEAT SHIELD - FUEL TANK $40.63 To Order
Photo Part No Description Price (each) Stock
LR081543 SHIELD - FUEL TANK $172.04 To Order
View All

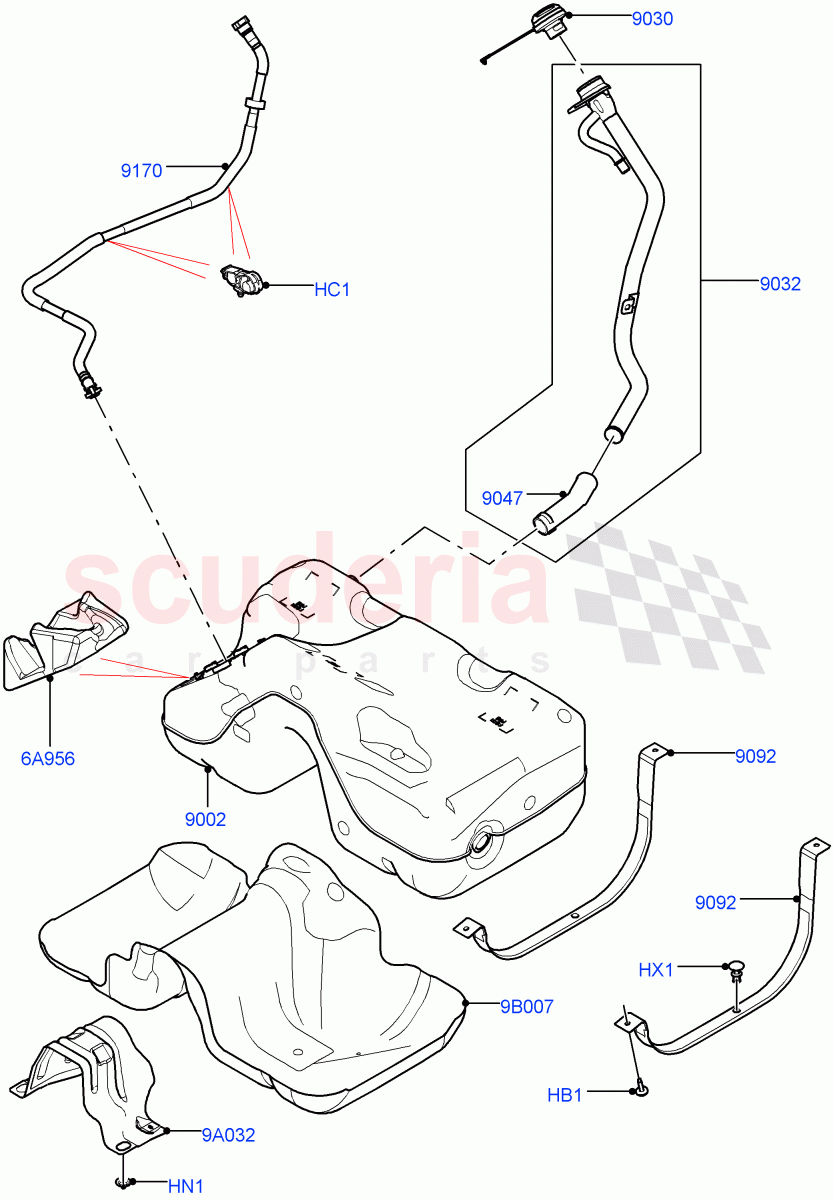

Fuel Tank & Related Parts (2.0L I4 Mid DOHC AJ200 Petrol, Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR088949
BOLT
Fuel Tank Strap, M6 X 40MM / From: HG161788 		$3.78 4
HC1 LR006655
CLIP
Fuel Tank Filler Neck - Unleaded / 14+12-20.5 X 7.5 X 1-3 / From: HG161788 		$1.18 3
HN1 LR003643
NUT - SPECIAL
M5 / From: HG161788 		$0.58 2
HX1 RYQ500170
RETAINER - RIVET
Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: HG161788 		$0.97 2
6A956 LR025816
FOAM PAD - ENERGY ABSORBING
From: HG161788 		$53.39 1
9A032 LR094505
HEAT SHIELD - FUEL TANK
Front / From: HG161788 		$40.63 1
9B007 LR081543
SHIELD - FUEL TANK
Main / From: HG161788 		$172.04 1
9002 LR094171
TANK - FUEL
Pet Tank With Leak Det - Lrg Filter / From: HG161788 		$824.71 1
9002 LR094172
TANK - FUEL
Pet Tank W/O Leak Det - Std Filter / From: HG161788 		$1,143.68 1
9030 LR181511
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Unleaded / From: HG161788 		$37.63 1
9030 LR092779
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - DMTL / From: HG161788 		$37.82 1
9032 LR045112
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Unleaded / From: HG161788 		$135.43 1
9032 LR079221
PIPE - FUEL FILLER
Fuel Tank Filler Neck - DMTL / From: HG161788 		$242.19 1
9047 LR028399
HOSE - FILLER PIPE
From: HG161788 		$33.25 1
9092 LR094170
STRAP - FUEL TANK
From: HG161788
IN STOCK 		$61.69 2
9170 LR052183
HOSE - VENT
Fuel Tank Filler Neck - Unleaded / From: HG161788 		$50.68 1
