Name: Fuel Lines (2.0L I4 Mid DOHC AJ200 Petrol, Itatiaia (Brazil)) ((V) FROMJT000001)
Rating: 4.6 (1 reviews)

Fuel Lines (2.0L I4 Mid DOHC AJ200 Petrol, Itatiaia (Brazil)) ((V) FROMJT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Fuel Lines (2.0L I4 Mid DOHC AJ200 Petrol, Itatiaia (Brazil)) ((V) FROMJT000001)

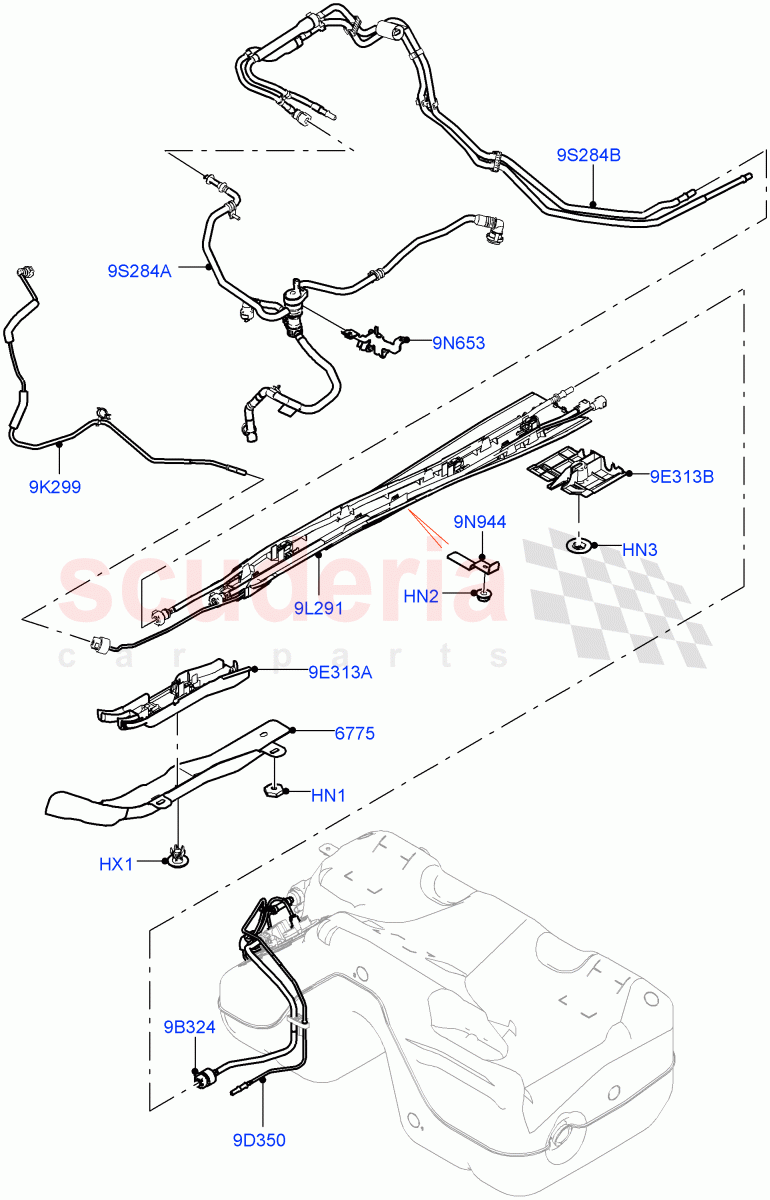

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000893	NUT	$1.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR003643	NUT - SPECIAL	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005896	RETAINER - RIVET	$1.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR072003	SHIELD - FUEL TUBES	$17.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075634	TUBE - FUEL	$43.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075644	TUBE - FUEL FEED	$138.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075641	PIPE - FUEL	$54.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094173	TUBE - FUEL SUPPLY	$157.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107666	BRACKET - FUEL TUBE SUPPORT	$34.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005291	BRACKET - FUEL LINES	$42.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005634	SHIELD - FUEL TUBES	$5.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003826	SHIELD - FUEL TUBES	$7.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094430	TUBE - FUEL SUPPLY AND VAPOUR	$174.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094174	TUBE - FUEL SUPPLY AND VAPOUR	$193.71	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	LR000893	NUT IN STOCK	LR000893 NUT "Spring", Front, Shield / From: JT000001 IN STOCK	$1.00	2
HN2	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6, Support Bracket / From: JT000001 IN STOCK	$1.45	1
HN3	LR003643	NUT - SPECIAL	LR003643 NUT - SPECIAL M5, Rear, Shield / From: JT000001	$0.58	1
HX1	LR005896	RETAINER - RIVET IN STOCK	LR005896 RETAINER - RIVET 10 X 4 - 5, Front, Shield / From: JT000001 IN STOCK	$1.40	2
9B324	LR075634	TUBE - FUEL	LR075634 TUBE - FUEL Rear / From: JT000001	$43.84	1
9D350	LR075644	TUBE - FUEL FEED	LR075644 TUBE - FUEL FEED Rear / From: JT000001	$138.13	1
9E313A	LR005634	SHIELD - FUEL TUBES	LR005634 SHIELD - FUEL TUBES Front / From: JT000001	$5.90	1
9E313B	LR003826	SHIELD - FUEL TUBES	LR003826 SHIELD - FUEL TUBES Rear / From: JT000001	$7.43	1
9K299	LR075641	PIPE - FUEL	LR075641 PIPE - FUEL Front / From: JT000001	$54.19	1
9L291	LR094173	TUBE - FUEL SUPPLY	LR094173 TUBE - FUEL SUPPLY Tube Assembly / From: JT000001	$157.49	1
9N653	LR107666	BRACKET - FUEL TUBE SUPPORT	LR107666 BRACKET - FUEL TUBE SUPPORT From: JT000001	$34.36	1
9N944	LR005291	BRACKET - FUEL LINES	LR005291 BRACKET - FUEL LINES Support Bracket / From: JT000001	$42.45	1
9S284A	LR094430	TUBE - FUEL SUPPLY AND VAPOUR	LR094430 TUBE - FUEL SUPPLY AND VAPOUR Front / From: JT000001	$174.59	1
9S284B	LR094174	TUBE - FUEL SUPPLY AND VAPOUR	LR094174 TUBE - FUEL SUPPLY AND VAPOUR Rear / From: JT000001	$193.71	1
6775	LR072003	SHIELD - FUEL TUBES	LR072003 SHIELD - FUEL TUBES Front / From: JT000001	$17.87	1
