Name: Fuel Lines (2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 High DOHC AJ200 Petrol) ((V) FROMKH000001)
Rating: 4.5 (1 reviews)

Fuel Lines (2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 High DOHC AJ200 Petrol) ((V) FROMKH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Fuel Lines (2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 High DOHC AJ200 Petrol) ((V) FROMKH000001)

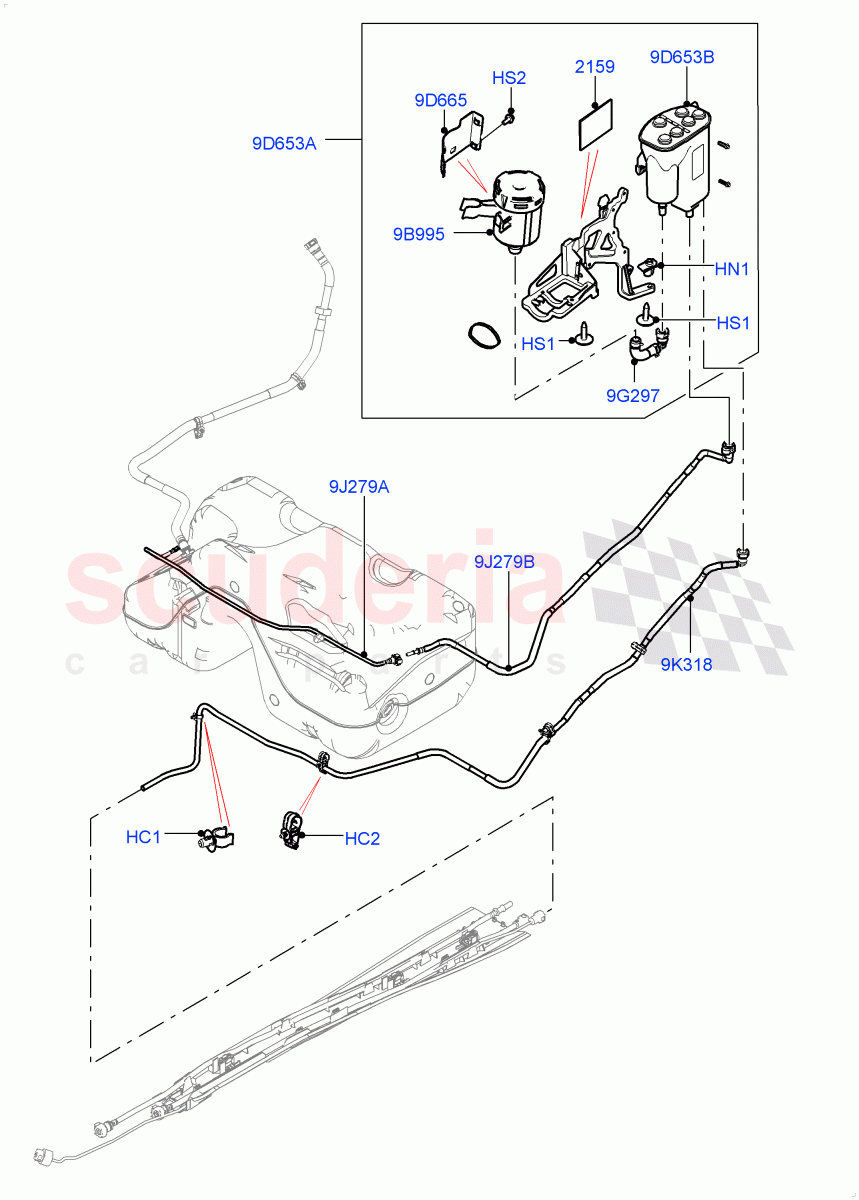

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR006655	CLIP	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004596	CLIP	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	$1.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	SDG500030	SCREW	$1.11	To Order

Photo	Part No	Description	Price (each)	Stock
	FS105126	SCREW	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048459	PAD - FOAM	$18.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027066	FILTER - FUEL	$87.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113606	BRACKET	$19.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091260	FILTER - FUEL	$46.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027877	TUBE - FUEL VAPOUR	$79.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113607	CANNISTER - FUEL VAPOUR STORE	$490.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027061	RESERVOIR - FUEL VAPOUR SYSTEM	$243.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027879	TUBE - VENTILATION	$30.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117632	TUBE - VENTILATION	$37.89	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR006655	CLIP	LR006655 CLIP 14+12-20.5 X 7.5 X 1-3 / From: KH000001	$1.18	7
HC2	LR004596	CLIP	LR004596 CLIP 12 x 7.8X.8/4, Plastic / From: KH000001	$1.62	1
HN1	LR000053	NUT - FLANGED IN STOCK	LR000053 NUT - FLANGED M6 / From: KH000001 IN STOCK	$1.57	1
HS1	SDG500030	SCREW	SDG500030 SCREW M6 x 27MM, Screw And Washer / From: KH000001	$1.11	2
HS2	FS105126	SCREW	FS105126 SCREW M5 X 12MM / From: KH000001	$0.55	2
9B995	LR027066	FILTER - FUEL	LR027066 FILTER - FUEL Charcoal Cannister / From: KH000001	$87.66	1
9D653A	LR113607	CANNISTER - FUEL VAPOUR STORE	LR113607 CANNISTER - FUEL VAPOUR STORE Charcoal Cannister, With Bracket / From: KH000001	$490.16	1
9D653B	LR027061	RESERVOIR - FUEL VAPOUR SYSTEM	LR027061 RESERVOIR - FUEL VAPOUR SYSTEM Charcoal Cannister / From: KH000001	$243.00	1
9D665	LR113606	BRACKET	LR113606 BRACKET Filter / From: KH000001	$19.64	1
9G297	LR091260	FILTER - FUEL	LR091260 FILTER - FUEL Charcoal Cannister / From: KH000001	$46.10	1
9J279A	LR027879	TUBE - VENTILATION	LR027879 TUBE - VENTILATION Centre, Purge Line From Fuel Tank To Charcoal Canister / From: KH000001	$30.44	1
9J279B	LR117632	TUBE - VENTILATION	LR117632 TUBE - VENTILATION Inlet Tube, Purge Line From Fuel Tank To Charcoal Canister / From: KH000001	$37.89	1
9K318	LR027877	TUBE - FUEL VAPOUR	LR027877 TUBE - FUEL VAPOUR Fuel Vapor Cannister Purge - Outlet / From: KH000001	$79.84	1
2159	LR048459	PAD - FOAM	LR048459 PAD - FOAM Charcoal Cannister / From: KH000001	$18.30	1
