Name: Fuel Lines (Rear) (2 Door Convertible, 2.0L I4 High DOHC AJ200 Petrol, Fuel Tank Filler Neck - DMTL, 2.0L I4 Mid DOHC AJ200 Petrol) ((V) FROMJH000001)
Rating: 5.0 (1 reviews)

Fuel Lines (Rear) (2 Door Convertible, 2.0L I4 High DOHC AJ200 Petrol, Fuel Tank Filler Neck - DMTL, 2.0L I4 Mid DOHC AJ200 Petrol) ((V) FROMJH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Fuel Lines (Rear) (2 Door Convertible, 2.0L I4 High DOHC AJ200 Petrol, Fuel Tank Filler Neck -...

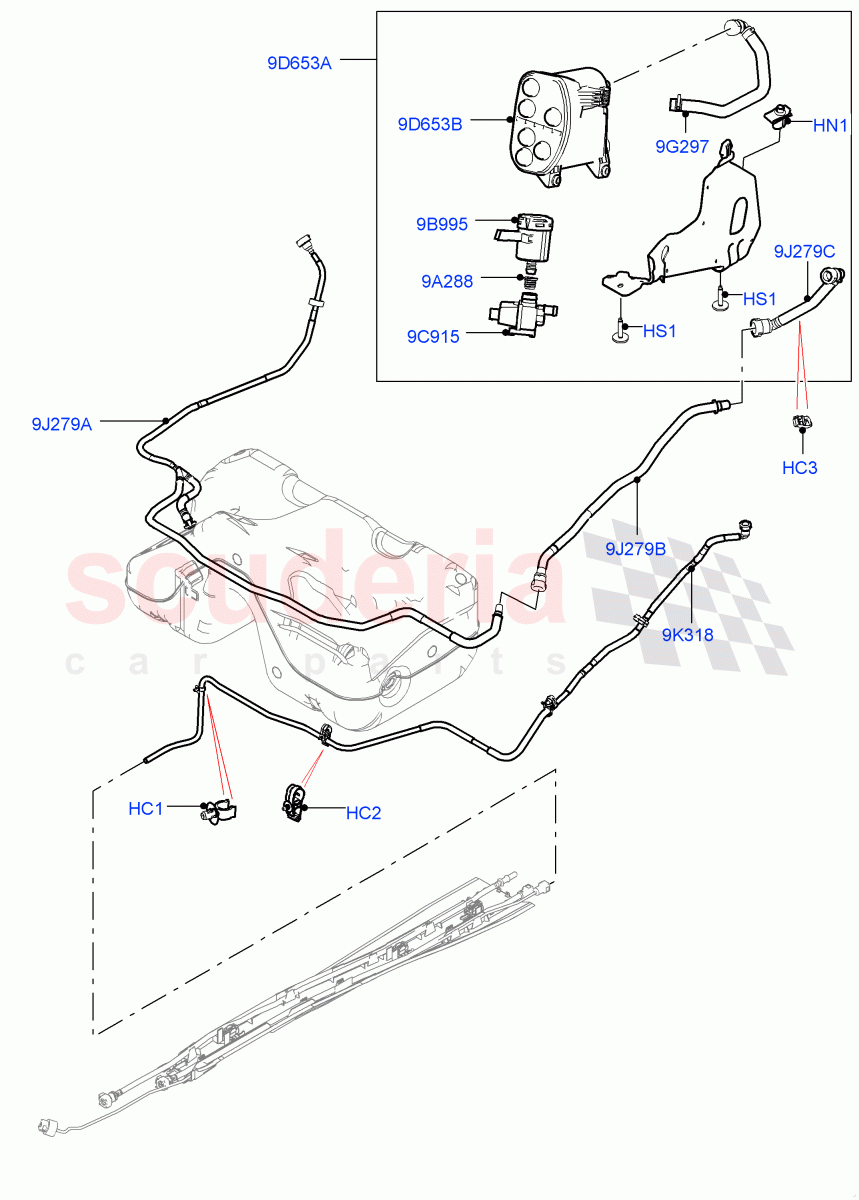

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR006655	CLIP	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004596	CLIP	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060351	CLIP - HOSE	$4.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	$1.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003198	INSULATOR - CHARCOAL CANISTER	$7.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027066	FILTER - FUEL	$87.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR174757	VALVE - CONTROL	$187.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070983	TUBE - FUEL VAPOUR	$42.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027877	TUBE - FUEL VAPOUR	$79.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070984	CANNISTER - FUEL VAPOUR STORE	$467.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027061	RESERVOIR - FUEL VAPOUR SYSTEM	$243.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094140	HOSE - VENT	$68.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070980	TUBE - VENTILATION	$105.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070981	TUBE - VENTILATION	$50.35	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR006655	CLIP	LR006655 CLIP 14+12-20.5 X 7.5 X 1-3 / From: JH000001	$1.18	7
HC2	LR004596	CLIP	LR004596 CLIP 12 x 7.8X.8/4, Plastic / From: JH000001	$1.62	1
HC3	LR060351	CLIP - HOSE	LR060351 CLIP - HOSE From: JH000001	$4.25	1
HN1	LR000053	NUT - FLANGED IN STOCK	LR000053 NUT - FLANGED M6 / From: JH000001 IN STOCK	$1.57	1
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30 / From: JH000001	$4.03	4
9A288	LR003198	INSULATOR - CHARCOAL CANISTER	LR003198 INSULATOR - CHARCOAL CANISTER Charcoal Cannister / From: JH000001	$7.47	1
9B995	LR027066	FILTER - FUEL	LR027066 FILTER - FUEL Charcoal Cannister / From: JH000001	$87.66	1
9C915	LR174757	VALVE - CONTROL	LR174757 VALVE - CONTROL Charcoal Cannister / From: JH000001	$187.80	1
9D653A	LR070984	CANNISTER - FUEL VAPOUR STORE	LR070984 CANNISTER - FUEL VAPOUR STORE Charcoal Cannister, With Bracket / From: JH000001	$467.01	1
9D653B	LR027061	RESERVOIR - FUEL VAPOUR SYSTEM	LR027061 RESERVOIR - FUEL VAPOUR SYSTEM Charcoal Cannister / From: JH000001	$243.00	1
9G297	LR070983	TUBE - FUEL VAPOUR	LR070983 TUBE - FUEL VAPOUR Charcoal Cannister / From: JH000001	$42.86	1
9J279A	LR094140	HOSE - VENT	LR094140 HOSE - VENT Vapour Line / From: JH000001	$68.72	1
9J279B	LR070980	TUBE - VENTILATION	LR070980 TUBE - VENTILATION Purge Line From Fuel Tank To Charcoal Canister / From: JH000001	$105.42	1
9J279C	LR070981	TUBE - VENTILATION	LR070981 TUBE - VENTILATION Charcoal Cannister / From: JH000001	$50.35	1
9K318	LR027877	TUBE - FUEL VAPOUR	LR027877 TUBE - FUEL VAPOUR Fuel Vapor Cannister Purge - Outlet / From: JH000001	$79.84	1
