Turbocharger (Lubrication And Cooling) (2.0L I4 Dsl High Dohc Aj200, Itatiaia (Brazil)) ((V)...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Turbocharger (Lubrication And Cooling) (2.0L I4 DSL HIGH DOHC AJ200, Itatiaia (Brazil)) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR073688 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR073687 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR073686 SCREW Enquire To Order
LR073686 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073671 WASHER - COPPER Enquire To Order
Photo Part No Description Price (each) Stock
LR094519 HOSE - OIL RETURN Enquire To Order
Photo Part No Description Price (each) Stock
LR094530 HOSE - OIL RETURN Enquire To Order
Photo Part No Description Price (each) Stock
LR094529 PIPE - OIL FEED Enquire To Order
Photo Part No Description Price (each) Stock
LR106368 PIPE - OIL FEED Enquire To Order
Photo Part No Description Price (each) Stock
LR094520 HOSE - INTERCOOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR094525 CONNECTION - WATER Enquire To Order
View All

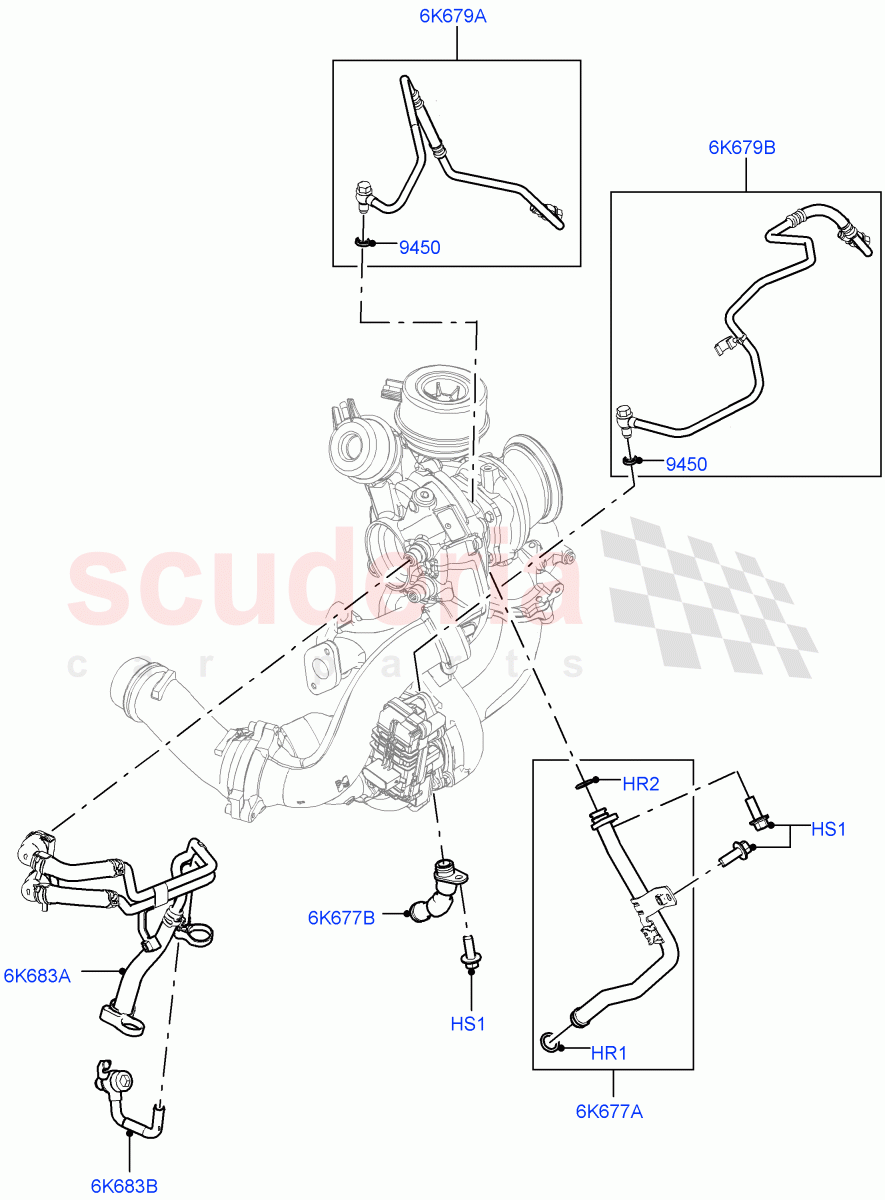

Turbocharger (Lubrication And Cooling) (2.0L I4 DSL HIGH DOHC AJ200, Itatiaia (Brazil)) ((V) FROMJT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR073688
O-RING
15 X 3MM, Lower / From: JT000001 		- 1 Enquire
HR2 LR073687
O-RING
14.3 x 2.4, Upper / From: JT000001 		- 1 Enquire
HS1 LR073686
SCREW
Drain, M6 X 16MM / From: JT000001 		- 2 Enquire
HS1 LR073686
SCREW
Bracket, M6 X 16MM / From: JT000001 		- 1 Enquire
6K677A LR094519
HOSE - OIL RETURN
Cylinder Block, Low Pressure Turbocharger / From: JT000001 		- 1 Enquire
6K677B LR094530
HOSE - OIL RETURN
Cylinder Block, High Pressure Turbocharger / From: JT000001 		- 1 Enquire
6K679A LR094529
PIPE - OIL FEED
Low Pressure Turbocharger / From: JT000001 		- 1 Enquire
6K679B LR106368
PIPE - OIL FEED
High Pressure Turbocharger / From: JT000001 		- 1 Enquire
6K683A LR094520
HOSE - INTERCOOLER
Hose Water Inlet To Turbocharger, Hose Water Outlet From Turbocharger, Low Pressure Turbocharger / From: JT000001 		- 1 Enquire
6K683B LR094525
CONNECTION - WATER
Hose Water Outlet From Turbocharger / From: JT000001 		- 1 Enquire
9450 LR073671
WASHER - COPPER
Banjo Washer, Cooling For Turbocharger, Requires 2 Pcs Per Banjo-Bolt / From: JT000001 		- 4 Enquire
