Turbocharger (2.0L I4 DSL MID DOHC AJ200, Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Turbocharger (2.0L I4 DSL MID DOHC AJ200, Halewood (UK))

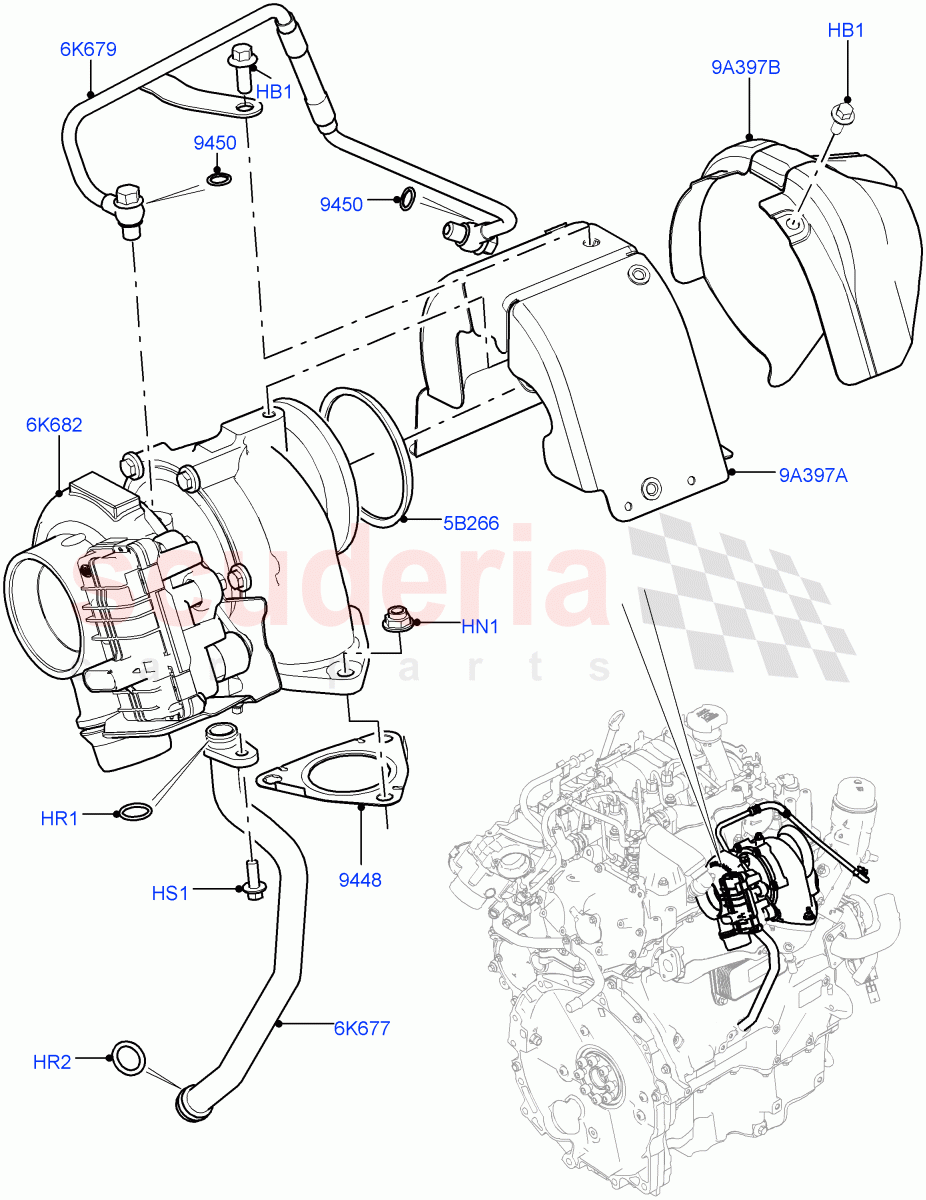

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR071777	BOLT - HEX.HEAD	Enquire	To Order
	LR078918	BOLT - HEX. HEAD - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073725	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073687	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073688	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073686	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073723	GASKET - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073671	WASHER - COPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072251	GASKET - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073681	PIPE - OIL DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073682	PIPE - OIL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073722	TURBOCHARGER	Enquire	To Order
	LR083483	TURBOCHARGER	Enquire	To Order
	LR094424	TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073656	HEAT SHIELD - TURBOCHARGER	Enquire	To Order
	LR125348	HEAT SHIELD - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071807	HEAT SHIELD - TURBOCHARGER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR071777	BOLT - HEX.HEAD	LR071777 BOLT - HEX.HEAD M6 X 14MM, Shield / From: GH000001 / To: GH999999	-	2	Enquire
HB1	LR078918	BOLT - HEX. HEAD - FLANGED	LR078918 BOLT - HEX. HEAD - FLANGED M6 X 14MM, Shield / From: HH000001	-	2	Enquire
HN1	LR073725	NUT - HEX.	LR073725 NUT - HEX. M8 / From: GH000001	-	3	Enquire
HR1	LR073687	O-RING	LR073687 O-RING 14.3 x 2.4, Turbocharger, Upper / From: GH000001	-	1	Enquire
HR2	LR073688	O-RING	LR073688 O-RING 15 X 3MM, Lower / From: GH000001	-	1	Enquire
HS1	LR073686	SCREW	LR073686 SCREW Drain, M6 X 16MM / From: GH000001	-	1	Enquire
5B266	LR072251	GASKET - TURBOCHARGER	LR072251 GASKET - TURBOCHARGER 101 mm / From: GH000001	-	1	Enquire
6K677	LR073681	PIPE - OIL DRAIN	LR073681 PIPE - OIL DRAIN From: GH000001	-	1	Enquire
6K679	LR073682	PIPE - OIL FEED	LR073682 PIPE - OIL FEED From: GH000001	-	1	Enquire
6K682	LR073722	TURBOCHARGER	LR073722 TURBOCHARGER From: GH000001 / To: GH090046	-	1	Enquire
6K682	LR083483	TURBOCHARGER	LR083483 TURBOCHARGER From: GH090047 / To: HH194696	-	1	Enquire
6K682	LR094424	TURBOCHARGER	LR094424 TURBOCHARGER From: HH194697	-	1	Enquire
9A397A	LR073656	HEAT SHIELD - TURBOCHARGER	LR073656 HEAT SHIELD - TURBOCHARGER From: GH000001 / To: KH337249	-	1	Enquire
9A397A	LR125348	HEAT SHIELD - TURBOCHARGER	LR125348 HEAT SHIELD - TURBOCHARGER From: KH337250	-	1	Enquire
9A397B	LR071807	HEAT SHIELD - TURBOCHARGER	LR071807 HEAT SHIELD - TURBOCHARGER From: GH000001	-	1	Enquire
9448	LR073723	GASKET - EXHAUST MANIFOLD	LR073723 GASKET - EXHAUST MANIFOLD Turbocharger / From: GH000001	-	1	Enquire
9450	LR073671	WASHER - COPPER	LR073671 WASHER - COPPER Banjo Washer, Requires 2 Pcs Per Banjo-Bolt / From: GH000001	-	4	Enquire
