Name: Turbocharger (Lubrication And Cooling) (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMJH000001)
Rating: 4.1 (1 reviews)

Turbocharger (Lubrication And Cooling) (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMJH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Turbocharger (Lubrication And Cooling) (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMJH000001)

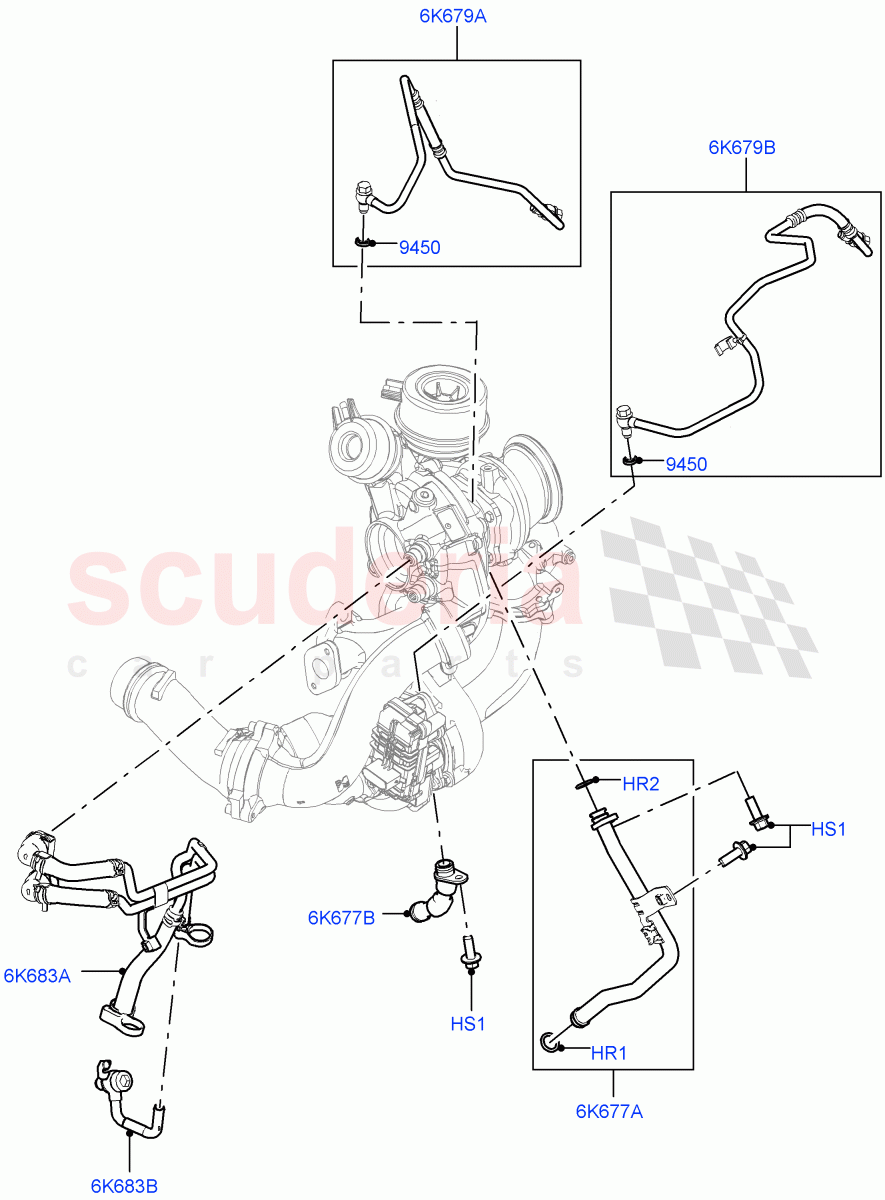

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073688	O-RING	$3.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073687	O-RING	$28.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073686	SCREW	$2.38	To Order
	LR073686	SCREW	$2.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073671	WASHER - COPPER	$4.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR094519	HOSE - OIL RETURN	$43.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094530	HOSE - OIL RETURN	$57.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094529	PIPE - OIL FEED	$61.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094521	PIPE - OIL FEED	$68.20	To Order
	LR106368	PIPE - OIL FEED	$59.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094520	HOSE - INTERCOOLER	$83.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094525	CONNECTION - WATER	$45.59	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR073688	O-RING IN STOCK	LR073688 O-RING 15 X 3MM, Lower / From: JH000001 IN STOCK	$3.81	1
HR2	LR073687	O-RING	LR073687 O-RING 14.3 x 2.4, Upper / From: JH000001	$28.28	1
HS1	LR073686	SCREW	LR073686 SCREW Drain, M6 X 16MM / From: JH000001	$2.38	2
HS1	LR073686	SCREW	LR073686 SCREW Bracket, M6 X 16MM / From: JH000001	$2.38	1
6K677A	LR094519	HOSE - OIL RETURN	LR094519 HOSE - OIL RETURN Cylinder Block, Low Pressure Turbocharger / From: JH000001	$43.94	1
6K677B	LR094530	HOSE - OIL RETURN	LR094530 HOSE - OIL RETURN Cylinder Block, High Pressure Turbocharger / From: JH000001	$57.92	1
6K679A	LR094529	PIPE - OIL FEED	LR094529 PIPE - OIL FEED Low Pressure Turbocharger / From: JH000001	$61.23	1
6K679B	LR094521	PIPE - OIL FEED	LR094521 PIPE - OIL FEED High Pressure Turbocharger / From: JH000001 / To: JH282372	$68.20	1
6K679B	LR106368	PIPE - OIL FEED	LR106368 PIPE - OIL FEED High Pressure Turbocharger / From: JH282373	$59.90	1
6K683A	LR094520	HOSE - INTERCOOLER	LR094520 HOSE - INTERCOOLER Hose Water Inlet To Turbocharger, Hose Water Outlet From Turbocharger, Low Pressure Turbocharger / From: JH000001	$83.94	1
6K683B	LR094525	CONNECTION - WATER	LR094525 CONNECTION - WATER Cylinder Block, Hose Water Outlet From Turbocharger / From: JH000001	$45.59	1
9450	LR073671	WASHER - COPPER IN STOCK	LR073671 WASHER - COPPER Banjo Washer, Cooling For Turbocharger, Requires 2 Pcs Per Banjo-Bolt / From: JH000001 IN STOCK	$4.48	4
