Fuel Filter (2.0L I4 Dsl High Dohc Aj200, 9 Speed Auto Awd, Halewood (Uk), Fuel Tank-Diesel, 2.0L...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Fuel Filter (2.0L I4 DSL HIGH DOHC AJ200, 9 Speed Auto AWD, Halewood (UK), Fuel Tank-Diesel, 2.0L...

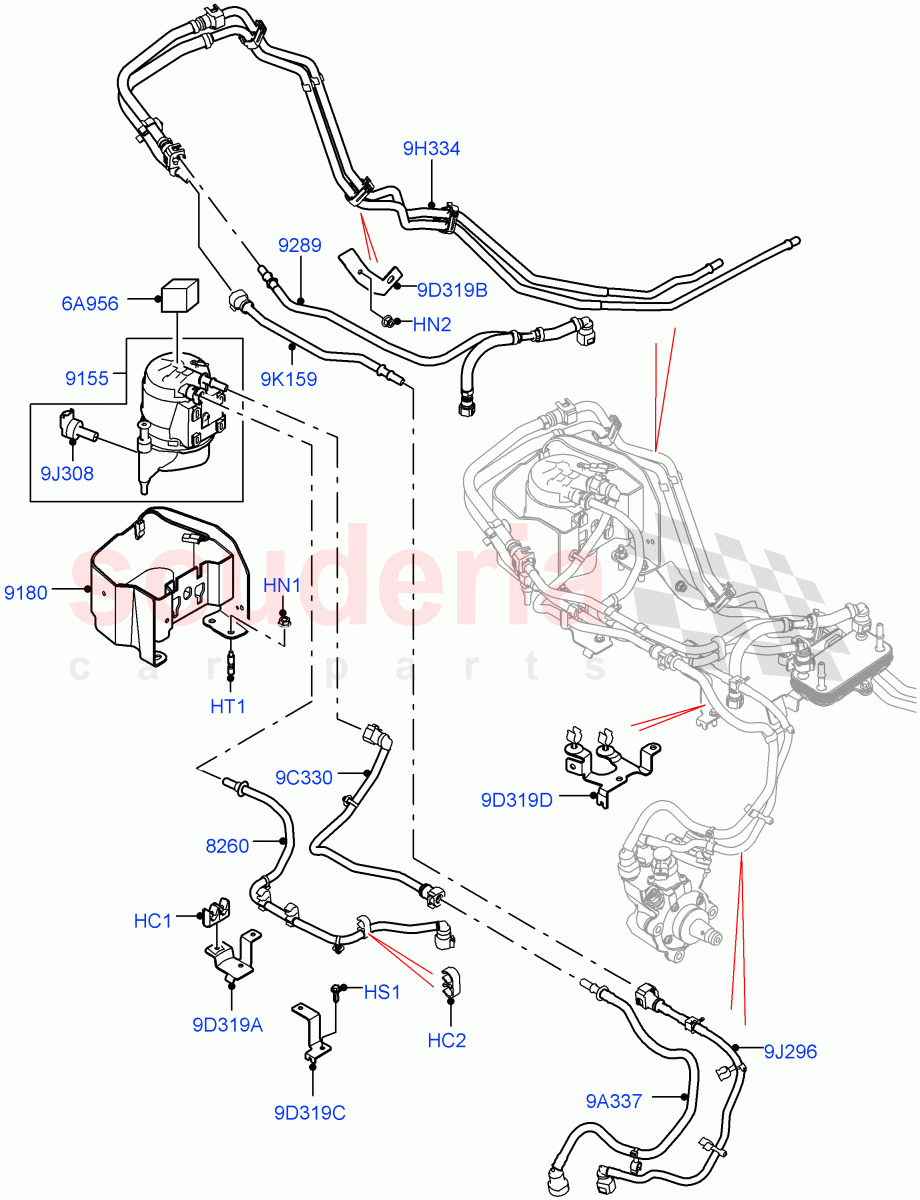

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR094259 CLIP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR126221 CLIP - DOUBLE Enquire To Order
Photo Part No Description Price (each) Stock
LR019197 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR001101 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR015156 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR071915 TUBE - FUEL FILTER TO FUEL COOLER Enquire To Order
LR096551 TUBE - FUEL FILTER TO FUEL COOLER Enquire To Order
LR071915 TUBE - FUEL FILTER TO FUEL COOLER Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR072006 FILTER - FUEL - PRIMARY Enquire To Order
LR155579 FILTER - FUEL - PRIMARY Enquire To Order
LR155579 FILTER - FUEL - PRIMARY Enquire To Order
Photo Part No Description Price (each) Stock
LR077720 BRACKET - FUEL FILTER Enquire To Order
LR094192 BRACKET - FUEL FILTER Enquire To Order
LR116053 BRACKET - FUEL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
LR072002 TUBE - FUEL FEED Enquire To Order
LR096553 TUBE - FUEL FEED Enquire To Order
LR072002 TUBE - FUEL FEED Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR079995 FOAM PAD - ENERGY ABSORBING Enquire To Order
Photo Part No Description Price (each) Stock
LR073716 TUBE - FUEL FILTER TO FUEL PUMP Enquire To Order
LR083488 TUBE - FUEL FILTER TO FUEL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR072169 TUBE - FUEL FILTER TO FUEL PUMP Enquire To Order
LR096552 TUBE - FUEL FILTER TO FUEL PUMP Enquire To Order
LR072169 TUBE - FUEL FILTER TO FUEL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR072170 TUBE - FUEL SUPPLY AND VAPOUR Enquire To Order
LR084744 TUBE - FUEL SUPPLY AND VAPOUR Enquire To Order
LR095801 TUBE - FUEL SUPPLY AND VAPOUR Enquire To Order
Photo Part No Description Price (each) Stock
LR073697 TUBE - FUEL RETURN Enquire To Order
LR083487 TUBE - FUEL RETURN Enquire To Order
LR095136 TUBE - FUEL RETURN Enquire To Order
Photo Part No Description Price (each) Stock
LR105421 SENSOR - WATER DETECTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR072004 TUBE - FUEL RETURN Enquire To Order
Photo Part No Description Price (each) Stock
LR071920 BRACKET - SUPPORT Enquire To Order
LR121075 BRACKET - SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR078970 BRACKET - SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR071922 BRACKET - SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR073771 BRACKET - FUEL TUBE SUPPORT Enquire To Order
View All
Fuel Filter (2.0L I4 DSL HIGH DOHC AJ200, 9 Speed Auto AWD, Halewood (UK), Fuel Tank-Diesel, 2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans-JLR M66 2WD, 6 Speed Manual Trans M66 - AWD, 6 Speed Manual Trans BG6) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR094259
CLIP - HOSE
Clip 8 - 13 X 2 X 0.7 / From: GH000001 		- 1 Enquire
HC2 LR126221
CLIP - DOUBLE
Double / From: GH000001 		- 3 Enquire
HN1 LR019197
NUT - FLANGED
Domed Type, M8 / From: GH000001 		- 3 Enquire
HN2 FY106046
NUT - HEX.
Hexagonal Head, M6 / From: GH000001 		- 1 Enquire
HS1 LR001101
SCREW
6X20, Hexagonal Head / From: GH000001 		- 2 Enquire
HT1 LR015156
STUD
M8 X 12.5 + M8 X 14.5 / From: GH000001 		- 3 Enquire
6A956 LR079995
FOAM PAD - ENERGY ABSORBING
From: GH000001 		- 1 Enquire
9A337 LR073716
TUBE - FUEL FILTER TO FUEL PUMP
From: GH000001 / To: GH083861 		- 1 Enquire
9A337 LR083488
TUBE - FUEL FILTER TO FUEL PUMP
From: GH083862 		- 1 Enquire
9C330 LR072169
TUBE - FUEL FILTER TO FUEL PUMP
From: GH000001 / To: HH999999 		- 1 Enquire
9C330 LR096552
TUBE - FUEL FILTER TO FUEL PUMP
2.0L I4 DSL HIGH DOHC AJ200 / From: JH000001 		- 1 Enquire
9C330 LR072169
TUBE - FUEL FILTER TO FUEL PUMP
2.0L I4 DSL MID DOHC AJ200 / From: JH000001 		- 1 Enquire
9D319A LR071920
BRACKET - SUPPORT
From: GH000001 / To: KH333701 		- 1 Enquire
9D319A LR121075
BRACKET - SUPPORT
From: KH333702 		- 1 Enquire
9D319B LR078970
BRACKET - SUPPORT
From: GH000001 		- 1 Enquire
9D319C LR071922
BRACKET - SUPPORT
From: GH000001 		- 1 Enquire
9D319D LR073771
BRACKET - FUEL TUBE SUPPORT
For Fuel Pump, Inlet Pipe / From: GH000001 		- 1 Enquire
9H334 LR072170
TUBE - FUEL SUPPLY AND VAPOUR
From: GH000001 / To: HH170998 		- 1 Enquire
9H334 LR084744
TUBE - FUEL SUPPLY AND VAPOUR
From: HH170999 / To: HH256515 		- 1 Enquire
9H334 LR095801
TUBE - FUEL SUPPLY AND VAPOUR
From: HH256516 		- 1 Enquire
9J296 LR073697
TUBE - FUEL RETURN
From: GH000001 / To: GH083861 		- 1 Enquire
9J296 LR083487
TUBE - FUEL RETURN
From: GH083862 / To: GH999999 		- 1 Enquire
9J296 LR095136
TUBE - FUEL RETURN
From: HH000001 		- 1 Enquire
9J308 LR105421
SENSOR - WATER DETECTOR
Sensor - Water Detector / From: GH000001 		- 1 Enquire
9K159 LR072004
TUBE - FUEL RETURN
From: GH000001 		- 1 Enquire
8260 LR071915
TUBE - FUEL FILTER TO FUEL COOLER
From: GH000001 / To: HH999999 		- 1 Enquire
8260 LR096551
TUBE - FUEL FILTER TO FUEL COOLER
2.0L I4 DSL HIGH DOHC AJ200 / From: JH000001 / To: JH304860 		- 1 Enquire
8260 LR071915
TUBE - FUEL FILTER TO FUEL COOLER
2.0L I4 DSL MID DOHC AJ200 / From: JH000001 		- 1 Enquire
8260 LR114312
TUBE - FUEL FILTER TO FUEL COOLER
2.0L I4 DSL HIGH DOHC AJ200 / From: JH304861 		- 1 Enquire
9155 LR072006
FILTER - FUEL - PRIMARY
When Ordering Filter Please Order Also Foam Pad LR079995 / From: GH000001 / To: GH128898 		- 1 Enquire
9155 LR155579
FILTER - FUEL - PRIMARY
When Ordering Filter Please Order Also Foam Pad LR079995 / From: GH128899 / To: JH321410 		- 1 Enquire
9155 LR155579
FILTER - FUEL - PRIMARY
When Ordering Filter Please Order Also Foam Pad LR079995 / From: JH321411 		- 1 Enquire
9180 LR077720
BRACKET - FUEL FILTER
From: GH000001 / To: HH999999 		- 1 Enquire
9180 LR094192
BRACKET - FUEL FILTER
From: JH000001 / To: KH336842 		- 1 Enquire
9180 LR116053
BRACKET - FUEL FILTER
From: KH336843 		- 1 Enquire
9289 LR072002
TUBE - FUEL FEED
From: GH000001 / To: HH999999 		- 1 Enquire
9289 LR096553
TUBE - FUEL FEED
2.0L I4 DSL HIGH DOHC AJ200 / From: JH000001 / To: JH303984 		- 1 Enquire
9289 LR072002
TUBE - FUEL FEED
2.0L I4 DSL MID DOHC AJ200 / From: JH000001 		- 1 Enquire
9289 LR114291
TUBE - FUEL FEED
2.0L I4 DSL HIGH DOHC AJ200 / From: JH303985 		- 1 Enquire
