Rear Springs And Shock Absorbers (With Standard Duty Coil Spring Susp) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Rear Springs And Shock Absorbers (With Standard Duty Coil Spring Susp) ((V) FROMAA000001)

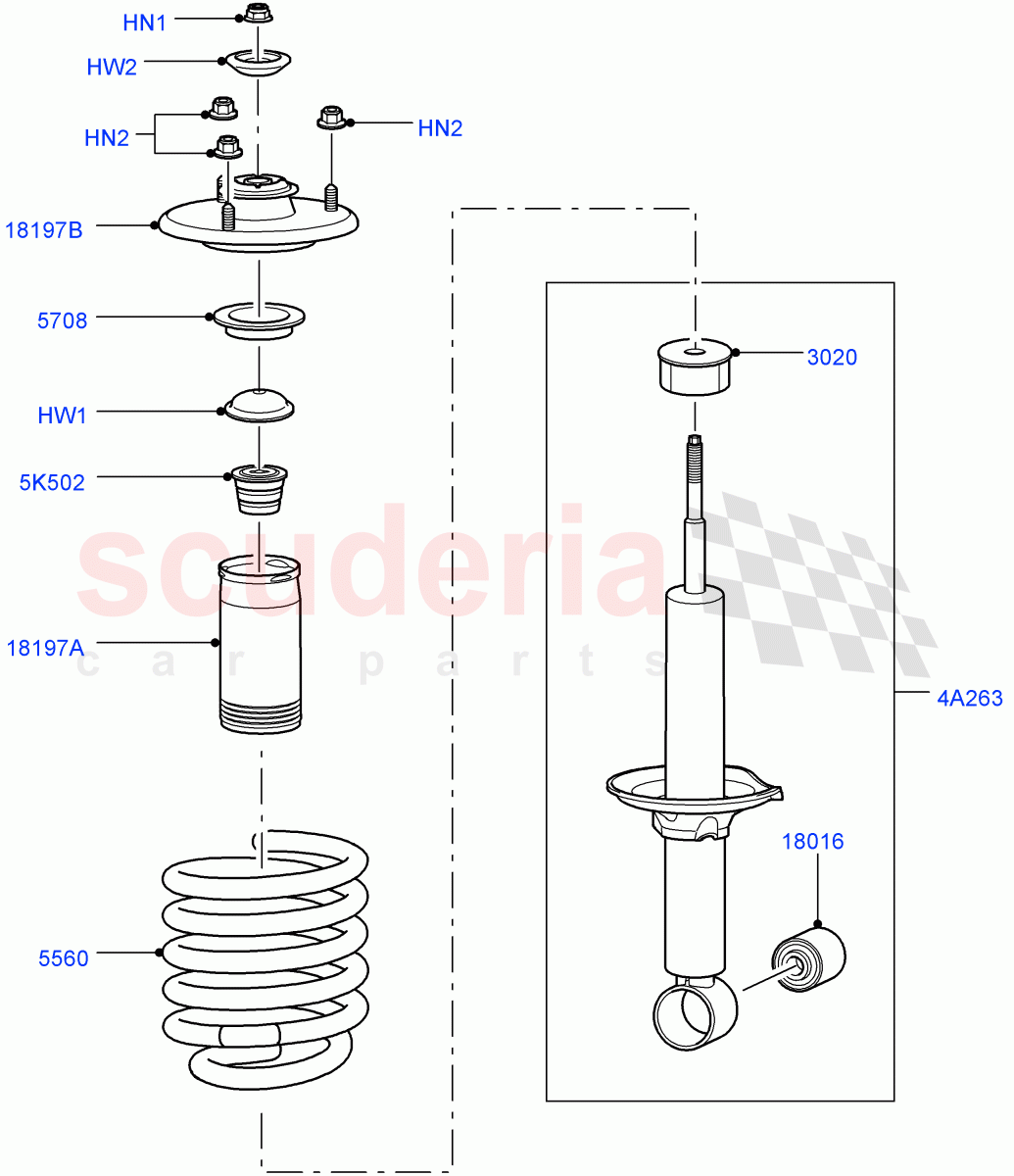

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FY114047	NUT (NON HAZ)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY110056	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RNS000041	PLATE (NON HAZ)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RNS500010	WASHER - DAMPER LOCKING (NON HAZ)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RNO000011	BUMP STOP (NON HAZ)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RKB500033	SPRING - REAR (NON HAZ)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RNG500030	SPACER (NON HAZ)	Enquire	To Order
	RNG500040	SPACER (NON HAZ)	Enquire	To Order
	RNG500050	SPACER (NON HAZ)	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	ROA000022	BUSH - SHOCK ABSORBER (NON HAZ)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018433	DAMPER	Enquire	To Order
	LR038097	SHOCK ABSORBER - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RPC500013	BUFFER - SPRING ASSIST (NON HAZ)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RNE000011	COVER - DUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RPF500023	INSULATOR - SHOCK ABSORBER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	FY114047	NUT (NON HAZ)	FY114047 NUT (NON HAZ) M14 / From: AA000001	-	2	Enquire
HN2	FY110056	NUT	FY110056 NUT M10 / From: AA000001	-	2	Enquire
HW1	RNS000041	PLATE (NON HAZ)	RNS000041 PLATE (NON HAZ) Bump Washer / From: AA000001	-	2	Enquire
HW2	RNS500010	WASHER - DAMPER LOCKING (NON HAZ)	RNS500010 WASHER - DAMPER LOCKING (NON HAZ)	-	2	Enquire
4A263	LR018433	DAMPER	LR018433 DAMPER From: AA000001 / To: CA633356	-	2	Enquire
4A263	LR038097	SHOCK ABSORBER - REAR	LR038097 SHOCK ABSORBER - REAR From: CA633357	-	2	Enquire
5K502	RPC500013	BUFFER - SPRING ASSIST (NON HAZ)	RPC500013 BUFFER - SPRING ASSIST (NON HAZ) From: AA000001	-	2	Enquire
3020	RNO000011	BUMP STOP (NON HAZ)	RNO000011 BUMP STOP (NON HAZ) From: AA000001	-	2	Enquire
5560	RKB500033	SPRING - REAR (NON HAZ)	RKB500033 SPRING - REAR (NON HAZ) From: AA000001	-	2	Enquire
5708	RNG500030	SPACER (NON HAZ)	RNG500030 SPACER (NON HAZ) 3MM, Use With Spring Colour Identification Red / From: AA000001	-	2	Enquire
5708	RNG500040	SPACER (NON HAZ)	RNG500040 SPACER (NON HAZ) 6.5MM, Use With Spring Colour Identification Red/White / From: AA000001	-	2	Enquire
5708	RNG500050	SPACER (NON HAZ)	RNG500050 SPACER (NON HAZ) 10MM, Use With Spring Colour Identification Red/Green / From: AA000001	-	2	Enquire
5708	RNG500060	SPACER (NON HAZ)	RNG500060 SPACER (NON HAZ) 13.5MM, Use With Spring Colour Identification Red/Orange / From: AA000001	-	2	Enquire
18016	ROA000022	BUSH - SHOCK ABSORBER (NON HAZ)	ROA000022 BUSH - SHOCK ABSORBER (NON HAZ) From: AA000001	-	2	Enquire
18197A	RNE000011	COVER - DUST	RNE000011 COVER - DUST From: AA000001	-	2	Enquire
18197B	RPF500023	INSULATOR - SHOCK ABSORBER	RPF500023 INSULATOR - SHOCK ABSORBER From: AA000001	-	2	Enquire
