Rear Knuckle And Suspension Arms (Rear Lower And Upper Arms) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Rear Knuckle And Suspension Arms (Rear Lower And Upper Arms) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG000461 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FC114206 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
RYG000384 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
KYG000240 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FC116216 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
KYG500270 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
RYH501060 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
RYH500280 NUT Enquire To Order
Photo Part No Description Price (each) Stock
RYH500191 NUT Enquire To Order
Photo Part No Description Price (each) Stock
FX116056 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
RYH500052 NUT Enquire To Order
Photo Part No Description Price (each) Stock
RYH500116 NUT - ADJUSTING SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYG501580 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
RYF000182 WASHER - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
RGG500460 ARM - REAR SUSPENSION Enquire To Order
RGG500470 ARM - REAR SUSPENSION Enquire To Order
LR013686 ARM - REAR SUSPENSION Enquire To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR010525 ARM - REAR SUSPENSION Enquire To Order
LR010523 ARM - REAR SUSPENSION Enquire To Order
LR051622 ARM - REAR SUSPENSION Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
RGD500190 END - SPINDLE ROD CONNECTING Enquire To Order
LR019117 END - SPINDLE ROD CONNECTING Enquire To Order
Photo Part No Description Price (each) Stock
RGX500121 BUSH Enquire To Order
LR051616 BUSH - SUSPENSION ARM Enquire To Order
Photo Part No Description Price (each) Stock
RGX500300 BUSH Enquire To Order
LR051621 BUSH - SUSPENSION ARM Enquire To Order
Photo Part No Description Price (each) Stock
RGX500290 BUSH Enquire To Order
RGX500211 BUSH - REAR SUSPENSION Enquire To Order
LR051611 BUSH - SUSPENSION ARM Enquire To Order
Photo Part No Description Price (each) Stock
RGX500111 BUSH Enquire To Order
LR054831 BUSH - REAR SUSPENSION Enquire To Order
View All

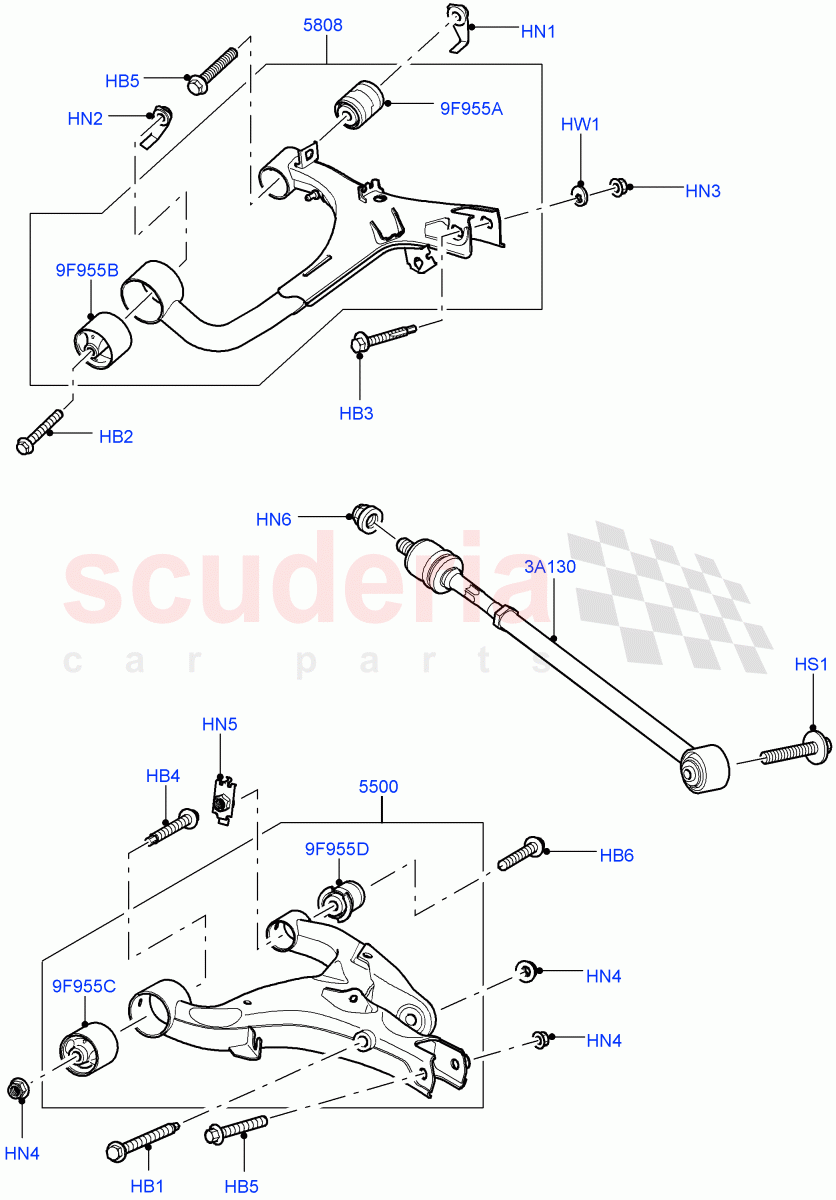

Rear Knuckle And Suspension Arms (Rear Lower And Upper Arms) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG000461
BOLT
225MM, M16, Shock Absorber To The Lower Arm / From: AA000001 		- 2 Enquire
HB2 FC114206
BOLT
HEX Flange, Hexagonal Head, M14 x 100MM / From: AA000001 		- 2 Enquire
HB3 RYG000384
BOLT
M13 / From: AA000001 		- 2 Enquire
HB4 KYG000240
BOLT
M16 X 120MM / From: AA000001 		- 2 Enquire
HB5 FC116216
BOLT
M16 X 105MM / From: AA000001 		- 4 Enquire
HB6 KYG500270
BOLT
M16 x 115MM / From: AA000001 		- 2 Enquire
HN1 RYH501060
NUT - FLANGED
M16 / From: AA000001 		- 2 Enquire
HN2 RYH500280
NUT
M14 / From: AA000001 		- 2 Enquire
HN3 RYH500191
NUT
M13 / From: AA000001 		- 2 Enquire
HN4 FX116056
NUT - FLANGED
M16 / From: AA000001 		- 2 Enquire
HN5 RYH500052
NUT
M16 / From: AA000001 		- 2 Enquire
HN6 RYH500116
NUT - ADJUSTING SCREW
M17 / From: AA000001 		- 2 Enquire
HS1 RYG501580
BOLT
Bolt And Washer, HEX Flange, M14 X 80MM / From: AA000001 		- 2 Enquire
HW1 RYF000182
WASHER - SPECIAL
Adjusting / From: AA000001 		- 2 Enquire
3A130 RGD500190
END - SPINDLE ROD CONNECTING
LH, RH, Rear, Toe Link / From: AA000001 / To: AA518889 		- 2 Enquire
3A130 LR019117
END - SPINDLE ROD CONNECTING
LH, RH, Rear, Toe Link / From: AA518890 		- 2 Enquire
9F955A RGX500121
BUSH
Rear, Upper / From: AA000001 / To: EA719500 		- 2 Enquire
9F955A LR051616
BUSH - SUSPENSION ARM
Rear, Upper / From: EA719501 		- 1 Enquire
9F955B RGX500300
BUSH
Front, Upper / From: AA000001 / To: EA719500 		- 2 Enquire
9F955B LR051621
BUSH - SUSPENSION ARM
Front, Upper / From: EA719501 		- 1 Enquire
9F955C RGX500290
BUSH
Front, Lower / From: AA518770 / To: DA699649 		- 2 Enquire
9F955C RGX500211
BUSH - REAR SUSPENSION
Front, Lower / From: AA000001 / To: AA518769 		- 2 Enquire
9F955C LR051611
BUSH - SUSPENSION ARM
Front, Lower / From: DA699650 		- 2 Enquire
9F955D RGX500111
BUSH
Lower, Rear / From: AA000001 / To: DA699649 		- 2 Enquire
9F955D LR054831
BUSH - REAR SUSPENSION
Lower, Rear / From: DA699650 		- 2 Enquire
5500 RGG500460
ARM - REAR SUSPENSION
With Four Corner Air Suspension / RH, Complete Assembly, Lower / From: AA000001 / To: AA515353 		- 1 Enquire
5500 RGG500470
ARM - REAR SUSPENSION
With Four Corner Air Suspension / LH, Complete Assembly, Lower / From: AA000001 / To: AA515353 		- 1 Enquire
5500 LR013686
ARM - REAR SUSPENSION
With Standard Duty Coil Spring Susp / RH, Complete Assembly, Lower / From: AA000001 / To: AA518769 		- 1 Enquire
5500 LR013688
ARM - REAR SUSPENSION
With Standard Duty Coil Spring Susp / LH, Complete Assembly, Lower / From: AA000001 / To: AA518769 		- 1 Enquire
5500 LR019979
ARM - REAR SUSPENSION
With Four Corner Air Suspension / RH, Complete Assembly, Lower / From: AA515354 / To: DA699649 		- 1 Enquire
5500 LR019980
ARM - REAR SUSPENSION
With Four Corner Air Suspension / LH, Complete Assembly, Lower / From: AA515354 / To: DA699649 		- 1 Enquire
5500 LR021642
ARM - REAR SUSPENSION
With Standard Duty Coil Spring Susp / RH, Complete Assembly, Lower / From: AA518770 / To: DA699649 		- 1 Enquire
5500 LR021643
ARM - REAR SUSPENSION
With Standard Duty Coil Spring Susp / LH, Complete Assembly, Lower / From: AA518770 / To: DA699649 		- 1 Enquire
5500 LR051592
ARM - REAR SUSPENSION
With Four Corner Air Suspension / RH, Complete Assembly, Lower / From: DA699650 		- 1 Enquire
5500 LR051594
ARM - REAR SUSPENSION
With Four Corner Air Suspension / LH, Complete Assembly, Lower / From: DA699650 		- 1 Enquire
5500 LR051619
ARM - REAR SUSPENSION
With Standard Duty Coil Spring Susp / RH, Complete Assembly, Lower / From: DA699650 		- 1 Enquire
5500 LR051620
ARM - REAR SUSPENSION
With Standard Duty Coil Spring Susp / LH, Complete Assembly, Lower / From: DA699650 		- 1 Enquire
5808 LR010525
ARM - REAR SUSPENSION
LH, Complete Assembly, Upper / From: AA000001 / To: EA719754 		- 1 Enquire
5808 LR010523
ARM - REAR SUSPENSION
RH, Complete Assembly, Upper / From: AA000001 / To: EA719754 		- 1 Enquire
5808 LR051622
ARM - REAR SUSPENSION
RH, Complete Assembly, Upper / From: EA719755 		- 1 Enquire
5808 LR051623
ARM - REAR SUSPENSION
LH, Complete Assembly, Upper / From: EA719755 		- 1 Enquire
