Air Suspension Compressor And Lines ('AMK' Compressor) ((V) FROMCA639078) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Air Suspension Compressor And Lines ('AMK' Compressor) ((V) FROMCA639078)

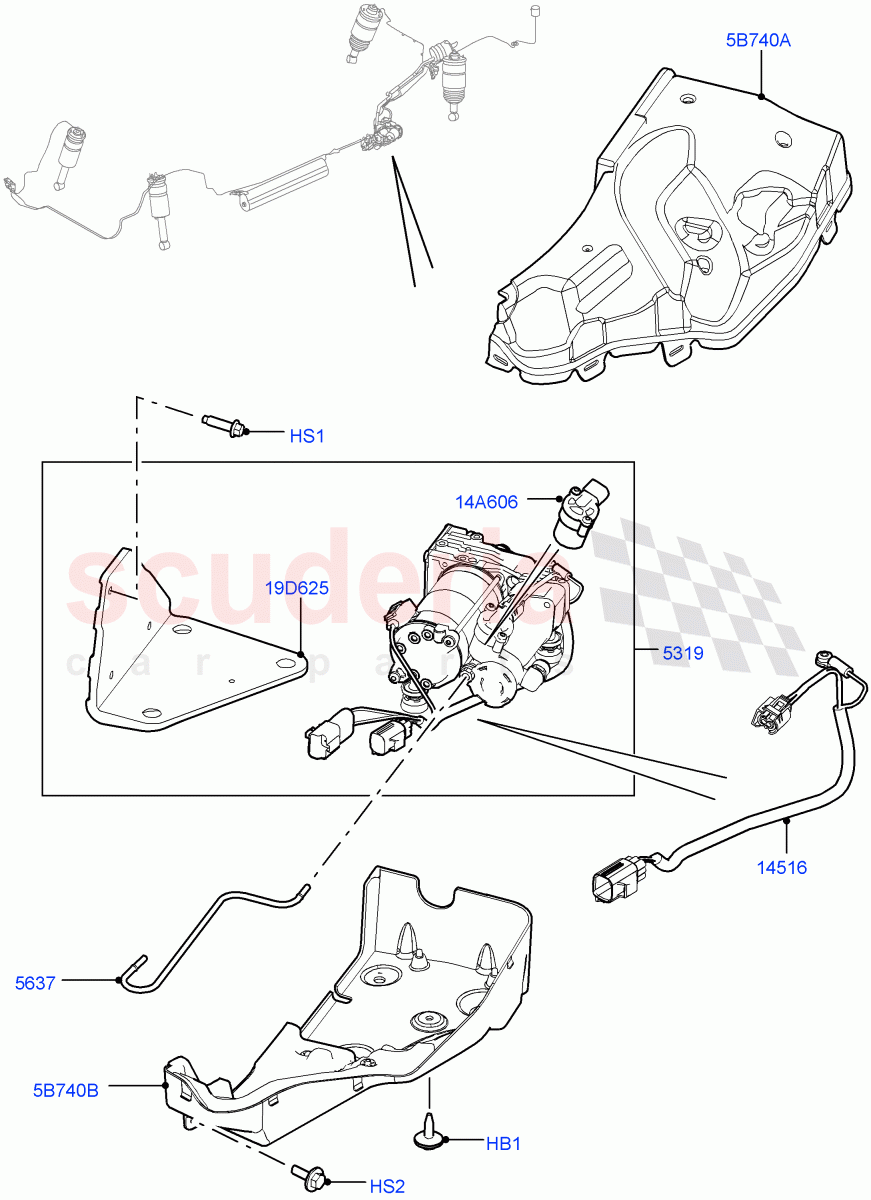

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYP501100	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500110	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083229	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044016	COMPRESSOR - SUSPENSION LEVELLING	Enquire	To Order
	LR045444	COMPRESSOR - SUSPENSION LEVELLING	Enquire	To Order
	LR061888	COMPRESSOR - SUSPENSION LEVELLING	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR031952	TUBE - COMPRESSOR LINE	Enquire	To Order
	LR056050	TUBE - COMPRESSOR LINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060166	WIRING - REPAIR	Enquire	To Order
	LR078643	WIRING - REPAIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075760	VALVE - SOLENOID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044034	BRACKET - COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044027	COVER - AIR SUSPENSION COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044026	COVER - AIR SUSPENSION COMPRESSOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	RYP501100	BOLT	RYP501100 BOLT M6 X 23MM / From: CA639078	-	1	Enquire
HS1	RYP500110	SCREW	RYP500110 SCREW M8 X 25MM / From: CA639078	-	3	Enquire
HS2	LR083229	SCREW	LR083229 SCREW M6 x 18MM / From: CA639078	-	2	Enquire
5B740A	LR044027	COVER - AIR SUSPENSION COMPRESSOR	LR044027 COVER - AIR SUSPENSION COMPRESSOR Upper / From: CA639078	-	1	Enquire
5B740B	LR044026	COVER - AIR SUSPENSION COMPRESSOR	LR044026 COVER - AIR SUSPENSION COMPRESSOR Lower / From: CA639078	-	1	Enquire
14A606	LR075760	VALVE - SOLENOID	LR075760 VALVE - SOLENOID Solenoid - Air Suspension / From: FA742183	-	1	Enquire
19D625	LR044034	BRACKET - COMPRESSOR	LR044034 BRACKET - COMPRESSOR From: CA639078	-	1	Enquire
5319	LR044016	COMPRESSOR - SUSPENSION LEVELLING	LR044016 COMPRESSOR - SUSPENSION LEVELLING From: CA639078 / To: DA652343	-	1	Enquire
5319	LR045444	COMPRESSOR - SUSPENSION LEVELLING	LR045444 COMPRESSOR - SUSPENSION LEVELLING From: DA652344 / To: EA720950	-	1	Enquire
5319	LR061888	COMPRESSOR - SUSPENSION LEVELLING	LR061888 COMPRESSOR - SUSPENSION LEVELLING From: EA720951 / To: FA742182	-	1	Enquire
5319	LR072539	COMPRESSOR - SUSPENSION LEVELLING	LR072539 COMPRESSOR - SUSPENSION LEVELLING From: FA742183 / To: GA785611	-	1	Enquire
5319	LR078650	COMPRESSOR - SUSPENSION LEVELING	LR078650 COMPRESSOR - SUSPENSION LEVELING From: GA785612	-	1	Enquire
5637	LR031952	TUBE - COMPRESSOR LINE	LR031952 TUBE - COMPRESSOR LINE High Pressure, Supply Unit To Reservoir Valve Block / From: CA639078 / To: DA690649	-	1	Enquire
5637	LR056050	TUBE - COMPRESSOR LINE	LR056050 TUBE - COMPRESSOR LINE Air Compressor To Valve Block, High Pressure / From: DA690650	-	1	Enquire
14516	LR060166	WIRING - REPAIR	LR060166 WIRING - REPAIR Thermistor Harness Repair / From: CA639078 / To: DA999999	-	1	Enquire
14516	LR078643	WIRING - REPAIR	LR078643 WIRING - REPAIR Thermistor Harness Repair / From: EA000001	-	1	Enquire
