Drive Shaft - Rear Axle Drive (Drive Shaft & Boot Kits) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Drive Shaft - Rear Axle Drive (Drive Shaft & Boot Kits) ((V) FROMAA000001)

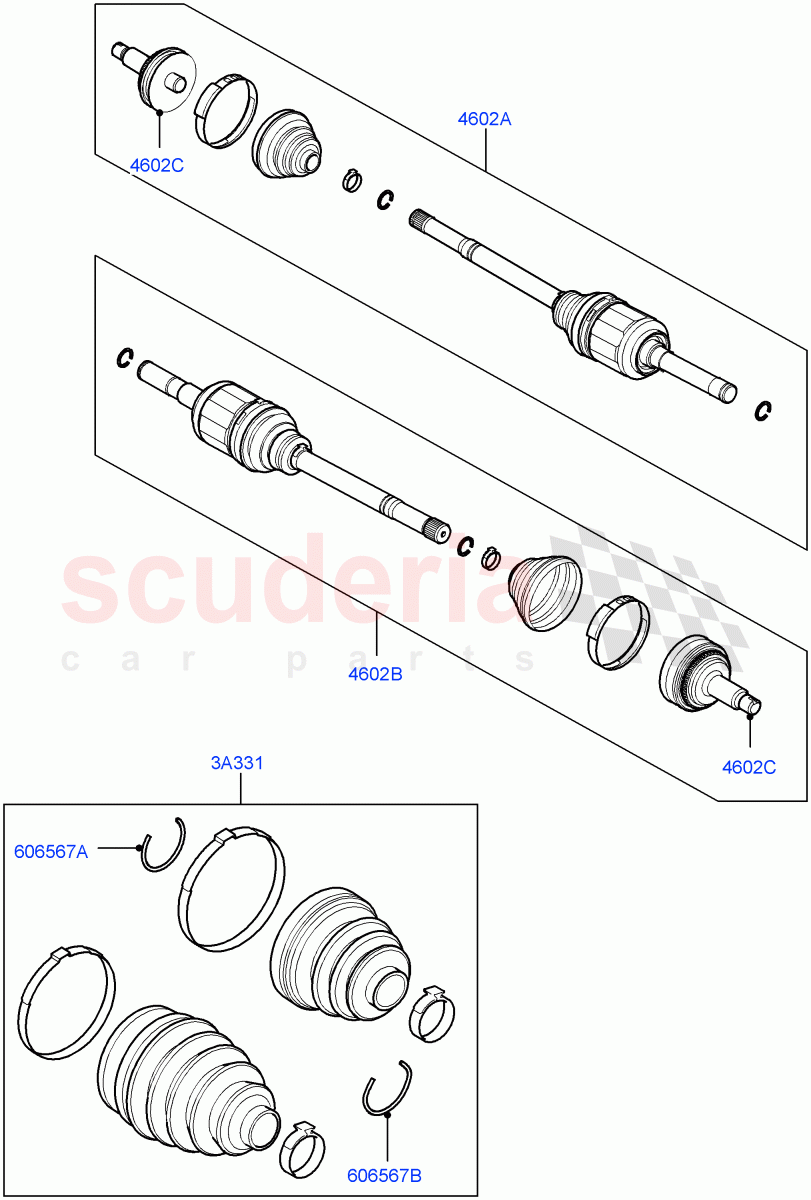

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	TDR500070	BOOT	Enquire	To Order
	TDR500080	BOOT	Enquire	To Order
	LR072515	KIT - BOOT DRIVE AXLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	TOB500250	SHAFT - DRIVE	Enquire	To Order
	TOB500270	SHAFT - DRIVE	Enquire	To Order
	LR047284	SHAFT - DRIVE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	TOB500260	SHAFT - DRIVE	Enquire	To Order
	TOB500280	SHAFT - DRIVE	Enquire	To Order
	LR047288	SHAFT - DRIVE	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	TDJ500050	SHAFT - DRIVE	Enquire	To Order
	TDJ500060	SHAFT - DRIVE	Enquire	To Order
	LR060384	JOINT - CV	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	TDL500040	CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TDL500060	CIRCLIP	Enquire	To Order
	TDL500070	CIRCLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
3A331	TDR500070	BOOT	TDR500070 BOOT Rear Axle Open Style Differential / From: AA000001 / To: DA671699	-	2	Enquire
3A331	TDR500080	BOOT	TDR500080 BOOT Rear Axle Locking Differential / From: AA000001 / To: DA671699	-	2	Enquire
3A331	LR072515	KIT - BOOT DRIVE AXLE	LR072515 KIT - BOOT DRIVE AXLE Rear Axle Open Style Differential / From: DA671700	-	1	Enquire
3A331	LR072516	KIT - BOOT DRIVE AXLE	LR072516 KIT - BOOT DRIVE AXLE Rear Axle Locking Differential / From: DA671700	-	1	Enquire
4602A	TOB500250	SHAFT - DRIVE	TOB500250 SHAFT - DRIVE Rear Axle Locking Differential / LH, 1.5 mm thread pitch, Please Order The Appropriate Nut / From: AA000001 / To: DA671699	-	1	Enquire
4602A	TOB500270	SHAFT - DRIVE	TOB500270 SHAFT - DRIVE Rear Axle Open Style Differential / LH, 1.5 mm thread pitch, Please Order The Appropriate Nut / From: AA000001 / To: DA671699	-	1	Enquire
4602A	LR047284	SHAFT - DRIVE	LR047284 SHAFT - DRIVE Rear Axle Locking Differential / LH, 2.0 mm thread pitch, Please Order The Appropriate Nut / From: DA671700 / To: GA900243	-	1	Enquire
4602A	LR047286	SHAFT - DRIVE	LR047286 SHAFT - DRIVE Rear Axle Open Style Differential / LH, 2.0 mm thread pitch, Please Order The Appropriate Nut / From: DA671700 / To: FA761859	-	1	Enquire
4602A	LR072063	SHAFT - DRIVE	LR072063 SHAFT - DRIVE Rear Axle Locking Differential / LH, 2.0 mm thread pitch, Please Order The Appropriate Nut / From: GA900244	-	1	Enquire
4602A	LR072065	SHAFT - DRIVE	LR072065 SHAFT - DRIVE Rear Axle Open Style Differential / LH, 2.0 mm thread pitch, Please Order The Appropriate Nut / From: FA761860	-	1	Enquire
4602B	TOB500260	SHAFT - DRIVE	TOB500260 SHAFT - DRIVE Rear Axle Locking Differential / RH, 1.5 mm thread pitch, Please Order The Appropriate Nut / From: AA000001 / To: DA671699	-	1	Enquire
4602B	TOB500280	SHAFT - DRIVE	TOB500280 SHAFT - DRIVE Rear Axle Open Style Differential / RH, 1.5 mm thread pitch, Please Order The Appropriate Nut / From: AA000001 / To: DA671699	-	1	Enquire
4602B	LR047288	SHAFT - DRIVE	LR047288 SHAFT - DRIVE Rear Axle Open Style Differential / RH, 2.0 mm thread pitch, Please Order The Appropriate Nut / From: DA671700 / To: FA761859	-	1	Enquire
4602B	LR047285	SHAFT - DRIVE	LR047285 SHAFT - DRIVE Rear Axle Locking Differential / RH, 2.0 mm thread pitch, Please Order The Appropriate Nut / From: DA671700 / To: FA761859	-	1	Enquire
4602B	LR072071	SHAFT - DRIVE	LR072071 SHAFT - DRIVE Rear Axle Locking Differential / RH, 2.0 mm thread pitch, Please Order The Appropriate Nut / From: FA761860	-	1	Enquire
4602B	LR071933	SHAFT - DRIVE	LR071933 SHAFT - DRIVE Rear Axle Open Style Differential / RH, 2.0 mm thread pitch, Please Order The Appropriate Nut / From: FA761860 / To: FA777399	-	1	Enquire
4602B	LR071933	SHAFT - DRIVE	LR071933 SHAFT - DRIVE Rear Axle Open Style Differential / RH, 2.0 mm thread pitch, Please Order The Appropriate Nut / From: FA777400	-	1	Enquire
4602C	TDJ500050	SHAFT - DRIVE	TDJ500050 SHAFT - DRIVE Rear Axle Open Style Differential / From: AA000001 / To: DA699648	-	2	Enquire
4602C	TDJ500060	SHAFT - DRIVE	TDJ500060 SHAFT - DRIVE Rear Axle Locking Differential / From: AA000001 / To: DA699648	-	2	Enquire
4602C	LR060384	JOINT - CV	LR060384 JOINT - CV Rear Axle Open Style Differential / From: DA699649	-	2	Enquire
4602C	LR060385	JOINT - CV	LR060385 JOINT - CV Rear Axle Locking Differential / From: DA699649	-	2	Enquire
606567A	TDL500040	CIRCLIP	TDL500040 CIRCLIP Differential / From: AA000001	-	2	Enquire
606567B	TDL500060	CIRCLIP	TDL500060 CIRCLIP Rear Axle Open Style Differential / Barshaft / From: AA000001	-	2	Enquire
606567B	TDL500070	CIRCLIP	TDL500070 CIRCLIP Rear Axle Locking Differential / Barshaft / From: AA000001	-	2	Enquire
