Name: Rear Exhaust System (Nitra Plant Build) (3.0 V6 D Low MT ROW, Euro Stage 4 Emissions) ((V) FROMK2000001)
Rating: 4.6 (1 reviews)

View All

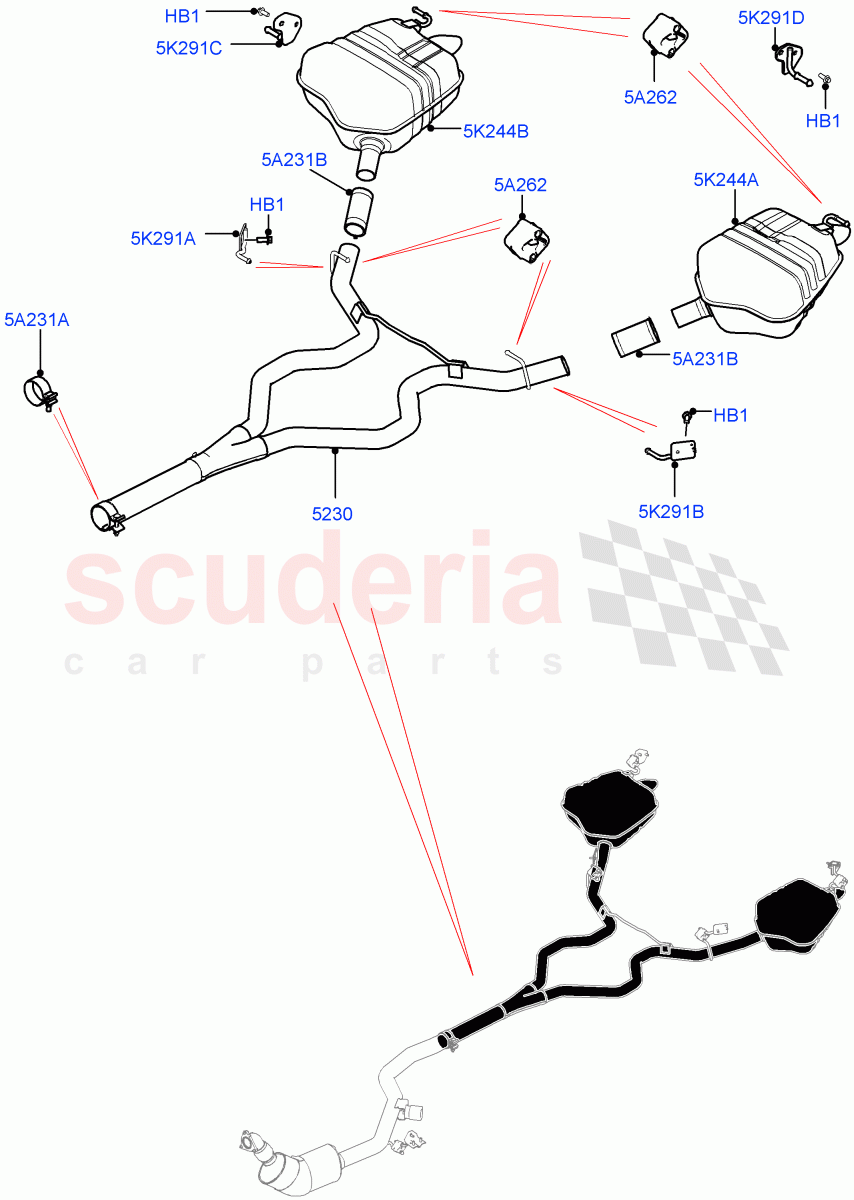

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR126076	MUFFLER - CENTRE	$853.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$23.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036441	CLAMP - EXHAUST	$29.81	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500030	CLAMP - EXHAUST	$81.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126081	MUFFLER - REAR	$811.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126080	MUFFLER - REAR	$674.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088295	BRACKET - EXHAUST	$29.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088302	BRACKET - EXHAUST	$29.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082704	BRACKET - REAR MUFFLER	$47.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082707	BRACKET - REAR MUFFLER	$47.31	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Bracket, Hexagonal Head, M8 X 20MM / From: K2000001 IN STOCK	$2.23	8
5A231A	LR036441	CLAMP - EXHAUST	LR036441 CLAMP - EXHAUST 70MM, Front / From: K2000001	$29.81	1
5A231B	WCL500030	CLAMP - EXHAUST	WCL500030 CLAMP - EXHAUST 55MM, Rear / From: K2000001	$81.53	2
5A262	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER From: K2000001	$23.23	4
5K244A	LR126081	MUFFLER - REAR	LR126081 MUFFLER - REAR RH / From: K2000001	$811.59	1
5K244B	LR126080	MUFFLER - REAR	LR126080 MUFFLER - REAR LH / From: K2000001	$674.59	1
5K291A	LR088295	BRACKET - EXHAUST	LR088295 BRACKET - EXHAUST RH / From: K2000001	$29.38	1
5K291B	LR088302	BRACKET - EXHAUST	LR088302 BRACKET - EXHAUST LH / From: K2000001	$29.38	1
5K291C	LR082704	BRACKET - REAR MUFFLER	LR082704 BRACKET - REAR MUFFLER RH Rear / From: K2000001	$47.31	1
5K291D	LR082707	BRACKET - REAR MUFFLER	LR082707 BRACKET - REAR MUFFLER LH Rear / From: K2000001	$47.31	1
5230	LR126076	MUFFLER - CENTRE	LR126076 MUFFLER - CENTRE From: K2000001	$853.46	1

Rear Exhaust System (Nitra Plant Build) (3.0 V6 D Low Mt Row, Euro Stage 4 Emissions) ((V)...

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]
