Name: Rear Exhaust System (Solihull Plant Build) (3.0 V6 D Low MT ROW, Euro Stage 4 Emissions) ((V) FROMHA000001)
Rating: 4.6 (1 reviews)

View All

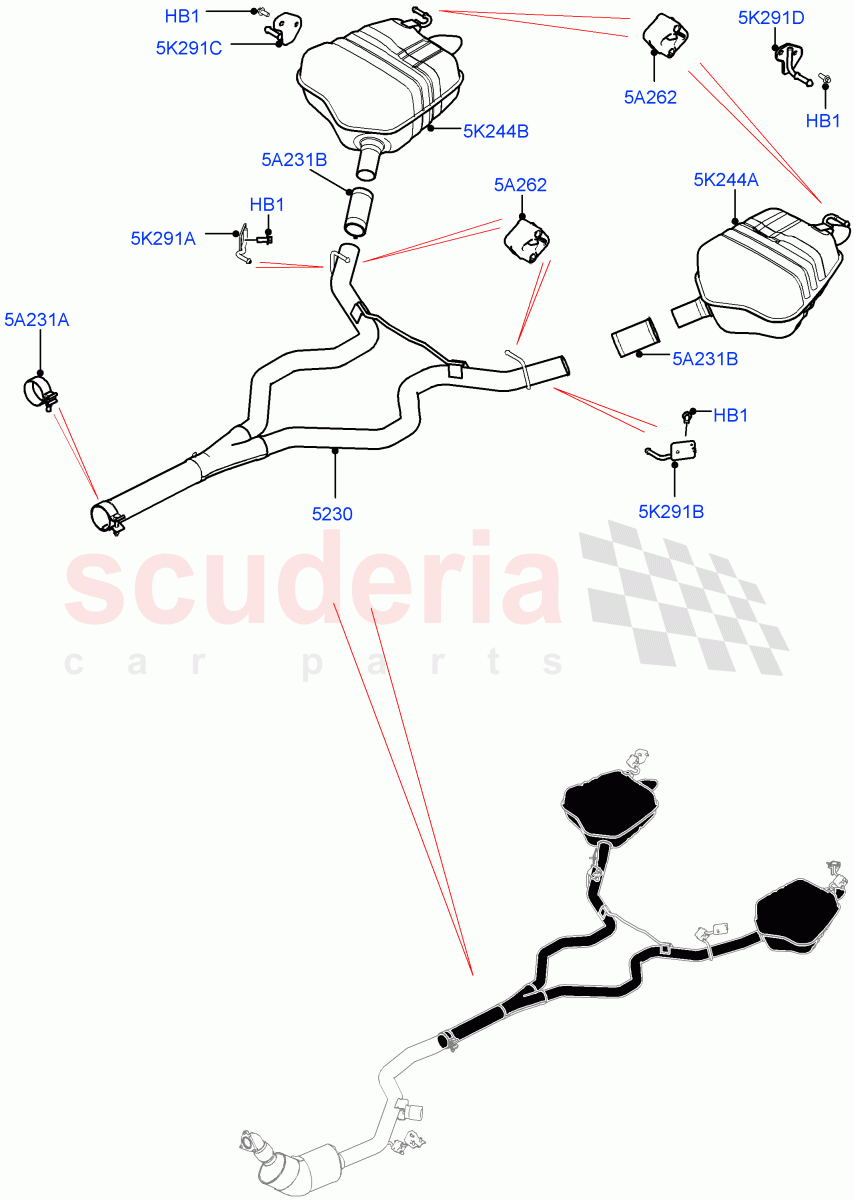

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR088305	MUFFLER - CENTRE	$441.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$23.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036441	CLAMP - EXHAUST	$29.81	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500030	CLAMP - EXHAUST	$81.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107021	MUFFLER - REAR	$591.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107020	MUFFLER - REAR	$637.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088295	BRACKET - EXHAUST	$29.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088302	BRACKET - EXHAUST	$29.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082704	BRACKET - REAR MUFFLER	$47.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082707	BRACKET - REAR MUFFLER	$47.31	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Bracket, Hexagonal Head, M8 X 20MM IN STOCK	$2.23	8
5A231A	LR036441	CLAMP - EXHAUST	LR036441 CLAMP - EXHAUST 70MM, Front	$29.81	1
5A231B	WCL500030	CLAMP - EXHAUST	WCL500030 CLAMP - EXHAUST 55MM, Rear	$81.53	2
5A262	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER	$23.23	4
5K244A	LR107021	MUFFLER - REAR	LR107021 MUFFLER - REAR RH	$591.30	1
5K244B	LR107020	MUFFLER - REAR	LR107020 MUFFLER - REAR LH	$637.79	1
5K291A	LR088295	BRACKET - EXHAUST	LR088295 BRACKET - EXHAUST RH	$29.38	1
5K291B	LR088302	BRACKET - EXHAUST	LR088302 BRACKET - EXHAUST LH	$29.38	1
5K291C	LR082704	BRACKET - REAR MUFFLER	LR082704 BRACKET - REAR MUFFLER RH Rear	$47.31	1
5K291D	LR082707	BRACKET - REAR MUFFLER	LR082707 BRACKET - REAR MUFFLER LH Rear	$47.31	1
5230	LR088305	MUFFLER - CENTRE	LR088305 MUFFLER - CENTRE	$441.79	1

Rear Exhaust System (Solihull Plant Build) (3.0 V6 D Low Mt Row, Euro Stage 4 Emissions) ((V)...

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]
