Find Your Part

View All

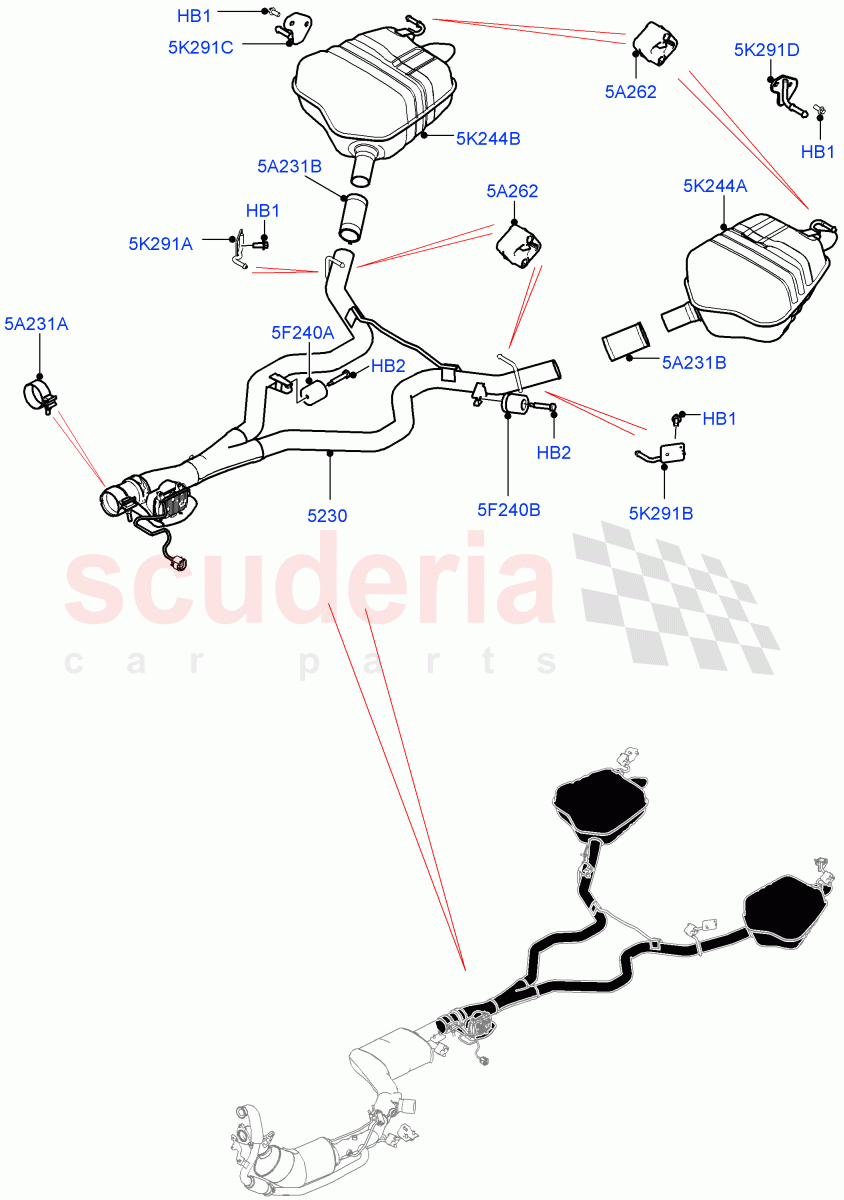

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYG500060	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126079	MUFFLER - CENTRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036441	CLAMP - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500030	CLAMP - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088313	DAMPER - EXHAUST SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088312	DAMPER - EXHAUST SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126082	MUFFLER - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126083	MUFFLER - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088295	BRACKET - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088302	BRACKET - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082704	BRACKET - REAR MUFFLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082707	BRACKET - REAR MUFFLER	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS108206	BOLT	FS108206 BOLT Bracket, Hexagonal Head, M8 X 20MM / From: K2000001	-	8	Enquire
HB2	WYG500060	BOLT	WYG500060 BOLT M8 X 70 - 8.8, Self Locking / From: K2000001	-	2	Enquire
5A231A	LR036441	CLAMP - EXHAUST	LR036441 CLAMP - EXHAUST 70MM, Front / From: K2000001	-	1	Enquire
5A231B	WCL500030	CLAMP - EXHAUST	WCL500030 CLAMP - EXHAUST 55MM, Rear / From: K2000001	-	2	Enquire
5A262	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER From: K2000001	-	4	Enquire
5F240A	LR088313	DAMPER - EXHAUST SYSTEM	LR088313 DAMPER - EXHAUST SYSTEM RH / From: K2000001	-	1	Enquire
5F240B	LR088312	DAMPER - EXHAUST SYSTEM	LR088312 DAMPER - EXHAUST SYSTEM LH / From: K2000001	-	1	Enquire
5K244A	LR126082	MUFFLER - REAR	LR126082 MUFFLER - REAR LH / From: K2000001	-	1	Enquire
5K244B	LR126083	MUFFLER - REAR	LR126083 MUFFLER - REAR RH / From: K2000001	-	1	Enquire
5K291A	LR088295	BRACKET - EXHAUST	LR088295 BRACKET - EXHAUST RH / From: K2000001	-	1	Enquire
5K291B	LR088302	BRACKET - EXHAUST	LR088302 BRACKET - EXHAUST LH / From: K2000001	-	1	Enquire
5K291C	LR082704	BRACKET - REAR MUFFLER	LR082704 BRACKET - REAR MUFFLER RH Rear / From: K2000001	-	1	Enquire
5K291D	LR082707	BRACKET - REAR MUFFLER	LR082707 BRACKET - REAR MUFFLER LH Rear / From: K2000001	-	1	Enquire
5230	LR126079	MUFFLER - CENTRE	LR126079 MUFFLER - CENTRE From: K2000001	-	1	Enquire
