Name: Rear Exhaust System (Solihull Plant Build) (3.0 V6 D Gen2 Mono Turbo, Stage V Plus DPF, Proconve L6 Emissions) ((V) FROMHA000001)
Rating: 4.5 (1 reviews)

Rear Exhaust System (Solihull Plant Build) (3.0 V6 D Gen2 Mono Turbo, Stage V Plus DPF, Proconve L6 Emissions) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Rear Exhaust System (Solihull Plant Build) (3.0 V6 D Gen2 Mono Turbo, Stage V Plus DPF, Proconve L6...

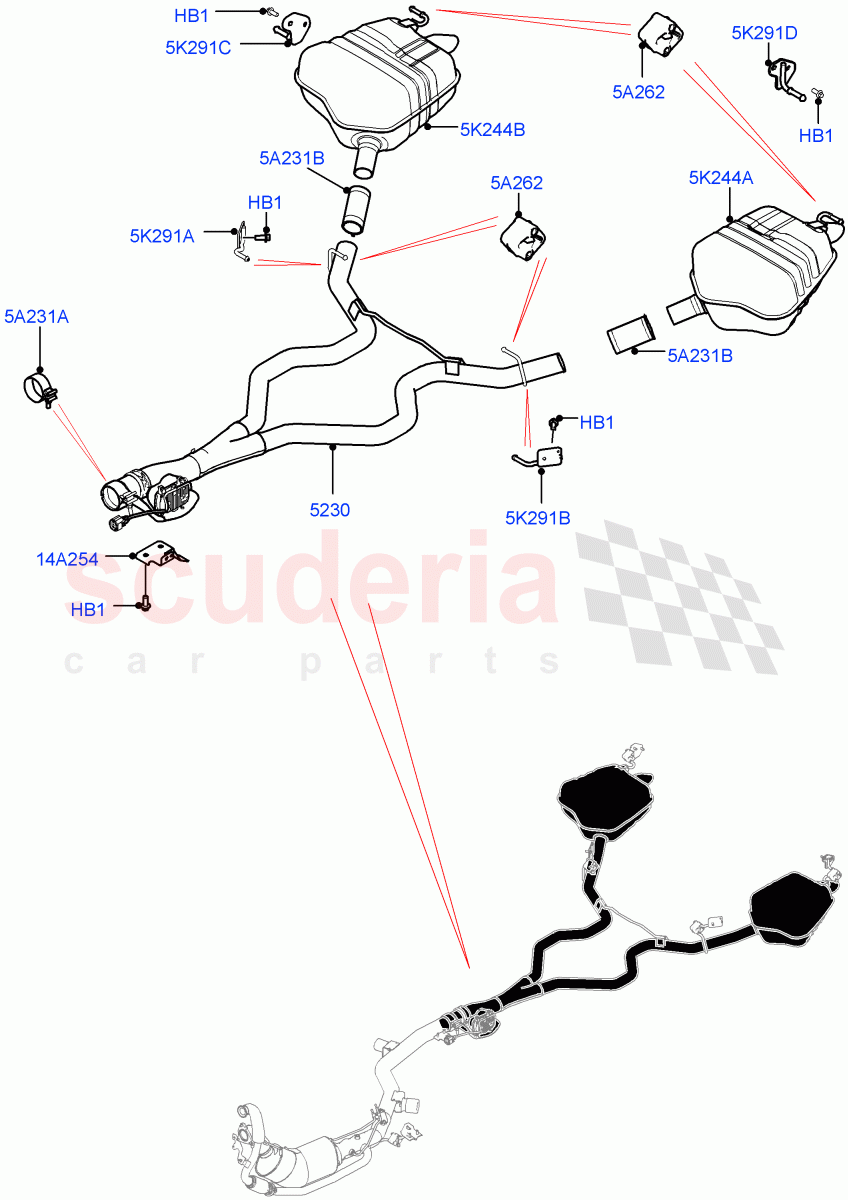

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR088304	MUFFLER - CENTER	$1,011.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$23.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063031	BRACKET - WIRING CONNECTOR	$16.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036441	CLAMP - EXHAUST	$29.81	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500030	CLAMP - EXHAUST	$81.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088310	MUFFLER - REAR	$731.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088309	MUFFLER - REAR	$731.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088295	BRACKET - EXHAUST	$29.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088302	BRACKET - EXHAUST	$29.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082704	BRACKET - REAR MUFFLER	$47.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082707	BRACKET - REAR MUFFLER	$47.31	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Bracket, Hexagonal Head, M8 X 20MM IN STOCK	$2.23	8
5A231A	LR036441	CLAMP - EXHAUST	LR036441 CLAMP - EXHAUST 70MM, Front	$29.81	1
5A231B	WCL500030	CLAMP - EXHAUST	WCL500030 CLAMP - EXHAUST 55MM, Rear	$81.53	2
5A262	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER	$23.23	4
5K244A	LR088310	MUFFLER - REAR	LR088310 MUFFLER - REAR LH	$731.25	1
5K244B	LR088309	MUFFLER - REAR	LR088309 MUFFLER - REAR RH	$731.25	1
5K291A	LR088295	BRACKET - EXHAUST	LR088295 BRACKET - EXHAUST RH	$29.38	1
5K291B	LR088302	BRACKET - EXHAUST	LR088302 BRACKET - EXHAUST LH	$29.38	1
5K291C	LR082704	BRACKET - REAR MUFFLER	LR082704 BRACKET - REAR MUFFLER RH Rear	$47.31	1
5K291D	LR082707	BRACKET - REAR MUFFLER	LR082707 BRACKET - REAR MUFFLER LH Rear	$47.31	1
14A254	LR063031	BRACKET - WIRING CONNECTOR	LR063031 BRACKET - WIRING CONNECTOR	$16.10	1
5230	LR088304	MUFFLER - CENTER	LR088304 MUFFLER - CENTER	$1,011.10	1

Rear Exhaust System (Solihull Plant Build) (3.0 V6 D Gen2 Mono Turbo, Stage V Plus Dpf, Proconve L6...

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Rear Exhaust System (Solihull Plant Build) (3.0 V6 D Gen2 Mono Turbo, Stage V Plus DPF, Proconve L6...
