Name: Rear Exhaust System (Rear Section) (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil), With 7 Seat Configuration) ((V) FROMGT000001)
Rating: 5.0 (1 reviews)

Rear Exhaust System (Rear Section) (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil), With 7 Seat Configuration) ((V) FROMGT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Rear Exhaust System (Rear Section) (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil), With 7 Seat...

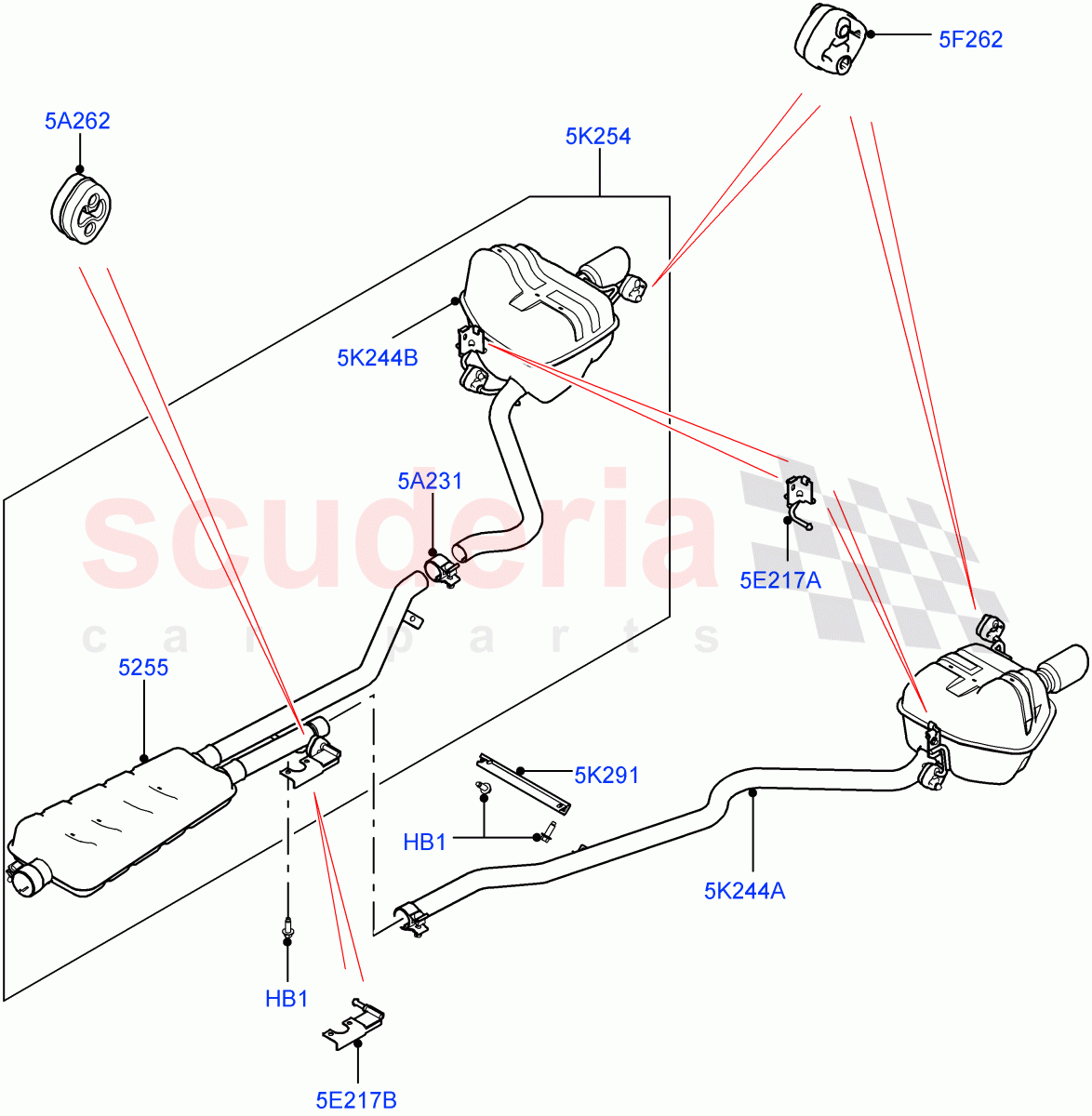

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061674	MUFFLER - CENTRE	$377.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068436	CLAMP	$97.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	$11.29	To Order
	LR000593	INSULATOR - RUBBER	$11.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017444	INSULATOR - RUBBER	$25.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075456	MUFFLER - REAR	$1,208.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR065244	BRACKET - EXHAUST PIPE MOUNTING	$45.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078531	BRACKET - EXHAUST PIPE MOUNTING	$12.93	To Order
	LR078532	BRACKET - EXHAUST PIPE MOUNTING	$18.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078530	BRACKET - EXHAUST PIPE MOUNTING	$13.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075430	MUFFLER - REAR	$783.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068438	MUFFLER - REAR	$806.49	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500440	BOLT	RYG500440 BOLT Hexagonal Head, M8 X 20MM / From: GT000001	$0.99	8
5A231	LR068436	CLAMP	LR068436 CLAMP 45MM / From: GT000001	$97.63	1
5A262	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER Less Spare Wheel / From: GT000001	$11.29	1
5A262	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER Spare Wheel - Reduced Section Steel, With 7 Seat Configuration, With Tool Kit / From: GT000001	$11.29	3
5E217A	LR078531	BRACKET - EXHAUST PIPE MOUNTING	LR078531 BRACKET - EXHAUST PIPE MOUNTING Rear RH, To Body / From: GT000001	$12.93	1
5E217A	LR078532	BRACKET - EXHAUST PIPE MOUNTING	LR078532 BRACKET - EXHAUST PIPE MOUNTING LH Rear, To Body / From: GT000001	$18.86	1
5E217B	LR078530	BRACKET - EXHAUST PIPE MOUNTING	LR078530 BRACKET - EXHAUST PIPE MOUNTING To Body / From: GT000001	$13.57	1
5F262	LR017444	INSULATOR - RUBBER	LR017444 INSULATOR - RUBBER Rear / From: GT000001	$25.10	4
5K244A	LR075430	MUFFLER - REAR	LR075430 MUFFLER - REAR LH Rear / From: GT000001	$783.31	1
5K244B	LR068438	MUFFLER - REAR	LR068438 MUFFLER - REAR RH Rear / From: GT000001	$806.49	1
5K254	LR075456	MUFFLER - REAR	LR075456 MUFFLER - REAR Centre Front, RH Rear / From: GT000001	$1,208.99	1
5K291	LR065244	BRACKET - EXHAUST PIPE MOUNTING	LR065244 BRACKET - EXHAUST PIPE MOUNTING From: GT000001	$45.34	1
5255	LR061674	MUFFLER - CENTRE	LR061674 MUFFLER - CENTRE From: GT000001	$377.78	1
