Name: Front Exhaust System (Front Section) (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V) FROMGT000001)
Rating: 4.2 (1 reviews)

Front Exhaust System (Front Section) (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Front Exhaust System (Front Section) (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V)...

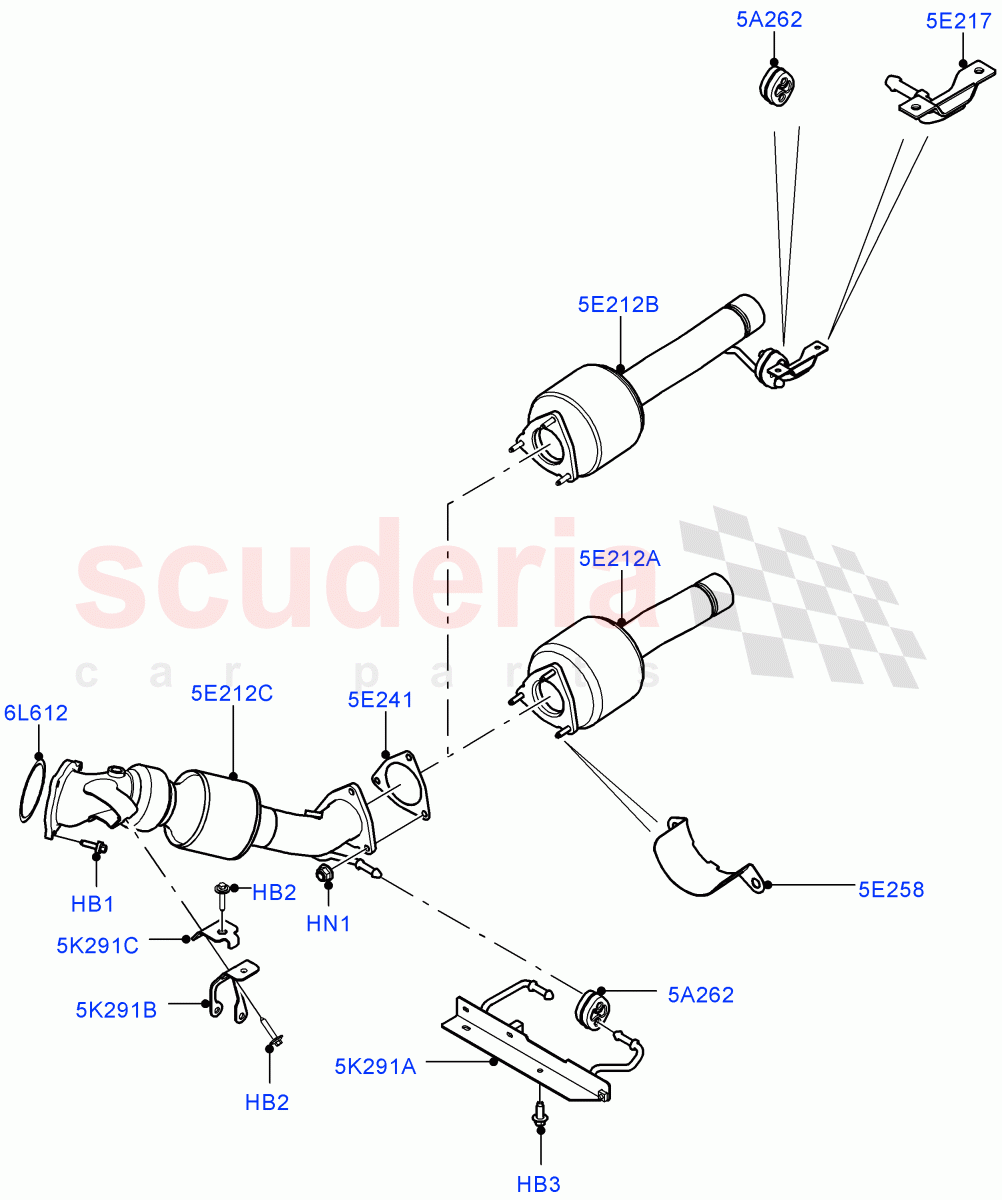

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR005738	BOLT	$2.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057202	BOLT AND WASHER - HEX.HEAD	$2.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500230	BOLT - HEX.HEAD	$1.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR027177	NUT	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	$11.29	To Order
	LR000593	INSULATOR - RUBBER	$11.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025109	BRACKET - EXHAUST PIPE MOUNTING	$35.43	To Order

Photo	Part No	Description	Price (each)	Stock
	WCM500120	GASKET - EXHAUST PIPE	$11.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR032162	SHIELD - EXHAUST PIPE	$48.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025110	GASKET - EXHAUST PIPE	$16.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR068416	CATALYTIC CONVERTER	$684.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060589	CATALYTIC CONVERTER	$556.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067412	CATALYTIC CONVERTER	$1,251.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077874	BRACKET - EXHAUST PIPE MOUNTING	$24.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049879	BRACKET - EXHAUST PIPE MOUNTING	$61.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028996	BRACKET - EXHAUST PIPE MOUNTING	$9.39	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR005738	BOLT	LR005738 BOLT M8 x 31MM / From: GT000001	$2.54	3
HB2	LR057202	BOLT AND WASHER - HEX.HEAD IN STOCK	LR057202 BOLT AND WASHER - HEX.HEAD M8 x 40MM / From: GT000001 IN STOCK	$2.32	2
HB3	RYG500230	BOLT - HEX.HEAD IN STOCK	RYG500230 BOLT - HEX.HEAD Hexagonal Head, M8 X 20MM / From: GT000001 IN STOCK	$1.36	2
HN1	LR027177	NUT	LR027177 NUT M8 / From: GT000001	$0.78	1
5A262	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER Spare Wheel - Reduced Section Steel, With 7 Seat Configuration, With Tool Kit / From: GT000001	$11.29	3
5A262	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER Less Spare Wheel, Less Tool Kit, With 7 Seat Configuration / From: GT000001	$11.29	2
5E212A	LR068416	CATALYTIC CONVERTER	LR068416 CATALYTIC CONVERTER With 5 Seat Configuration / Catalyst Assy, Secondary / From: GT000001	$684.67	1
5E212B	LR060589	CATALYTIC CONVERTER	LR060589 CATALYTIC CONVERTER With 7 Seat Configuration, With Tool Kit / Catalyst Assy, Secondary / From: GT000001	$556.40	1
5E212C	LR067412	CATALYTIC CONVERTER	LR067412 CATALYTIC CONVERTER Catalyst Assy, Primary / From: GT000001	$1,251.02	1
5E217	LR025109	BRACKET - EXHAUST PIPE MOUNTING	LR025109 BRACKET - EXHAUST PIPE MOUNTING With 7 Seat Configuration, With Tool Kit / From: GT000001	$35.43	1
5E241	WCM500120	GASKET - EXHAUST PIPE IN STOCK	WCM500120 GASKET - EXHAUST PIPE Catalyst Assy, Rear / From: GT000001 IN STOCK	$11.97	1
5E258	LR032162	SHIELD - EXHAUST PIPE	LR032162 SHIELD - EXHAUST PIPE Exhaust pipe / From: GT000001	$48.06	1
5K291A	LR077874	BRACKET - EXHAUST PIPE MOUNTING	LR077874 BRACKET - EXHAUST PIPE MOUNTING Double, Front / From: GT000001	$24.95	1
5K291B	LR049879	BRACKET - EXHAUST PIPE MOUNTING	LR049879 BRACKET - EXHAUST PIPE MOUNTING Catalyst Assy, Front / From: GT000001	$61.87	1
5K291C	LR028996	BRACKET - EXHAUST PIPE MOUNTING	LR028996 BRACKET - EXHAUST PIPE MOUNTING Catalyst Assy, Front / From: GT000001	$9.39	1
6L612	LR025110	GASKET - EXHAUST PIPE IN STOCK	LR025110 GASKET - EXHAUST PIPE Catalyst Assy, Front / From: GT000001 IN STOCK	$16.05	1
