Exhaust System (Front Section) (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK)) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Exhaust System (Front Section) (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK))

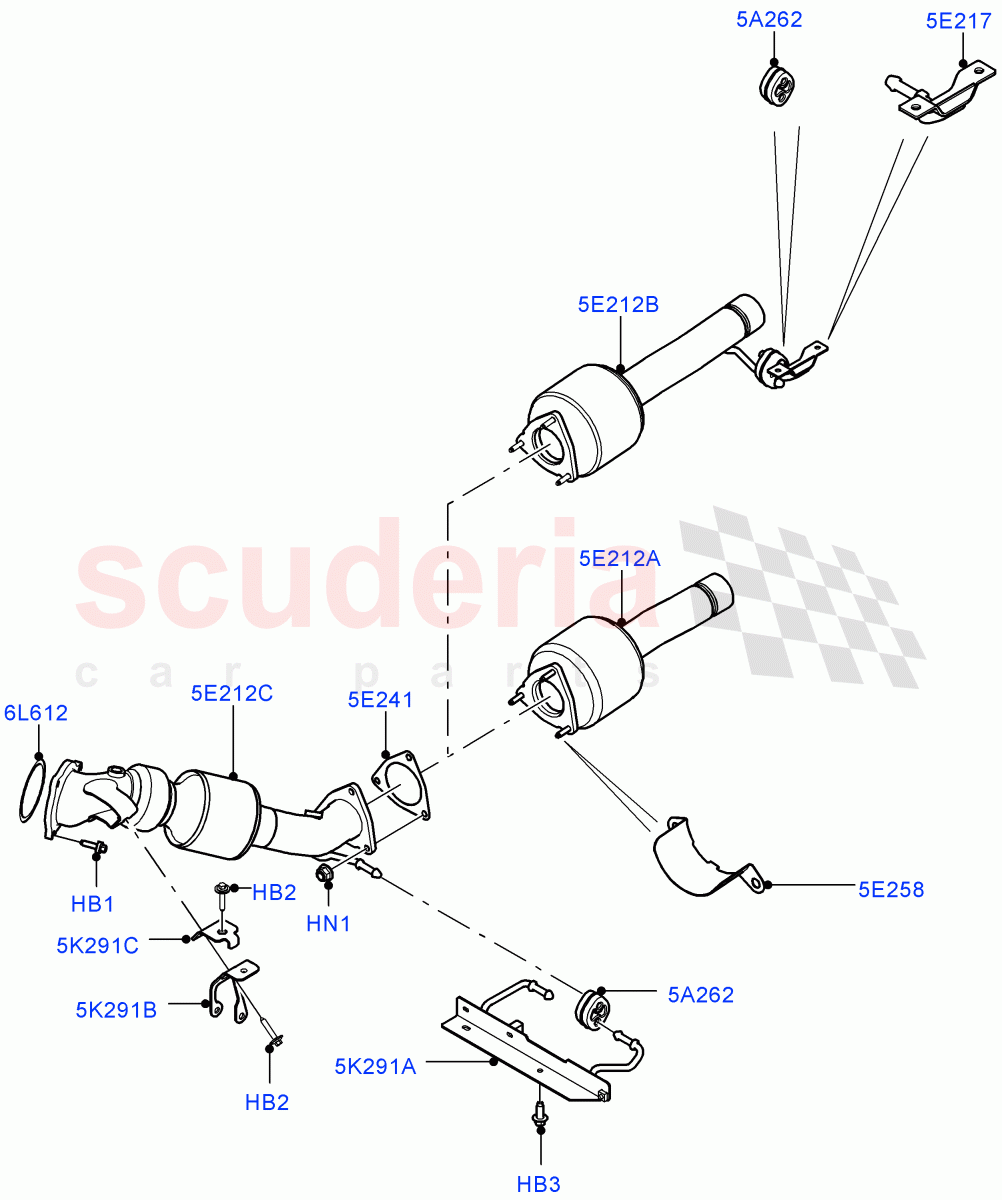

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR005738	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057202	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500230	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027177	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	Enquire	To Order
	LR000593	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025109	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WCM500120	GASKET - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032162	SHIELD - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025110	GASKET - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068416	CATALYTIC CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060589	CATALYTIC CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067412	CATALYTIC CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024227	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order
	LR077874	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049879	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028996	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR005738	BOLT	LR005738 BOLT M8 x 31MM	-	3	Enquire
HB2	LR057202	BOLT AND WASHER - HEX.HEAD	LR057202 BOLT AND WASHER - HEX.HEAD M8 x 40MM	-	2	Enquire
HB3	RYG500230	BOLT - HEX.HEAD	RYG500230 BOLT - HEX.HEAD Hexagonal Head, M8 X 20MM	-	2	Enquire
HN1	LR027177	NUT	LR027177 NUT M8	-	3	Enquire
5A262	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER Spare Wheel - Reduced Section Steel, With 7 Seat Configuration, With Tool Kit	-	3	Enquire
5A262	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER Less Spare Wheel, Less Tool Kit, With 7 Seat Configuration	-	2	Enquire
5E212A	LR068416	CATALYTIC CONVERTER	LR068416 CATALYTIC CONVERTER With 5 Seat Configuration / Catalyst Assy, Secondary	-	1	Enquire
5E212B	LR060589	CATALYTIC CONVERTER	LR060589 CATALYTIC CONVERTER Spare Wheel - Reduced Section Steel, With 7 Seat Configuration, With Tool Kit / Catalyst Assy, Secondary	-	1	Enquire
5E212C	LR067412	CATALYTIC CONVERTER	LR067412 CATALYTIC CONVERTER Catalyst Assy, Primary	-	1	Enquire
5E217	LR025109	BRACKET - EXHAUST PIPE MOUNTING	LR025109 BRACKET - EXHAUST PIPE MOUNTING With 7 Seat Configuration, With Tool Kit	-	1	Enquire
5E241	WCM500120	GASKET - EXHAUST PIPE	WCM500120 GASKET - EXHAUST PIPE Catalyst Assy, Rear	-	1	Enquire
5E258	LR032162	SHIELD - EXHAUST PIPE	LR032162 SHIELD - EXHAUST PIPE Exhaust pipe	-	1	Enquire
5K291A	LR024227	BRACKET - EXHAUST PIPE MOUNTING	LR024227 BRACKET - EXHAUST PIPE MOUNTING Double, Front / To: GH593043	-	1	Enquire
5K291A	LR077874	BRACKET - EXHAUST PIPE MOUNTING	LR077874 BRACKET - EXHAUST PIPE MOUNTING Double, Front / From: GH593044	-	1	Enquire
5K291B	LR049879	BRACKET - EXHAUST PIPE MOUNTING	LR049879 BRACKET - EXHAUST PIPE MOUNTING Catalyst Assy, Front	-	1	Enquire
5K291C	LR028996	BRACKET - EXHAUST PIPE MOUNTING	LR028996 BRACKET - EXHAUST PIPE MOUNTING Catalyst Assy, Front	-	1	Enquire
6L612	LR025110	GASKET - EXHAUST PIPE	LR025110 GASKET - EXHAUST PIPE Catalyst Assy, Front	-	1	Enquire
