Name: Exhaust System (Rear Section) (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK), With 5 Seat Configuration, 2.0L 16V TIVCT T/C Gen2 Petrol)
Rating: 5.0 (1 reviews)

Exhaust System (Rear Section) (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK), With 5 Seat Configuration, 2.0L 16V TIVCT T/C Gen2 Petrol) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Exhaust System (Rear Section) (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK), With 5 Seat...

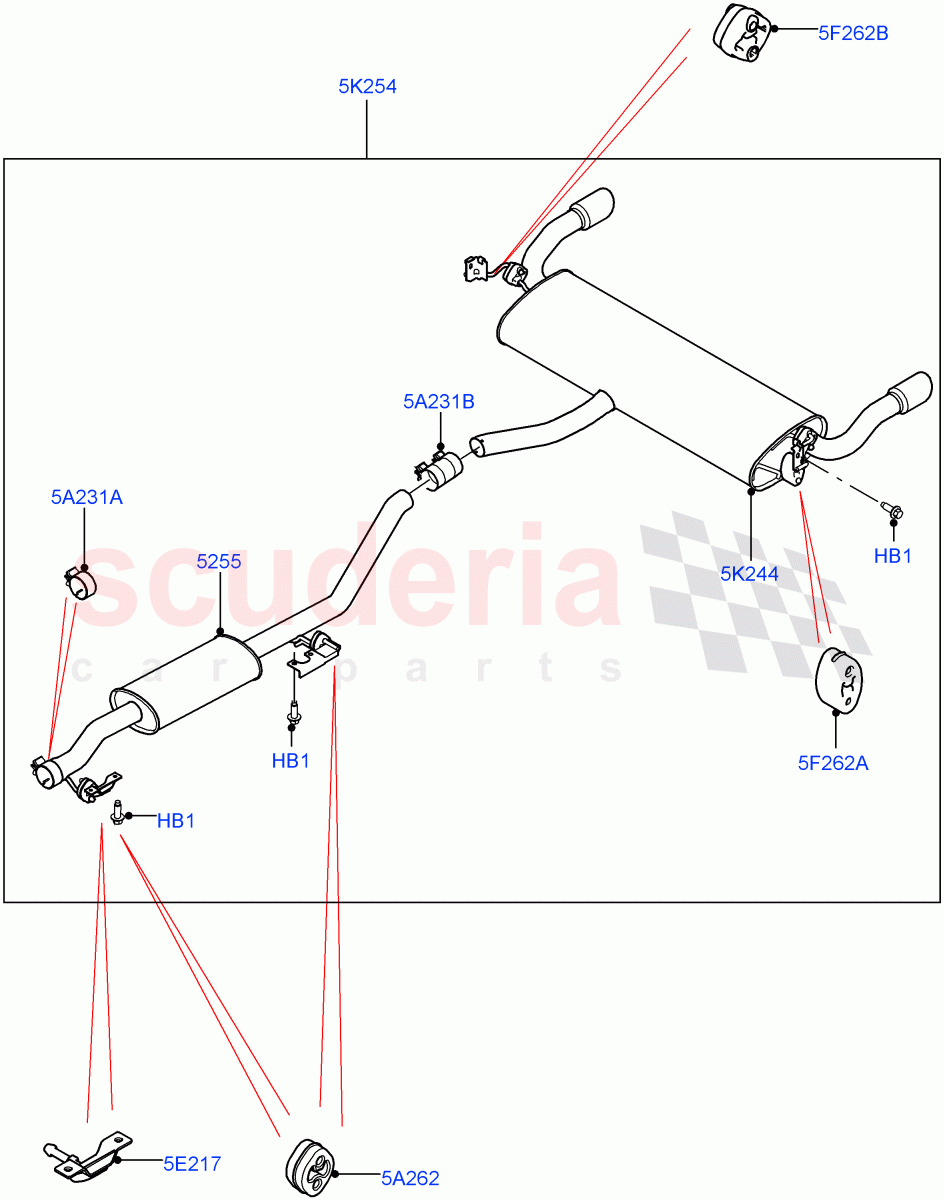

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068437	PIPE - EXHAUST	$740.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	$11.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025109	BRACKET - EXHAUST PIPE MOUNTING	$35.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068439	MUFFLER - REAR	$1,134.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060582	MUFFLER - REAR	$1,201.95	To Order
	LR077059	MUFFLER - REAR	$1,122.02	To Order
	LR093642	MUFFLER - REAR	$1,201.95	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR079315	CLAMP	$31.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015370	CLAMP	$101.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004549	INSULATOR - RUBBER	$11.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017444	INSULATOR - RUBBER	$25.10	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500440	BOLT	RYG500440 BOLT Hexagonal Head, M8 X 20MM	$0.99	6
5A231A	LR079315	CLAMP	LR079315 CLAMP 60MM, Front	$31.65	1
5A231B	LR015370	CLAMP	LR015370 CLAMP Dual Exhaust / 55MM, Rear	$101.10	1
5A262	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER Front	$11.29	2
5E217	LR025109	BRACKET - EXHAUST PIPE MOUNTING	LR025109 BRACKET - EXHAUST PIPE MOUNTING Front	$35.43	1
5F262A	LR004549	INSULATOR - RUBBER	LR004549 INSULATOR - RUBBER LH Rear	$11.59	1
5F262B	LR017444	INSULATOR - RUBBER	LR017444 INSULATOR - RUBBER Rear	$25.10	2
5K244	LR068439	MUFFLER - REAR	LR068439 MUFFLER - REAR Dual Exhaust	$1,134.94	1
5K254	LR060582	MUFFLER - REAR	LR060582 MUFFLER - REAR Dual Exhaust / To: FH530185	$1,201.95	1
5K254	LR077059	MUFFLER - REAR	LR077059 MUFFLER - REAR Dual Exhaust / From: FH530186 / To: GH632220	$1,122.02	1
5K254	LR093642	MUFFLER - REAR	LR093642 MUFFLER - REAR Dual Exhaust / From: GH632221 / To: HH686666	$1,201.95	1
5K254	LR102001	MUFFLER - REAR	LR102001 MUFFLER - REAR Dual Exhaust / From: HH686667	$1,178.35	1
5K254	LR084731	MUFFLER - REAR	LR084731 MUFFLER - REAR Dual Exhaust - Dynamic / From: GH000001 / To: GH632328	$1,209.41	1
5K254	LR093652	MUFFLER - REAR	LR093652 MUFFLER - REAR Dual Exhaust - Dynamic / From: GH632329 / To: HH646198	$1,185.67	1
5K254	LR094769	MUFFLER - REAR	LR094769 MUFFLER - REAR Dual Exhaust - Dynamic / From: HH646199 / To: HH686536	$1,185.69	1
5K254	LR102000	MUFFLER - REAR	LR102000 MUFFLER - REAR Dual Exhaust - Dynamic / From: HH686537	$1,288.70	1
5255	LR068437	PIPE - EXHAUST	LR068437 PIPE - EXHAUST Dual Exhaust	$740.83	1
