Fuel Tank & Related Parts (2.0L I4 High Dohc Aj200 Petrol, 2.0L I4 Mid Dohc Aj200 Petrol, 2.0L I4...

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Fuel Tank & Related Parts (2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR088949 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR002225 BOLT AND WASHER - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR061655 CLAMP - FUEL SUPPLY TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR003643 NUT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
RYQ500170 RETAINER - RIVET Enquire To Order
LR115125 RETAINER - RIVET Enquire To Order
Photo Part No Description Price (each) Stock
LR084558 TANK - FUEL Enquire To Order
LR101577 TANK - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR092779 CAP - FUEL TANK FILLER Enquire To Order
LR181511 CAP - FUEL TANK FILLER Enquire To Order
202123475 CAP - FUEL TANK FILLER Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR072674 PIPE - FUEL FILLER Enquire To Order
LR104307 PIPE - FUEL FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR061055 HOSE - FILLER PIPE Enquire To Order
LR104413 HOSE - FILLER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR060352 HOSE - VENT Enquire To Order
Photo Part No Description Price (each) Stock
LR094244 STRAP - FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
LR094242 STRAP - FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
LR077096 HEAT SHIELD - PROPSHAFT BEARING Enquire To Order
Photo Part No Description Price (each) Stock
LR021822 CAP - FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR112839 SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
LR076312 SHIELD - FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
LR063975 MOULDING - FUEL TANK PROTECTION Enquire To Order
Photo Part No Description Price (each) Stock
LR060825 FOAM PAD - ENERGY ABSORBING Enquire To Order
Photo Part No Description Price (each) Stock
LR060826 FOAM PAD - ENERGY ABSORBING Enquire To Order
Photo Part No Description Price (each) Stock
LR025789 FOAM PAD - ENERGY ABSORBING Enquire To Order
Photo Part No Description Price (each) Stock
LR061784 FOAM PAD - ENERGY ABSORBING Enquire To Order
View All

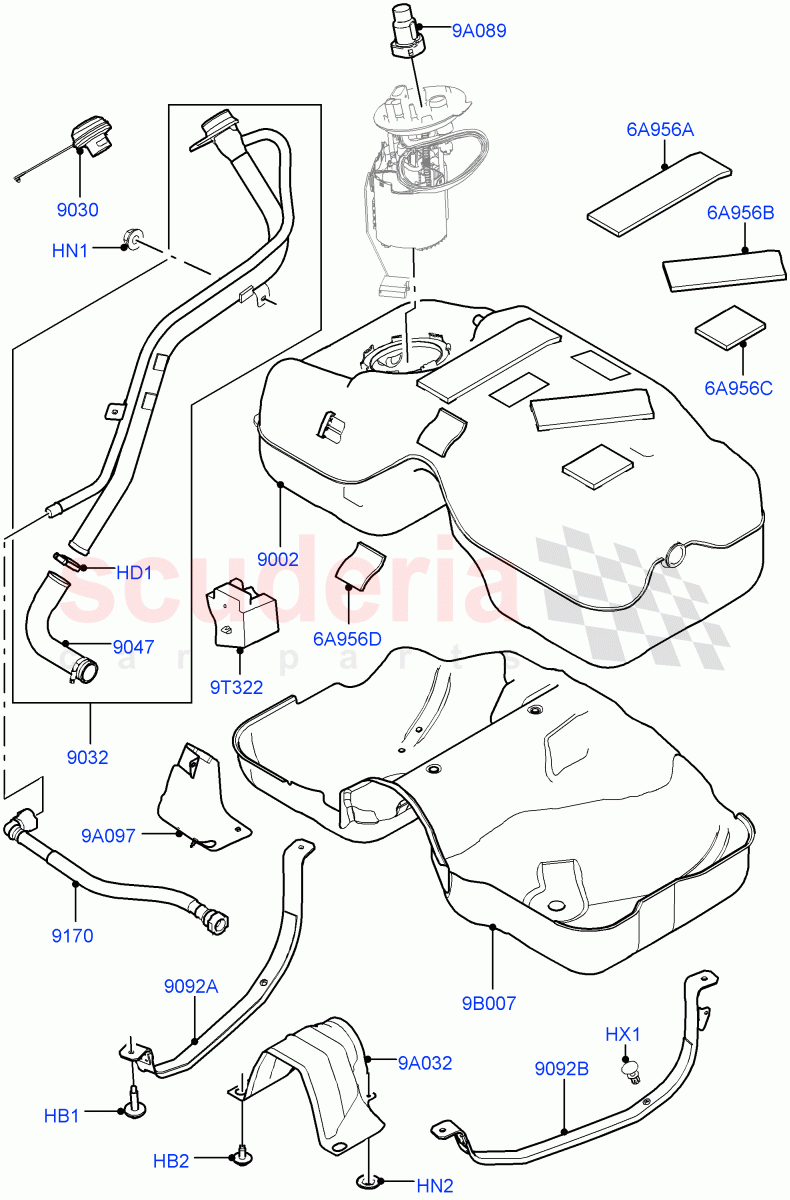

Fuel Tank & Related Parts (2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 Mid AJ200 Petrol E100) ((V) FROMJH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR088949
BOLT
Fuel Tank Strap, M6 X 40MM / From: JH000001 		- 4 Enquire
HB2 LR002225
BOLT AND WASHER - HEX.HEAD
Front, Heatshield, M8 X 21MM / From: JH000001 		- 2 Enquire
HD1 LR061655
CLAMP - FUEL SUPPLY TUBE
35-50 x 9 / From: JH000001 		- 1 Enquire
HN1 LR003643
NUT - SPECIAL
Heatshield, M5 / From: JH000001 		- 2 Enquire
HN2 FN106046
NUT - HEX.
FILLER, Hexagonal Head, M6 / From: JH000001 		- 2 Enquire
HX1 RYQ500170
RETAINER - RIVET
Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: JH000001 / To: JH762920 		- 2 Enquire
HX1 LR115125
RETAINER - RIVET
Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: JH762921 		- 2 Enquire
6A956A LR060825
FOAM PAD - ENERGY ABSORBING
290mm x 80mm x 10mm / From: JH000001 		- 1 Enquire
6A956B LR060826
FOAM PAD - ENERGY ABSORBING
210mm x 80mm x 10mm / From: JH000001 		- 1 Enquire
6A956C LR025789
FOAM PAD - ENERGY ABSORBING
100mm x 80mm x 10mm / From: JH000001 		- 1 Enquire
6A956D LR061784
FOAM PAD - ENERGY ABSORBING
Pet Tank W/O Leak Det - Std Filter / 85mm x 65mm x 2mm / From: JH000001 		- 4 Enquire
9A032 LR077096
HEAT SHIELD - PROPSHAFT BEARING
Front / From: JH000001 		- 1 Enquire
9A089 LR021822
CAP - FILLER
Pet Tank With Leak Det - Lrg Filter / From: JH000001 		- 1 Enquire
9A097 LR112839
SHIELD
Filler Pipe / From: JH000001 		- 1 Enquire
9B007 LR076312
SHIELD - FUEL TANK
Main / From: JH000001 		- 1 Enquire
9T322 LR063975
MOULDING - FUEL TANK PROTECTION
From: JH000001 		- 1 Enquire
9002 LR084558
TANK - FUEL
Pet Tank W/O Leak Det - Std Filter / From: JH000001 		- 1 Enquire
9002 LR101577
TANK - FUEL
Petrol Tank With Leak Detection / From: JH000001 		- 1 Enquire
9030 LR092779
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - DMTL / From: JH000001 / To: KH786113 		- 1 Enquire
9030 LR181511
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Unleaded / From: JH000001 		- 1 Enquire
9030 202123475
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - DMTL / From: KH786114 / To: LH877317 		- 1 Enquire
9030 LR138720
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - DMTL / From: LH877318 		- 1 Enquire
9032 LR072674
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Unleaded / From: JH000001 		- 1 Enquire
9032 LR104307
PIPE - FUEL FILLER
Fuel Tank Filler Neck - DMTL / From: JH000001 		- 1 Enquire
9047 LR061055
HOSE - FILLER PIPE
Fuel Tank Filler Neck - Unleaded / From: JH000001 		- 1 Enquire
9047 LR104413
HOSE - FILLER PIPE
Fuel Tank Filler Neck - DMTL / From: JH000001 		- 1 Enquire
9092A LR094244
STRAP - FUEL TANK
RH / From: JH000001 		- 1 Enquire
9092B LR094242
STRAP - FUEL TANK
LH / From: JH000001 		- 1 Enquire
9170 LR060352
HOSE - VENT
Fuel Tank Filler Neck - Unleaded / From: JH000001 		- 1 Enquire
