Carbon Canister (2.0L I4 High DOHC AJ200 Petrol, Fuel Tank Filler Neck - Unleaded, 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 Mid AJ200 Petrol E100) ((V) FROMKH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Carbon Canister (2.0L I4 High DOHC AJ200 Petrol, Fuel Tank Filler Neck - Unleaded, 2.0L I4 Mid DOHC...

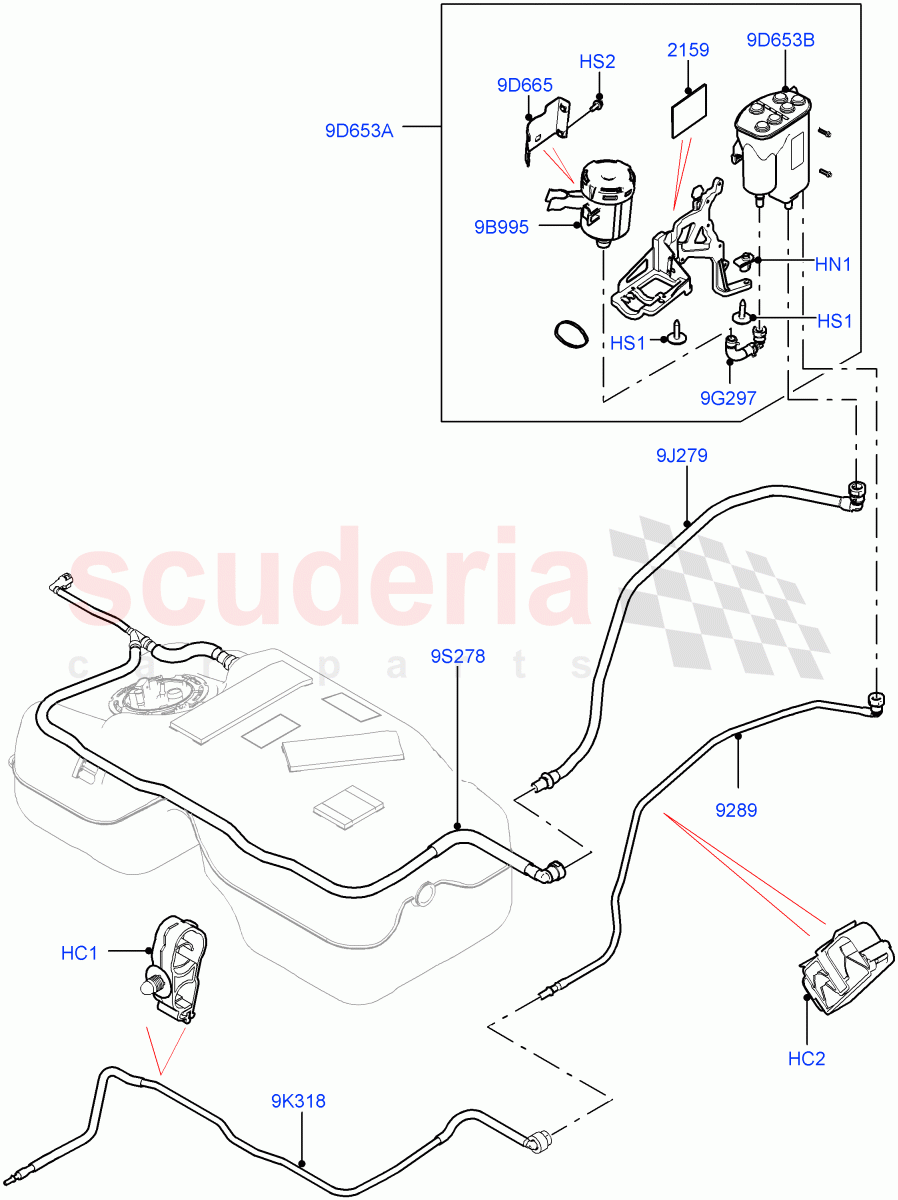

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR006655	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060351	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SDG500030	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS105126	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048459	PAD - FOAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114731	TUBE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027066	FILTER - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113606	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091260	FILTER - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113604	TUBE - VENTILATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114730	TUBE - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114351	TUBE - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113607	CANNISTER - FUEL VAPOUR STORE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027061	RESERVOIR - FUEL VAPOUR SYSTEM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR006655	CLIP	LR006655 CLIP 14+12-20.5 X 7.5 X 1-3 / From: KH000001	-	3	Enquire
HC2	LR060351	CLIP - HOSE	LR060351 CLIP - HOSE From: KH000001	-	3	Enquire
HN1	LR000053	NUT - FLANGED	LR000053 NUT - FLANGED M6 / From: KH000001	-	1	Enquire
HS1	SDG500030	SCREW	SDG500030 SCREW M6 x 27MM, Screw And Washer / From: KH000001	-	2	Enquire
HS2	FS105126	SCREW	FS105126 SCREW M5 X 12MM / From: KH000001	-	2	Enquire
9B995	LR027066	FILTER - FUEL	LR027066 FILTER - FUEL Charcoal Cannister / From: KH000001	-	1	Enquire
9D653A	LR113607	CANNISTER - FUEL VAPOUR STORE	LR113607 CANNISTER - FUEL VAPOUR STORE Charcoal Cannister, With Bracket / From: KH000001	-	1	Enquire
9D653B	LR027061	RESERVOIR - FUEL VAPOUR SYSTEM	LR027061 RESERVOIR - FUEL VAPOUR SYSTEM Charcoal Cannister / From: KH000001	-	1	Enquire
9D665	LR113606	BRACKET	LR113606 BRACKET Filter / From: KH000001	-	1	Enquire
9G297	LR091260	FILTER - FUEL	LR091260 FILTER - FUEL Charcoal Cannister / From: KH000001	-	1	Enquire
9J279	LR113604	TUBE - VENTILATION	LR113604 TUBE - VENTILATION Fuel Tank Ventilation Pipe, Upper / From: KH000001	-	1	Enquire
9K318	LR114730	TUBE - FUEL VAPOUR	LR114730 TUBE - FUEL VAPOUR Lower / From: KH000001	-	1	Enquire
9S278	LR114351	TUBE - FUEL VAPOUR	LR114351 TUBE - FUEL VAPOUR Purge Line From Fuel Tank To Charcoal Canister / From: KH000001	-	1	Enquire
2159	LR048459	PAD - FOAM	LR048459 PAD - FOAM Charcoal Cannister / From: KH000001	-	1	Enquire
9289	LR114731	TUBE - FUEL	LR114731 TUBE - FUEL Inlet Tube, Purge Line From Fuel Tank To Charcoal Canister / From: KH000001	-	1	Enquire
