Fuel Lines (2.0L AJ20P4 Petrol Mid PTA, Changsu (China)) ((V) FROMKG446857) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Fuel Lines (2.0L AJ20P4 Petrol Mid PTA, Changsu (China)) ((V) FROMKG446857)

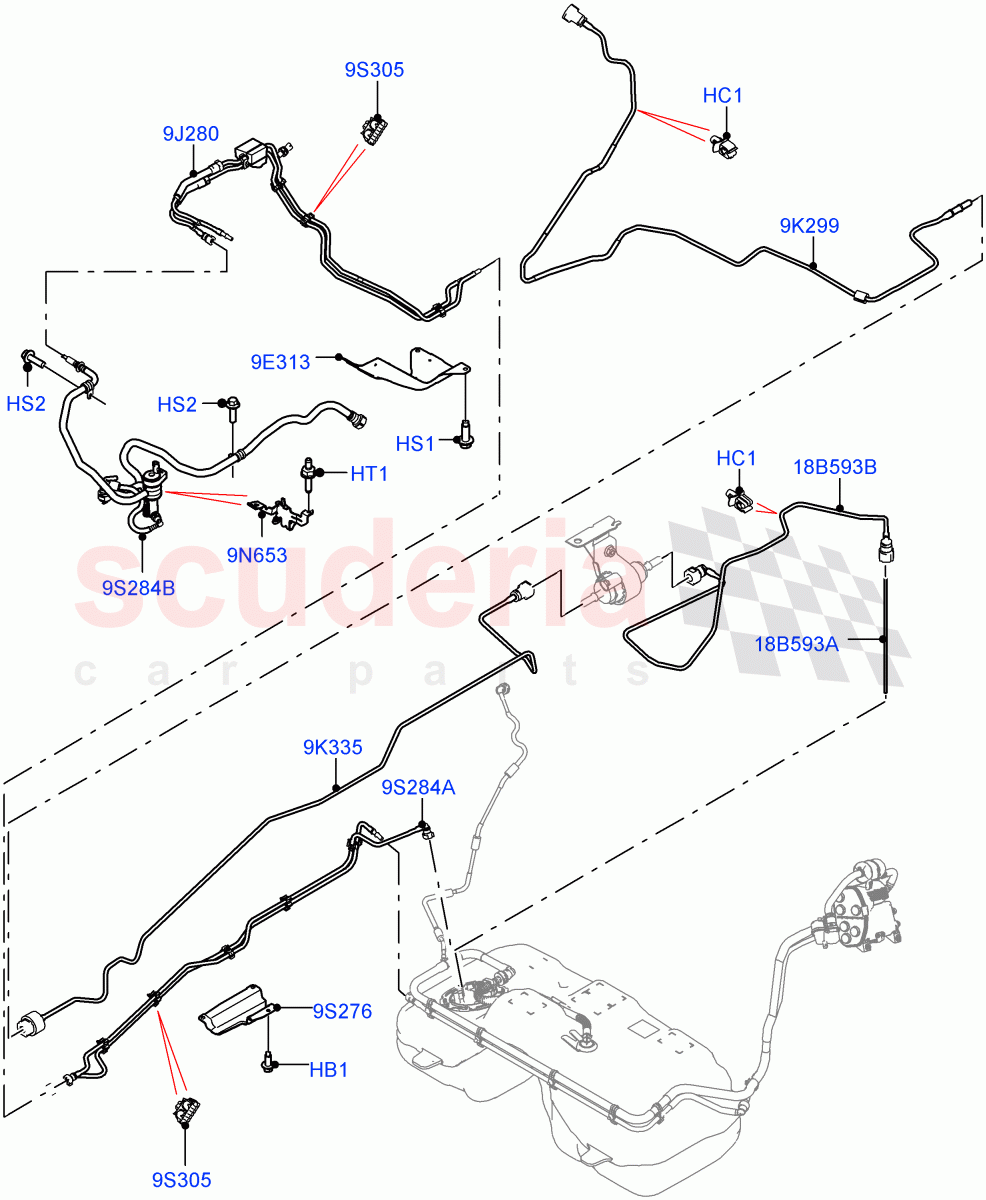

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500200	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113126	CLIP - BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500470	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR089197	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133032	SHIELD - FUEL TUBES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115335	PIPE - FUEL	Enquire	To Order
	LR139134	PIPE - FUEL	Enquire	To Order
	LR139949	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115337	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115338	TUBE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126845	BRACKET - FUEL TUBE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115399	SHIELD - FUEL TUBES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117831	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140537	TUBE - FUEL SUPPLY AND VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126491	TUBE - FUEL SUPPLY AND VAPOUR	Enquire	To Order
	LR162697	TUBE - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115331	TUBE - AUXILIARY HEATER SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126566	TUBE - FUEL SUPPLY	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	RYG500200	BOLT	RYG500200 BOLT Hexagonal Head, M8 X 16MM / From: KG446857	-	3	Enquire
HC1	LR113126	CLIP - BRAKE PIPE	LR113126 CLIP - BRAKE PIPE Fuel Fired Heater With Park Heat / 4.75X8X0.8-4, Fuel Fired Heater Pipe, Single / From: KG446857	-	6	Enquire
HS1	RYG500470	SCREW	RYG500470 SCREW Hexagonal Head, M10 X 25MM / From: KG446857	-	3	Enquire
HS2	LR073655	SCREW	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: KG446857	-	2	Enquire
HT1	LR089197	STUD	LR089197 STUD M6 x 22 mm + M6 x 12 mm / From: KG446857	-	1	Enquire
9E313	LR133032	SHIELD - FUEL TUBES	LR133032 SHIELD - FUEL TUBES Front / From: KG446857	-	1	Enquire
9J280	LR115335	PIPE - FUEL	LR115335 PIPE - FUEL Front / From: KG446857 / To: LG115378	-	1	Enquire
9J280	LR139134	PIPE - FUEL	LR139134 PIPE - FUEL Front / From: LG115379 / To: MG140568	-	1	Enquire
9J280	LR139949	PIPE - FUEL	LR139949 PIPE - FUEL Front / From: MG140569	-	1	Enquire
9K299	LR115337	PIPE - FUEL	LR115337 PIPE - FUEL Fuel Heater W/Pk Heat With Remote / To Fuel Fired Heater / From: KG446857	-	1	Enquire
9K335	LR115338	TUBE - FUEL	LR115338 TUBE - FUEL Fuel Heater W/Pk Heat With Remote / Pump To Heater / From: KG446857	-	1	Enquire
9N653	LR126845	BRACKET - FUEL TUBE SUPPORT	LR126845 BRACKET - FUEL TUBE SUPPORT Purge Valve To Carrier / From: KG446857	-	1	Enquire
9S276	LR115399	SHIELD - FUEL TUBES	LR115399 SHIELD - FUEL TUBES Rear / From: KG446857	-	1	Enquire
9S284A	LR140537	TUBE - FUEL SUPPLY AND VAPOUR	LR140537 TUBE - FUEL SUPPLY AND VAPOUR Rear / From: KG446857	-	1	Enquire
9S284B	LR126491	TUBE - FUEL SUPPLY AND VAPOUR	LR126491 TUBE - FUEL SUPPLY AND VAPOUR Front / From: KG446857 / To: MG140727	-	1	Enquire
9S284B	LR162697	TUBE - FUEL VAPOUR	LR162697 TUBE - FUEL VAPOUR Front / From: MG140728	-	1	Enquire
9S305	LR117831	CLIP	LR117831 CLIP Clip-Fuel Tube(Dual Latch) / From: KG446857	-	1	Enquire
18B593A	LR115331	TUBE - AUXILIARY HEATER SUPPLY	LR115331 TUBE - AUXILIARY HEATER SUPPLY With Fuel Fired Heater / In Tank / From: KG446857	-	1	Enquire
18B593B	LR126566	TUBE - FUEL SUPPLY	LR126566 TUBE - FUEL SUPPLY With Fuel Fired Heater / Tank To Pump / From: KG446857	-	1	Enquire
