Carbon Canister (2.0L Aj20P4 Petrol Mid Pta, Halewood (Uk), Fuel Tank Filler Neck - Dmtl, 2.0L...

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Carbon Canister (2.0L AJ20P4 Petrol Mid PTA, Halewood (UK), Fuel Tank Filler Neck - DMTL, 2.0L...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR006655 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR060351 CLIP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
RYG500900 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR126510 TUBE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR174757 VALVE - CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
LR126506 TUBE - FUEL VAPOUR Enquire To Order
Photo Part No Description Price (each) Stock
LR126511 TUBE - FUEL VAPOUR Enquire To Order
Photo Part No Description Price (each) Stock
LR126507 TUBE - FUEL VAPOUR Enquire To Order
Photo Part No Description Price (each) Stock
LR155104 FILTER - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR121786 FILTER - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR115825 CANNISTER - FUEL VAPOUR STORE Enquire To Order
LR136871 CANNISTER - FUEL VAPOUR STORE Enquire To Order
LR143248 CANNISTER - FUEL VAPOUR STORE Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR027061 RESERVOIR - FUEL VAPOUR SYSTEM Enquire To Order
View All

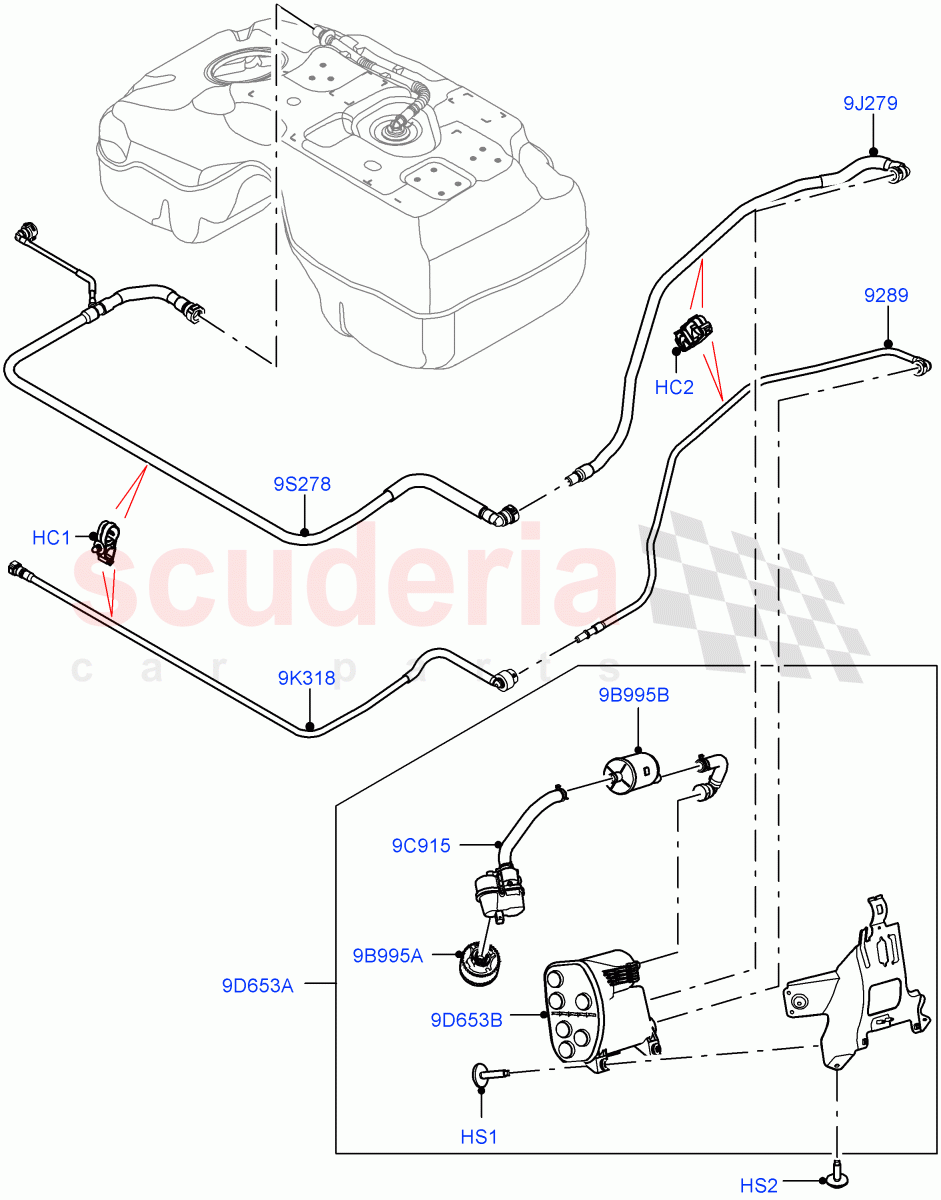

Carbon Canister (2.0L AJ20P4 Petrol Mid PTA, Halewood (UK), Fuel Tank Filler Neck - DMTL, 2.0L AJ20P4 Petrol E100 PTA, 2.0L AJ20P4 Petrol High PTA) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR006655
CLIP
14+12-20.5 X 7.5 X 1-3 / From: LH000001 		- 6 Enquire
HC2 LR060351
CLIP - HOSE
From: LH000001 		- 3 Enquire
HS1 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 / From: LH000001 		- 2 Enquire
HS2 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM / From: LH000001 		- 2 Enquire
9B995A LR155104
FILTER - FUEL
Charcoal Cannister, Lower / From: LH000001 		- 1 Enquire
9B995B LR121786
FILTER - FUEL
Charcoal Cannister, Upper / From: LH000001 		- 1 Enquire
9C915 LR174757
VALVE - CONTROL
Charcoal Cannister / From: LH000001 		- 1 Enquire
9D653A LR115825
CANNISTER - FUEL VAPOUR STORE
Charcoal Cannister, With Bracket / From: LH000001 / To: LH845743 		- 1 Enquire
9D653A LR136871
CANNISTER - FUEL VAPOUR STORE
Charcoal Cannister, With Bracket / From: LH845744 / To: LH999999 		- 1 Enquire
9D653A LR143248
CANNISTER - FUEL VAPOUR STORE
Charcoal Cannister, With Bracket / From: MH000001 / To: NH905252 		- 1 Enquire
9D653A LR156298
CANNISTER - FUEL VAPOUR STORE
With Bracket / From: NH905253 		- 1 Enquire
9D653B LR027061
RESERVOIR - FUEL VAPOUR SYSTEM
Reservoir / From: LH000001 		- 1 Enquire
9J279 LR126506
TUBE - FUEL VAPOUR
Fuel Tank Ventilation Pipe / From: LH000001 		- 1 Enquire
9K318 LR126511
TUBE - FUEL VAPOUR
Lower / From: LH000001 		- 1 Enquire
9S278 LR126507
TUBE - FUEL VAPOUR
Outlet / From: LH000001 		- 1 Enquire
9289 LR126510
TUBE - FUEL
From Carbon Canister To Fuel Lines / From: LH000001 		- 1 Enquire
