Hood And Related Parts (Changsu (China)) ((V) Fromfg000001, (V) Tokg446856)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Hood And Related Parts (Changsu (China)) ((V) FROMFG000001, (V) TOKG446856)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR037087 BOLT AND WASHER - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR002054 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR000061 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR035103 CLIP - CABLE Enquire To Order
Photo Part No Description Price (each) Stock
FY108046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
RYG500780 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR093613 STUD Enquire To Order
LR133252 STUD - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR061279 HOOD Enquire To Order
LR106659 HOOD Enquire To Order
Photo Part No Description Price (each) Stock
LR065339 LATCH - HOOD Enquire To Order
LR065340 LATCH - HOOD Enquire To Order
Photo Part No Description Price (each) Stock
LR075405 HINGE - HOOD Enquire To Order
LR075406 HINGE - HOOD Enquire To Order
LR139329 HINGE - HOOD Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR073063 CATCH - SAFETY Enquire To Order
Photo Part No Description Price (each) Stock
LR051451 CABLE - CONTROL - HOOD Enquire To Order
Photo Part No Description Price (each) Stock
LR076984 INSULATOR Enquire To Order
LR076973 INSULATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR058531 MOULDING - FRONT BODY PANEL Enquire To Order
LR070422 GRILLE - HOOD VENT Enquire To Order
Photo Part No Description Price (each) Stock
LR056535 GUIDE - HOOK HOOD Enquire To Order
Photo Part No Description Price (each) Stock
LR058503 SEAL - BONNET Enquire To Order
Photo Part No Description Price (each) Stock
LR026463 SEAL - HOOD Enquire To Order
LR108768 SEAL - HOOD Enquire To Order
Photo Part No Description Price (each) Stock
LR058502 SEAL - BONNET Enquire To Order
Photo Part No Description Price (each) Stock
LR001777 BUMPER - TAILGATE Enquire To Order
LR076953 SEAL - COVER Enquire To Order
Photo Part No Description Price (each) Stock
LR058830 BUMP STOP Enquire To Order
Photo Part No Description Price (each) Stock
LR002367 LEVER - BONNET RELEASE Enquire To Order
Photo Part No Description Price (each) Stock
LR058829 LIFT - GAS Enquire To Order
LR084691 LIFT - GAS Enquire To Order
Photo Part No Description Price (each) Stock
LR058518 STRIKER - HOOD LOCK Enquire To Order
View All

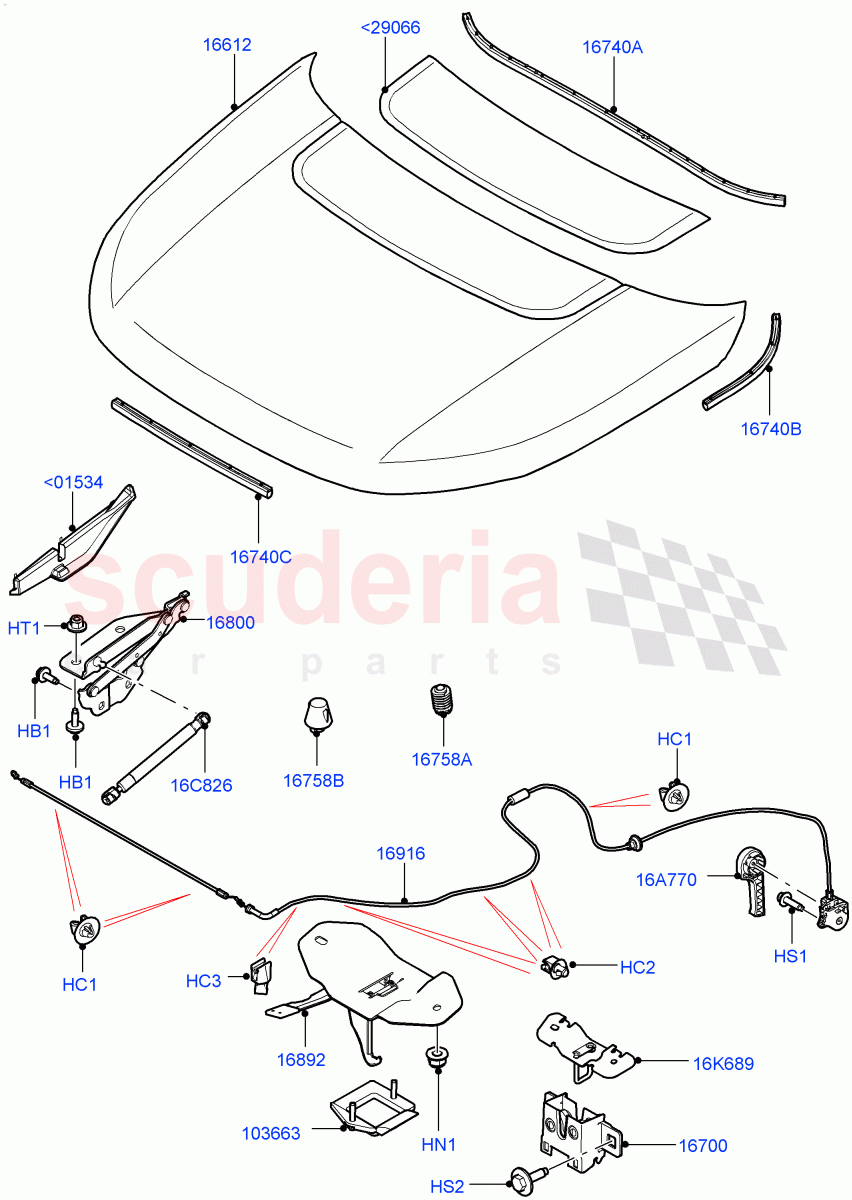

Hood And Related Parts (Changsu (China)) ((V) FROMFG000001, (V) TOKG446856) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<01534 LR076984
INSULATOR
RH / From: FG000001 		- 1 Enquire
<01534 LR076973
INSULATOR
LH / From: FG000001 		- 1 Enquire
<29066 LR058531
MOULDING - FRONT BODY PANEL
Less External Deployable Device, Scuttle Plate - Brunel / From: FG000001 		- 1 Enquire
<29066 LR070422
GRILLE - HOOD VENT
Less External Deployable Device, Scuttle Plate - Black / From: HG347884 		- 1 Enquire
HB1 LR037087
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M8 X 30MM / From: FG000001 		- 4 Enquire
HC1 LR002054
CLIP
4.8MM / From: FG000001 		- 3 Enquire
HC2 LR000061
CLIP
4.8 X 8 X 4, Single / From: FG000001 		- 3 Enquire
HC3 LR035103
CLIP - CABLE
Clip 4.3 - 5.2 X 1 - 3 Pipe Edge Special / From: FG000001 		- 1 Enquire
HN1 FY108046
NUT - HEX.
M8 / From: FG000001 		- 6 Enquire
HS1 RYG500780
SCREW
M6 x 15MM / From: FG000001 		- 1 Enquire
HS2 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM / From: FG000001 		- 4 Enquire
HT1 LR093613
STUD
M6 / From: FG000001 / To: JG429300 		- 4 Enquire
HT1 LR133252
STUD - SPECIAL
M6 / From: JG429301 		- 1 Enquire
16A770 LR002367
LEVER - BONNET RELEASE
From: FG000001 		- 1 Enquire
16C826 LR058829
LIFT - GAS
From: FG000001 / To: GG327790 		- 2 Enquire
16C826 LR084691
LIFT - GAS
From: GG327791 		- 2 Enquire
16K689 LR058518
STRIKER - HOOD LOCK
From: FG000001 		- 2 Enquire
16612 LR061279
HOOD
From: FG000001 / To: JG429300 		- 1 Enquire
16612 LR106659
HOOD
From: JG429301 		- 1 Enquire
16700 LR065339
LATCH - HOOD
Less Sensor, RH/LH / From: GG323111 		- 1 Enquire
16700 LR065340
LATCH - HOOD
RH/LH, With Sensor / From: FG000001 		- 1 Enquire
16740A LR058503
SEAL - BONNET
Rear / From: FG000001 / To: KG446856 		- 1 Enquire
16740B LR026463
SEAL - HOOD
LH / From: FG000001 		- 1 Enquire
16740B LR108768
SEAL - HOOD
RH / From: JG437400 		- 1 Enquire
16740C LR058502
SEAL - BONNET
Front / From: FG000001 		- 1 Enquire
16758A LR001777
BUMPER - TAILGATE
Adjustable / From: FG000001 / To: HG347883 		- 2 Enquire
16758A LR076953
SEAL - COVER
Adjustable / From: HG347884 		- 2 Enquire
16758B LR058830
BUMP STOP
From: FG000001 		- 2 Enquire
16800 LR075405
HINGE - HOOD
RH / From: FG000001 / To: KG446856 		- 1 Enquire
16800 LR075406
HINGE - HOOD
LH / From: FG000001 / To: KG446856 		- 1 Enquire
16800 LR139329
HINGE - HOOD
RH / From: KG446857 		- 1 Enquire
16800 LR139330
HINGE - HOOD
LH / From: KG446857 		- 1 Enquire
16892 LR073063
CATCH - SAFETY
From: FG000001 		- 1 Enquire
16916 LR051451
CABLE - CONTROL - HOOD
From: FG000001 		- 1 Enquire
103663 LR056535
GUIDE - HOOK HOOD
From: FG000001 		- 1 Enquire
