Engine Mounting (2.2L CR DI 16V Diesel, Halewood (UK)) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Engine Mounting (2.2L CR DI 16V Diesel, Halewood (UK))

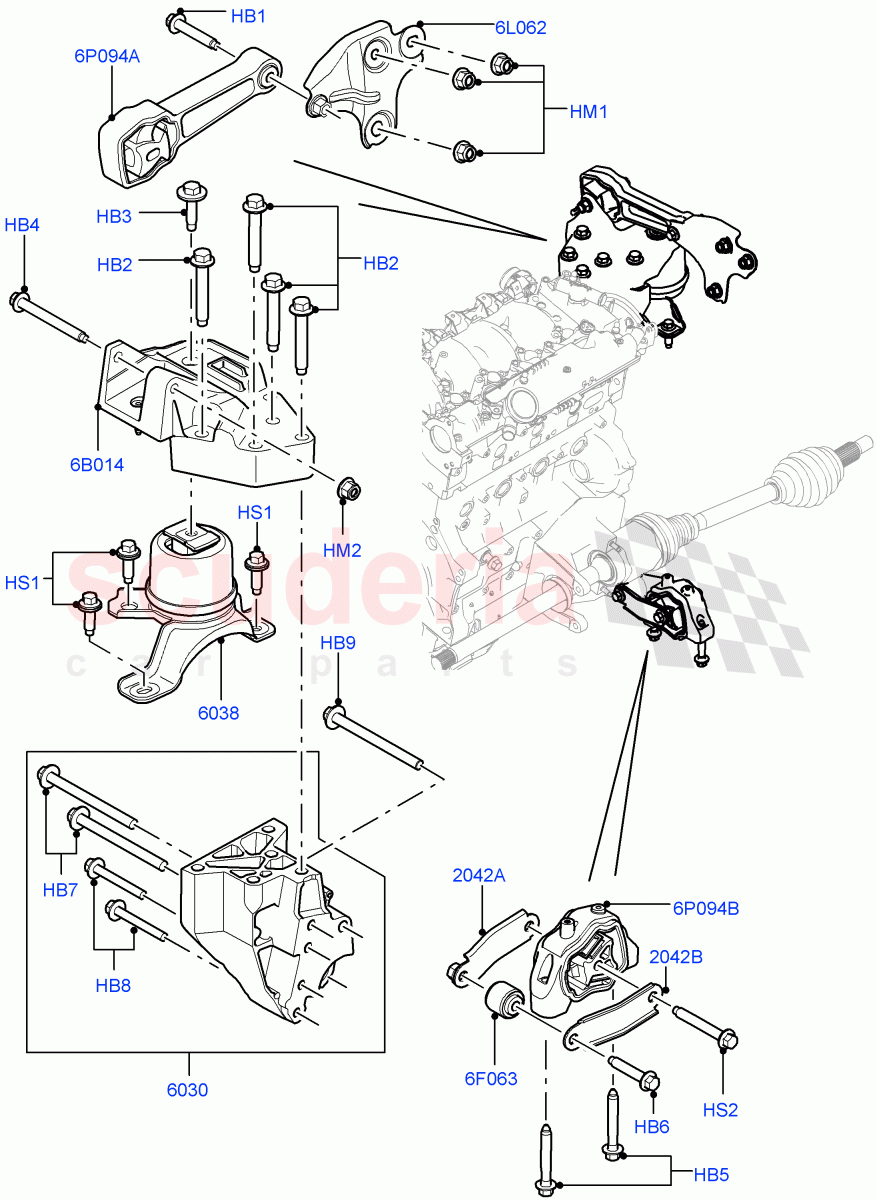

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000039	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500530	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024744	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024747	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000094	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045671	BOLT	Enquire	To Order
	LR080289	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116322	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005487	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002923	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY112046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY112056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501260	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045673	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001216	SUPPORT - ENGINE MOUNTING - FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024729	BRACKET - ENGINE FRONT SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000596	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000598	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047370	BRACKET - ENGINE FRONT SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000520	INSULATOR - STABILIZER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024733	BRACKET - ENGINE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000597	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039527	INSULATOR - ENGINE SUPPORT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR000039	BOLT	LR000039 BOLT Hexagonal Head, M12 x 65MM	-	1	Enquire
HB2	RYG500530	BOLT	RYG500530 BOLT M14 X 80MM	-	5	Enquire
HB3	LR024744	BOLT	LR024744 BOLT Bolt And Washer, M12 x 40MM	-	1	Enquire
HB4	LR024747	BOLT	LR024747 BOLT Hexagonal Head, M12 X 112	-	1	Enquire
HB5	LR000094	BOLT - HEX.HEAD	LR000094 BOLT - HEX.HEAD M12 x 75MM	-	2	Enquire
HB6	LR045671	BOLT	LR045671 BOLT M12 x 65MM / To: GH606654	-	1	Enquire
HB6	LR080289	BOLT	LR080289 BOLT M12 X 60MM / From: GH606655	-	1	Enquire
HB7	LR116322	BOLT	LR116322 BOLT Hexagonal Head, M10 X 105	-	2	Enquire
HB8	LR005487	BOLT	LR005487 BOLT M10 x 94MM	-	2	Enquire
HB9	LR002923	BOLT	LR002923 BOLT Hexagonal Head, M12 X 145	-	1	Enquire
HM1	FY112046	NUT - HEX.	FY112046 NUT - HEX. M12, Nut	-	4	Enquire
HM2	FY112056	NUT - HEX.	FY112056 NUT - HEX. Hex Nut Type, M12	-	1	Enquire
HS1	RYG501260	SCREW AND WASHER	RYG501260 SCREW AND WASHER M12X1.75	-	3	Enquire
HS2	LR045673	SCREW	LR045673 SCREW M12 x 85MM	-	1	Enquire
6B014	LR047370	BRACKET - ENGINE FRONT SUPPORT	LR047370 BRACKET - ENGINE FRONT SUPPORT RH, Engine Mounting	-	1	Enquire
6F063	LR000520	INSULATOR - STABILIZER BAR	LR000520 INSULATOR - STABILIZER BAR Bushing, Rear Side	-	1	Enquire
6L062	LR024733	BRACKET - ENGINE SUPPORT	LR024733 BRACKET - ENGINE SUPPORT RH	-	1	Enquire
6P094A	LR000597	INSULATOR - ENGINE COMPARTMENT	LR000597 INSULATOR - ENGINE COMPARTMENT RH Upper	-	1	Enquire
6P094B	LR039527	INSULATOR - ENGINE SUPPORT	LR039527 INSULATOR - ENGINE SUPPORT Rear Lower	-	1	Enquire
2042A	LR000596	INSULATOR - ENGINE COMPARTMENT	LR000596 INSULATOR - ENGINE COMPARTMENT RH, Insulator, Rear Lower	-	1	Enquire
2042B	LR000598	INSULATOR - ENGINE COMPARTMENT	LR000598 INSULATOR - ENGINE COMPARTMENT LH, Insulator, Rear Lower	-	1	Enquire
6030	LR001216	SUPPORT - ENGINE MOUNTING - FRONT	LR001216 SUPPORT - ENGINE MOUNTING - FRONT RH, Engine	-	1	Enquire
6038	LR024729	BRACKET - ENGINE FRONT SUPPORT	LR024729 BRACKET - ENGINE FRONT SUPPORT Engine Mounting, RH Lower	-	1	Enquire
