Side Panels - Inner (Rear) (Halewood (UK)) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Side Panels - Inner (Rear) (Halewood (UK))

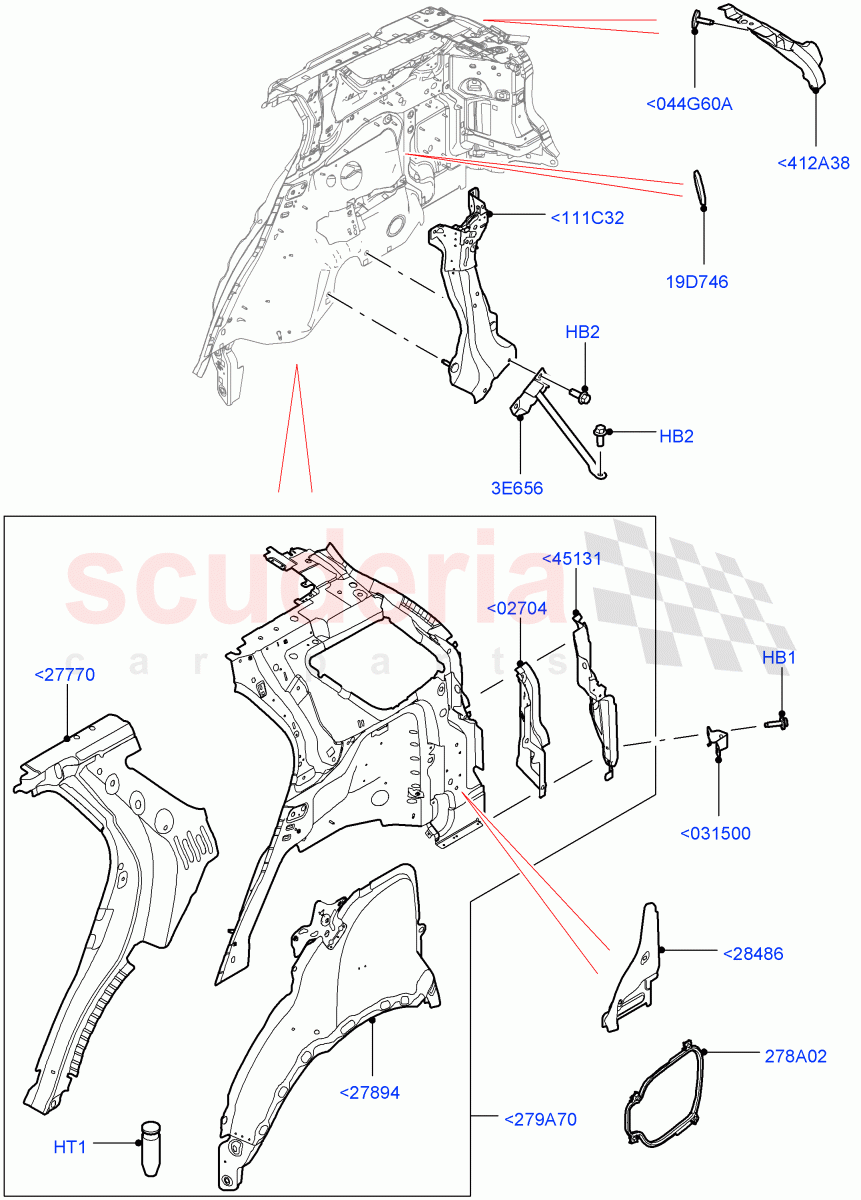

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR037087	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500230	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYR500020	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063773	STRUT - SUSPENSION	Enquire	To Order
	LR063774	PLATE - SUPPORT	Enquire	To Order
	LR128480	PLATE - SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061727	PANEL - REAR LAMP CLOSING	Enquire	To Order
	LR061726	PANEL - REAR LAMP CLOSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061720	REINFORCEMENT - "C" PILLAR	Enquire	To Order
	LR061719	REINFORCEMENT - "C" PILLAR	Enquire	To Order
	LR128455	REINFORCEMENT - "C" PILLAR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR061728	PANEL - WHEELHOUSE - OUTER	Enquire	To Order
	LR061729	PANEL - WHEELHOUSE - OUTER	Enquire	To Order
	LR128457	PANEL - WHEELHOUSE - OUTER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR061088	REINFORCEMENT - OUTER PANEL	Enquire	To Order
	LR061089	REINFORCEMENT - OUTER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061106	PANEL - REAR LAMP CLOSING	Enquire	To Order
	LR061107	PANEL - REAR LAMP CLOSING	Enquire	To Order
	LR072437	PANEL - REAR LAMP CLOSING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR063969	COVERING - PROTECTIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128501	GASKET - FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061367	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR061368	BRACKET - BUMPER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061371	REINFORCEMENT - WHEELHOUSE	Enquire	To Order
	LR061372	REINFORCEMENT - WHEELHOUSE	Enquire	To Order
	LR077423	REINFORCEMENT - WHEELHOUSE	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR061717	PANEL - REAR QUARTER	Enquire	To Order
	LR061718	PANEL - REAR QUARTER	Enquire	To Order
	LR084654	PANEL - REAR QUARTER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR061108	PANEL - "D" PILLAR WATER DRAIN	Enquire	To Order
	LR061109	PANEL - "D" PILLAR WATER DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067408	PIN - TRIM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<044G60A	LR067408	PIN - TRIM	LR067408 PIN - TRIM Tailgate - Hands Free / 5.05 X 2 - 13.5, Blanking	-	2	Enquire
<111C32	LR061371	REINFORCEMENT - WHEELHOUSE	LR061371 REINFORCEMENT - WHEELHOUSE RH / To: FH525250	-	1	Enquire
<111C32	LR061372	REINFORCEMENT - WHEELHOUSE	LR061372 REINFORCEMENT - WHEELHOUSE LH / To: FH525250	-	1	Enquire
<111C32	LR077423	REINFORCEMENT - WHEELHOUSE	LR077423 REINFORCEMENT - WHEELHOUSE LH / From: FH525251 / To: HH719839	-	1	Enquire
<111C32	LR077421	REINFORCEMENT - WHEELHOUSE	LR077421 REINFORCEMENT - WHEELHOUSE RH / From: FH525251 / To: HH719839	-	1	Enquire
<111C32	LR105926	REINFORCEMENT - WHEELHOUSE	LR105926 REINFORCEMENT - WHEELHOUSE RH / From: HH719840 / To: KH999999	-	1	Enquire
<111C32	LR105927	REINFORCEMENT - WHEELHOUSE	LR105927 REINFORCEMENT - WHEELHOUSE LH / From: HH719840 / To: KH999999	-	1	Enquire
<111C32	LR128481	REINFORCEMENT - WHEELHOUSE	LR128481 REINFORCEMENT - WHEELHOUSE RH / From: LH000001 / To: LH850358	-	1	Enquire
<111C32	LR128482	REINFORCEMENT - WHEELHOUSE	LR128482 REINFORCEMENT - WHEELHOUSE LH / From: LH000001 / To: LH850358	-	1	Enquire
<111C32	LR138090	REINFORCEMENT - WHEELHOUSE	LR138090 REINFORCEMENT - WHEELHOUSE RH / From: LH850359	-	1	Enquire
<111C32	LR138091	REINFORCEMENT - WHEELHOUSE	LR138091 REINFORCEMENT - WHEELHOUSE LH / From: LH850359	-	1	Enquire
<279A70	LR061717	PANEL - REAR QUARTER	LR061717 PANEL - REAR QUARTER RH / To: GH999999	-	1	Enquire
<279A70	LR061718	PANEL - REAR QUARTER	LR061718 PANEL - REAR QUARTER LH / To: GH999999	-	1	Enquire
<279A70	LR084654	PANEL - REAR QUARTER	LR084654 PANEL - REAR QUARTER RH / From: HH000001 / To: KH999999	-	1	Enquire
<279A70	LR084655	PANEL - REAR QUARTER	LR084655 PANEL - REAR QUARTER LH / From: HH000001 / To: KH999999	-	1	Enquire
<279A70	LR128443	WHEELHOUSE	LR128443 WHEELHOUSE RH / From: LH000001	-	1	Enquire
<279A70	LR128444	WHEELHOUSE	LR128444 WHEELHOUSE LH / From: LH000001	-	1	Enquire
<412A38	LR061108	PANEL - "D" PILLAR WATER DRAIN	LR061108 PANEL - "D" PILLAR WATER DRAIN RH	-	1	Enquire
<412A38	LR061109	PANEL - "D" PILLAR WATER DRAIN	LR061109 PANEL - "D" PILLAR WATER DRAIN LH	-	1	Enquire
<02704	LR061727	PANEL - REAR LAMP CLOSING	LR061727 PANEL - REAR LAMP CLOSING LH	-	1	Enquire
<02704	LR061726	PANEL - REAR LAMP CLOSING	LR061726 PANEL - REAR LAMP CLOSING RH	-	1	Enquire
<27770	LR061720	REINFORCEMENT - "C" PILLAR	LR061720 REINFORCEMENT - "C" PILLAR LH / To: KH999999	-	1	Enquire
<27770	LR061719	REINFORCEMENT - "C" PILLAR	LR061719 REINFORCEMENT - "C" PILLAR RH / To: KH999999	-	1	Enquire
<27770	LR128455	REINFORCEMENT - "C" PILLAR	LR128455 REINFORCEMENT - "C" PILLAR LH / From: LH000001	-	1	Enquire
<27770	LR128454	REINFORCEMENT - "C" PILLAR	LR128454 REINFORCEMENT - "C" PILLAR RH / From: LH000001	-	1	Enquire
<27894	LR061728	PANEL - WHEELHOUSE - OUTER	LR061728 PANEL - WHEELHOUSE - OUTER RH / To: KH999999	-	1	Enquire
<27894	LR061729	PANEL - WHEELHOUSE - OUTER	LR061729 PANEL - WHEELHOUSE - OUTER LH / To: KH999999	-	1	Enquire
<27894	LR128457	PANEL - WHEELHOUSE - OUTER	LR128457 PANEL - WHEELHOUSE - OUTER RH / From: LH000001	-	1	Enquire
<27894	LR128458	PANEL - WHEELHOUSE - OUTER	LR128458 PANEL - WHEELHOUSE - OUTER LH / From: LH000001	-	1	Enquire
<28486	LR061088	REINFORCEMENT - OUTER PANEL	LR061088 REINFORCEMENT - OUTER PANEL RH / To: KH999999	-	1	Enquire
<28486	LR061089	REINFORCEMENT - OUTER PANEL	LR061089 REINFORCEMENT - OUTER PANEL LH	-	1	Enquire
<45131	LR061106	PANEL - REAR LAMP CLOSING	LR061106 PANEL - REAR LAMP CLOSING RH / To: FH515930	-	1	Enquire
<45131	LR061107	PANEL - REAR LAMP CLOSING	LR061107 PANEL - REAR LAMP CLOSING LH / To: FH515930	-	1	Enquire
<45131	LR072437	PANEL - REAR LAMP CLOSING	LR072437 PANEL - REAR LAMP CLOSING RH / From: FH515931	-	1	Enquire
<45131	LR072438	PANEL - REAR LAMP CLOSING	LR072438 PANEL - REAR LAMP CLOSING LH / From: FH515931	-	1	Enquire
<031500	LR061367	BRACKET - BUMPER MOUNTING	LR061367 BRACKET - BUMPER MOUNTING RH	-	1	Enquire
<031500	LR061368	BRACKET - BUMPER MOUNTING	LR061368 BRACKET - BUMPER MOUNTING LH	-	1	Enquire
HB1	LR037087	BOLT AND WASHER - HEX.HEAD	LR037087 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M8 X 30MM	-	2	Enquire
HB2	RYG500230	BOLT - HEX.HEAD	RYG500230 BOLT - HEX.HEAD Hexagonal Head, M8 X 20MM	-	4	Enquire
HT1	RYR500020	STUD	RYR500020 STUD M6 X 16MM	-	1	Enquire
3E656	LR063773	STRUT - SUSPENSION	LR063773 STRUT - SUSPENSION With 5 Seat Configuration / RH	-	1	Enquire
3E656	LR063774	PLATE - SUPPORT	LR063774 PLATE - SUPPORT With 5 Seat Configuration / LH / To: KH999999	-	1	Enquire
3E656	LR128480	PLATE - SUPPORT	LR128480 PLATE - SUPPORT Less 3rd Row Rear Seat, Tow Hitch Receiver NAS / LH / From: LH000001	-	1	Enquire
19D746	LR063969	COVERING - PROTECTIVE	LR063969 COVERING - PROTECTIVE Less Chiller Unit	-	1	Enquire
278A02	LR128501	GASKET - FILLER PIPE	LR128501 GASKET - FILLER PIPE LH / From: LH000001	-	1	Enquire
