Luggage Compartment Door (Door And Fixings) (Halewood (UK)) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Luggage Compartment Door (Door And Fixings) (Halewood (UK))

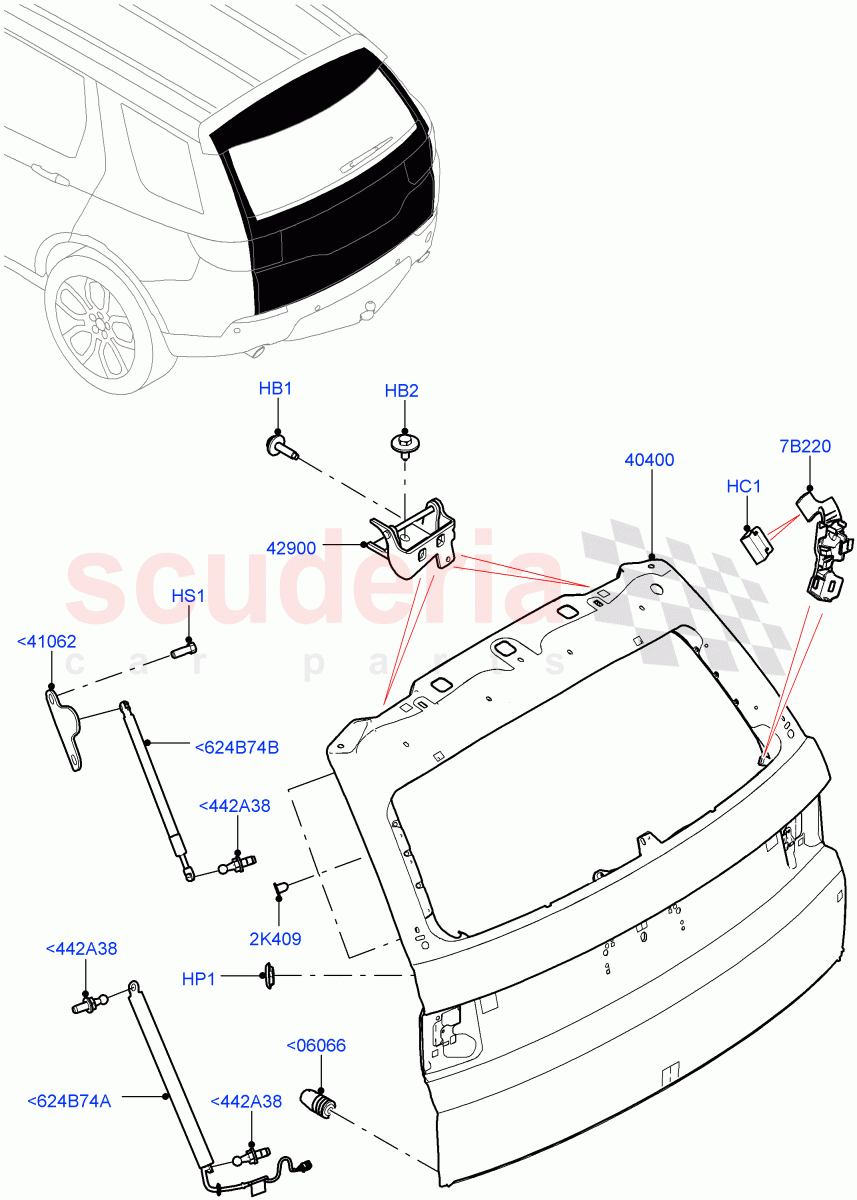

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR037087	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002225	BOLT AND WASHER - HEX.HEAD	Enquire	To Order
	LR077425	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138374	CLIP - TAILGATE BLIND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012710	PLUG - BODY SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108186	SCREW - SOCKET HEAD CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SGG000020	GROMMET - TRIM PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061391	TAILGATE - LESS HINGES	Enquire	To Order
	LR133105	TAILGATE - LESS HINGES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061335	HINGE - TAILGATE	Enquire	To Order
	LR061336	HINGE - TAILGATE	Enquire	To Order
	LR088323	HINGE - TAILGATE	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR128489	BRACKET - KEY MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060855	BUMP STOP - TAILGATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR065838	BRACKET - TAILGATE	Enquire	To Order
	LR065839	BRACKET - TAILGATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068275	STUD - BALL	Enquire	To Order
	LR068275	STUD - BALL	Enquire	To Order
	LR138284	STUD - BALL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR058519	STRUT - TAILGATE	Enquire	To Order
	LR058635	STRUT - TAILGATE	Enquire	To Order
	LR074798	STRUT - TAILGATE	Enquire	To Order

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR058520	STRUT - TAILGATE	Enquire	To Order
	LR137908	STRUT - TAILGATE	Enquire	To Order
	LR139131	STRUT - TAILGATE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<442A38	LR068275	STUD - BALL	LR068275 STUD - BALL Tailgate - Hands Free / M8 x 19MM / To: KH999999	-	2	Enquire
<442A38	LR068275	STUD - BALL	LR068275 STUD - BALL Tailgate-Powered Upper / M8 x 19MM / To: KH999999	-	4	Enquire
<442A38	LR138284	STUD - BALL	LR138284 STUD - BALL With Conventional Tailgate / M8 x 19MM / From: LH000001	-	2	Enquire
<442A38	LR138284	STUD - BALL	LR138284 STUD - BALL Tailgate-Powered Upper / M8 x 19MM / From: LH000001	-	4	Enquire
<624B74A	LR058519	STRUT - TAILGATE	LR058519 STRUT - TAILGATE Tailgate-Powered Upper / RH / To: FH502550	-	1	Enquire
<624B74A	LR058635	STRUT - TAILGATE	LR058635 STRUT - TAILGATE Tailgate-Powered Upper / LH / To: FH502550	-	1	Enquire
<624B74A	LR074798	STRUT - TAILGATE	LR074798 STRUT - TAILGATE Tailgate-Powered Upper / LH / From: FH502551 / To: GH545119	-	1	Enquire
<624B74A	LR074797	STRUT - TAILGATE	LR074797 STRUT - TAILGATE Tailgate-Powered Upper / RH / From: FH502551 / To: GH545119	-	1	Enquire
<624B74A	LR075420	STRUT - TAILGATE	LR075420 STRUT - TAILGATE Tailgate-Powered Upper / LH / From: GH545120 / To: HH694463	-	1	Enquire
<624B74A	LR075420	STRUT - TAILGATE	LR075420 STRUT - TAILGATE Tailgate - Hands Free / LH / From: GH000001 / To: HH694463	-	1	Enquire
<624B74A	LR075419	STRUT - TAILGATE	LR075419 STRUT - TAILGATE Tailgate - Hands Free / RH / From: GH000001 / To: HH694463	-	1	Enquire
<624B74A	LR075419	STRUT - TAILGATE	LR075419 STRUT - TAILGATE Tailgate-Powered Upper / RH / From: GH545120 / To: HH694463	-	1	Enquire
<624B74A	LR104905	STRUT - TAILGATE	LR104905 STRUT - TAILGATE Tailgate-Powered Upper / LH / From: HH694464 / To: JH756835	-	1	Enquire
<624B74A	LR104902	STRUT - TAILGATE	LR104902 STRUT - TAILGATE Tailgate-Powered Upper / RH / From: HH694464 / To: JH756835	-	1	Enquire
<624B74A	LR115494	STRUT - TAILGATE	LR115494 STRUT - TAILGATE Tailgate - Hands Free / LH / From: JH756836 / To: KH828260	-	1	Enquire
<624B74A	LR115493	STRUT - TAILGATE	LR115493 STRUT - TAILGATE Tailgate - Hands Free / RH / From: JH756836 / To: KH828260	-	1	Enquire
<624B74A	LR136576	STRUT - TAILGATE	LR136576 STRUT - TAILGATE Tailgate-Powered Upper / LH / From: KH828261 / To: LH830139	-	1	Enquire
<624B74A	LR138052	STRUT - TAILGATE	LR138052 STRUT - TAILGATE Tailgate - Hands Free / LH / From: LH830140 / To: MH898382	-	1	Enquire
<624B74A	LR136575	STRUT - TAILGATE	LR136575 STRUT - TAILGATE Tailgate - Hands Free / RH / From: KH828261 / To: LH830139	-	1	Enquire
<624B74A	LR137883	STRUT - TAILGATE	LR137883 STRUT - TAILGATE Tailgate-Powered Upper / RH / From: LH830140 / To: MH898382	-	1	Enquire
<624B74A	LR160401	STRUT - TAILGATE	LR160401 STRUT - TAILGATE Tailgate-Powered Upper / LH / From: MH898383	-	1	Enquire
<624B74A	LR160400	STRUT - TAILGATE	LR160400 STRUT - TAILGATE Tailgate-Powered Upper / RH / From: MH898383	-	1	Enquire
<624B74B	LR058520	STRUT - TAILGATE	LR058520 STRUT - TAILGATE With Conventional Tailgate / RH/LH	-	2	Enquire
<624B74B	LR137908	STRUT - TAILGATE	LR137908 STRUT - TAILGATE With Conventional Tailgate / RH/LH / From: LH000001 / To: LH839045	-	2	Enquire
<624B74B	LR139131	STRUT - TAILGATE	LR139131 STRUT - TAILGATE With Conventional Tailgate / RH/LH / From: LH839046	-	2	Enquire
<06066	LR060855	BUMP STOP - TAILGATE	LR060855 BUMP STOP - TAILGATE RH/LH	-	2	Enquire
<41062	LR065838	BRACKET - TAILGATE	LR065838 BRACKET - TAILGATE With Conventional Tailgate / RH	-	1	Enquire
<41062	LR065839	BRACKET - TAILGATE	LR065839 BRACKET - TAILGATE With Conventional Tailgate / LH	-	1	Enquire
HB1	LR037087	BOLT AND WASHER - HEX.HEAD	LR037087 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M8 X 30MM	-	4	Enquire
HB2	LR002225	BOLT AND WASHER - HEX.HEAD	LR002225 BOLT AND WASHER - HEX.HEAD M8 X 21MM / To: FH999999	-	2	Enquire
HB2	LR077425	BOLT AND WASHER - HEX.HEAD	LR077425 BOLT AND WASHER - HEX.HEAD M8 X 21MM / From: GH000001	-	2	Enquire
HC1	LR138374	CLIP - TAILGATE BLIND	LR138374 CLIP - TAILGATE BLIND From: LH000001	-	1	Enquire
HP1	LR012710	PLUG - BODY SEALING	LR012710 PLUG - BODY SEALING	-	2	Enquire
HS1	FS108186	SCREW - SOCKET HEAD CAP	FS108186 SCREW - SOCKET HEAD CAP With Conventional Tailgate / M8 x 18MM	-	4	Enquire
2K409	SGG000020	GROMMET - TRIM PANEL	SGG000020 GROMMET - TRIM PANEL With Conventional Tailgate	-	10	Enquire
7B220	LR128489	BRACKET - KEY MOUNTING	LR128489 BRACKET - KEY MOUNTING Vehicle Access-Leisure Activity Key / From: LH000001	-	1	Enquire
40400	LR061391	TAILGATE - LESS HINGES	LR061391 TAILGATE - LESS HINGES To: KH999999	-	1	Enquire
40400	LR133105	TAILGATE - LESS HINGES	LR133105 TAILGATE - LESS HINGES From: LH000001	-	1	Enquire
42900	LR061335	HINGE - TAILGATE	LR061335 HINGE - TAILGATE RH / To: FH502099	-	1	Enquire
42900	LR061336	HINGE - TAILGATE	LR061336 HINGE - TAILGATE LH / To: FH502099	-	1	Enquire
42900	LR088323	HINGE - TAILGATE	LR088323 HINGE - TAILGATE LH / From: FH502100 / To: GH583503	-	1	Enquire
42900	LR088322	HINGE - TAILGATE	LR088322 HINGE - TAILGATE RH / From: FH502100 / To: GH583503	-	1	Enquire
42900	LR088322	HINGE - TAILGATE	LR088322 HINGE - TAILGATE RH / From: GH617716	-	1	Enquire
42900	LR084531	HINGE - TAILGATE	LR084531 HINGE - TAILGATE LH / From: GH583504 / To: GH617715	-	1	Enquire
42900	LR088323	HINGE - TAILGATE	LR088323 HINGE - TAILGATE LH / From: GH617716	-	1	Enquire
42900	LR084530	HINGE - TAILGATE	LR084530 HINGE - TAILGATE RH / From: GH583504 / To: GH617715	-	1	Enquire
