Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Fuses, Holders And Circuit Breakers (Halewood (UK)) ((V) TOKH999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106042 NUT Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR000048 NUT - HEX. - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
LR003744 CIRCUIT BREAKER Enquire To Order
LR003745 CIRCUIT BREAKER Enquire To Order
LR003746 CIRCUIT BREAKER Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR079312 BRACKET - MODULE Enquire To Order
LR079313 BRACKET - MODULE Enquire To Order
Photo Part No Description Price (each) Stock
LR003737 FUSE Enquire To Order
LR003739 FUSE Enquire To Order
LR003740 FUSE Enquire To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR042645 FUSE Enquire To Order
LR030045 FUSE Enquire To Order
LR030046 FUSE Enquire To Order
Photo Part No Description Price (each) Stock
LR003729 FUSE Enquire To Order
LR003730 FUSE Enquire To Order
LR003731 FUSE Enquire To Order
...and 14 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR095454 FUSE Enquire To Order
LR095453 FUSE Enquire To Order
Photo Part No Description Price (each) Stock
LR063177 BOX - FUSE Enquire To Order
LR078822 BOX - FUSE Enquire To Order
Photo Part No Description Price (each) Stock
LR138624 PANEL - FUSE JUNCTION Enquire To Order
View All

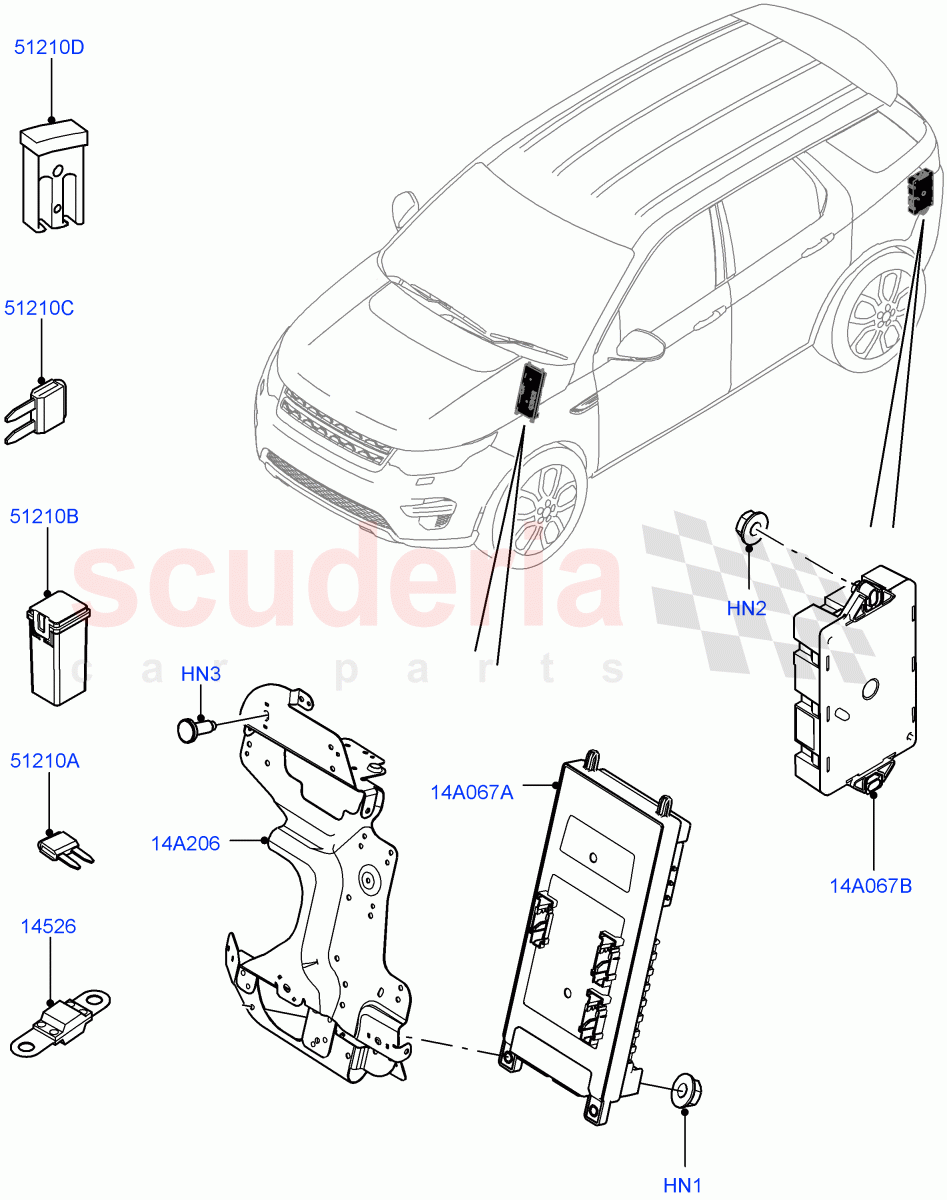

Fuses, Holders And Circuit Breakers (Halewood (UK)) ((V) TOKH999999) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN106042
NUT
Hexagonal Head, M6 		- 2 Enquire
HN2 FN106046
NUT - HEX.
Hexagonal Head, M6 		- 2 Enquire
HN3 LR000048
NUT - HEX. - FLANGED
M8 / From: GH000001 		- 3 Enquire
14A067A LR063177
BOX - FUSE
To: FH999999 		- 1 Enquire
14A067A LR078822
BOX - FUSE
From: GH000001 		- 1 Enquire
14A067B LR138624
PANEL - FUSE JUNCTION
Luggage Compartment Mounted 		- 1 Enquire
14A206 LR079312
BRACKET - MODULE
LHD / From: GH000001 		- 1 Enquire
14A206 LR079313
BRACKET - MODULE
RHD / From: GH000001 		- 1 Enquire
14526 LR003744
CIRCUIT BREAKER
60 AMP, Midi Fuse, Yellow 		- 1 Enquire
14526 LR003745
CIRCUIT BREAKER
80 AMP, Midi Fuse, White 		- 1 Enquire
14526 LR003746
CIRCUIT BREAKER
100 AMP, Blue, Midi Fuse 		- 1 Enquire
14526 LR080537
FUSE
400 AMP, Mega Fuse, Violet 		- 1 Enquire
14526 LR080533
FUSE
350 AMP, Dark Green, Mega Fuse 		- 1 Enquire
14526 LR080531
FUSE
300 AMP, Grey, Mega Fuse 		- 1 Enquire
51210A LR003737
FUSE
5 AMP, Tan Minifuse 		- 20 Enquire
51210A LR003739
FUSE
10 AMP, Red Minifuse 		- 6 Enquire
51210A LR003740
FUSE
15 AMP, Blue Minifuse 		- 5 Enquire
51210A LR003741
FUSE
20 AMP, Yellow Minifuse 		- 8 Enquire
51210A YQF100490
FUSE
Mini 5 Amp, Tan Minifuse 		- 20 Enquire
51210A LR078014
FUSE
30 AMP, Green, Micro Fuse 		- 1 Enquire
51210A LR078013
FUSE
25 AMP, Clear, Micro Fuse 		- 1 Enquire
51210A LR078012
FUSE
20 AMP, Micro Fuse, Yellow 		- 1 Enquire
51210A LR078011
FUSE
15 AMP, Blue, Micro Fuse 		- 1 Enquire
51210A LR078010
FUSE
10 AMP, Micro Fuse, Red 		- 1 Enquire
51210A LR078009
FUSE
7.5 AMP, Brown, Micro Fuse 		- 1 Enquire
51210A LR077806
CIRCUIT BREAKER
5 AMP, Micro Fuse, Tan 		- 1 Enquire
51210B LR042645
FUSE
20 AMP, Blue J-Case Fuse 		- 1 Enquire
51210B LR030045
FUSE
30 AMP, Pink J-Case Fuse 		- 1 Enquire
51210B LR030046
FUSE
40 AMP, Green J-Case Fuse 		- 1 Enquire
51210C LR003729
FUSE
5 AMP, Blade Type, Tan / To: FH517808 		- 1 Enquire
51210C LR003730
FUSE
10 AMP, Blade Type, Red / To: FH517808 		- 4 Enquire
51210C LR003731
FUSE
15 AMP, Blade Type, Light Blue / To: FH517808 		- 1 Enquire
51210C LR003732
FUSE
20 AMP, Blade Type, Yellow / To: FH517808 		- 4 Enquire
51210C LR003733
FUSE
25 AMP, Blade Type, Plain / To: FH517808 		- 1 Enquire
51210C LR003734
FUSE
30 AMP, Blade Type, Light Green / To: FH517808 		- 2 Enquire
51210C LR003742
FUSE
25 AMP, Natural Minifuse 		- 4 Enquire
51210C LR003743
FUSE
30 AMP, Green Minifuse 		- 2 Enquire
51210C LR078826
FUSE
5 AMP, Blade Type, Tan / From: FH517809 		- 1 Enquire
51210C LR078827
FUSE
7.5 AMP, Brown / From: FH517809 		- 1 Enquire
51210C LR078828
FUSE
10 AMP, Blade Type, Red / From: FH517809 		- 1 Enquire
51210C LR078829
FUSE
15 AMP, Blade Type, Light Blue / From: FH517809 		- 1 Enquire
51210C LR078830
FUSE
20 AMP, Blade Type, Yellow / From: FH517809 		- 4 Enquire
51210C LR078831
FUSE
25 AMP, Blade Type, Plain / From: FH517809 		- 1 Enquire
51210C LR078832
FUSE
30 AMP, Blade Type, Light Green / From: FH517809 		- 1 Enquire
51210C LR078834
FUSE
40 AMP, Orange / From: FH517809 		- 1 Enquire
51210C LR078833
FUSE
35 AMP, Dark Green / From: FH517809 		- 1 Enquire
51210D LR095454
FUSE
40 AMP, Green, M-case Slotted Fuse 		- 1 Enquire
51210D LR095453
FUSE
30 AMP, M-case Slotted Fuse, Pink 		- 1 Enquire
