Electrical Wiring - Engine And Dash (Engine) (2.0L Aj20P4 Petrol Mid Pta, Changsu (China), 2.0L...

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Electrical Wiring - Engine And Dash (Engine) (2.0L AJ20P4 Petrol Mid PTA, Changsu (China), 2.0L...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT $0.63 IN STOCK
Photo Part No Description Price (each) Stock
LR042803 BOLT $1.19 IN STOCK
Photo Part No Description Price (each) Stock
LR087242 NUT - HEX. $1.40 To Order
Photo Part No Description Price (each) Stock
RYH500300 NUT - HEX. $0.58 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.54 IN STOCK
Photo Part No Description Price (each) Stock
LR115641 LINK - CAN $131.62 To Order
LR115200 LINK LEAD $64.31 To Order
LR143879 LINK - CAN $138.12 To Order
Photo Part No Description Price (each) Stock
LR116490 WIRING - FUEL INJECTORS $128.54 To Order
Photo Part No Description Price (each) Stock
LR126520 WIRING - ENGINE $955.52 To Order
LR161777 WIRING - ENGINE $520.21 To Order
Photo Part No Description Price (each) Stock
LR123052 CLIP - WIRING $87.44 To Order
Photo Part No Description Price (each) Stock
LR117591 BRACKET - WIRING $20.69 To Order
View All

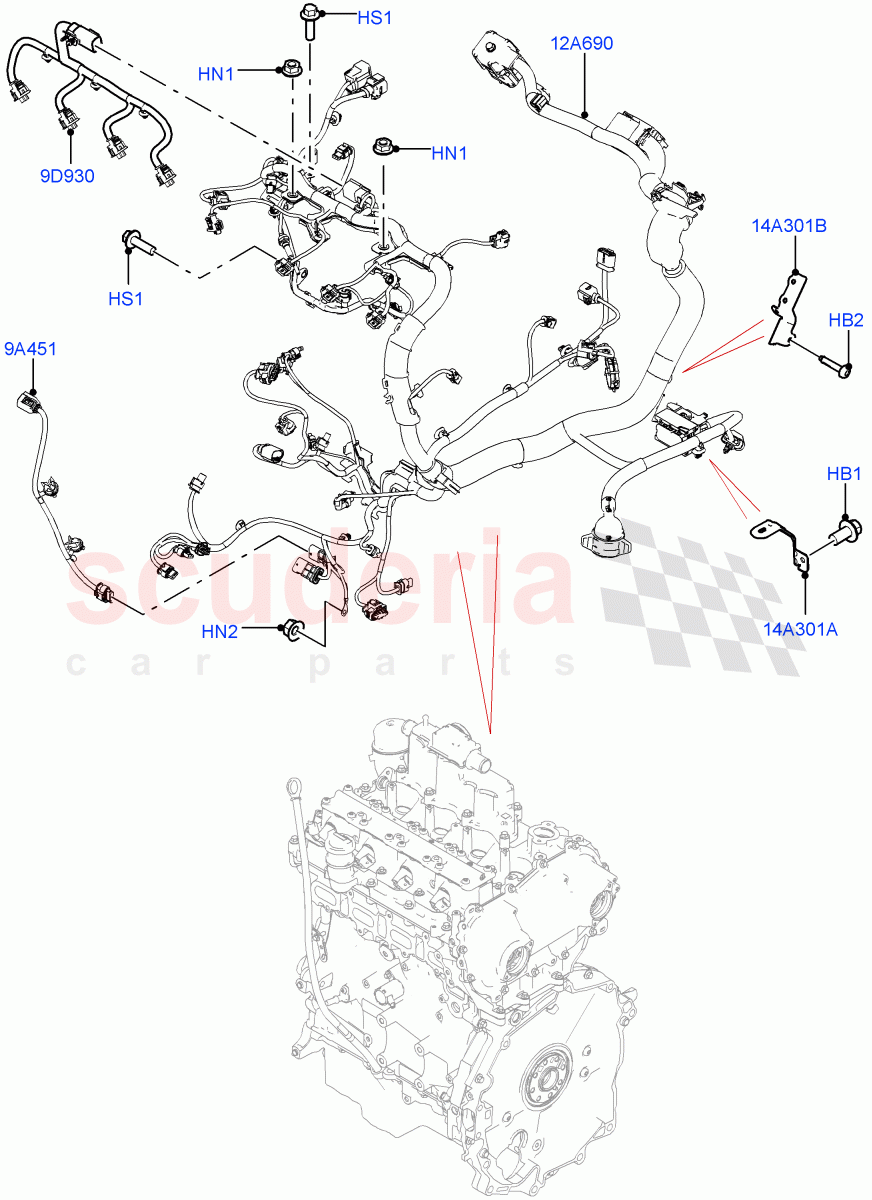

Electrical Wiring - Engine And Dash (Engine) (2.0L AJ20P4 Petrol Mid PTA, Changsu (China), 2.0L AJ20P4 Petrol E100 PTA, 2.0L AJ20P4 Petrol High PTA) ((V) FROMKG446857) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM / From: KG446857
IN STOCK 		$0.63 1
HB2 LR042803
BOLT
M6 x 28MM, Torx / From: KG446857
IN STOCK 		$1.19 1
HN1 LR087242
NUT - HEX.
M6 / From: KG446857 		$1.40 2
HN2 RYH500300
NUT - HEX.
Hexagonal Head, M6 / From: KG446857 		$0.58 1
HS1 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: KG446857
IN STOCK 		$1.54 3
9A451 LR115641
LINK - CAN
Electric Engine Battery-MHEV / Belt Integrated Starter Generator, Link / From: KG446857 / To: MG140568 		$131.62 1
9A451 LR115200
LINK LEAD
Less Electric Engine Battery / Alternator, Link / From: KG446857 		$64.31 1
9A451 LR143879
LINK - CAN
Electric Engine Battery-MHEV / Belt Integrated Starter Generator, Link / From: MG140569 		$138.12 1
9D930 LR116490
WIRING - FUEL INJECTORS
Injector Harness / From: KG446857 		$128.54 1
12A690 LR126520
WIRING - ENGINE
Engine Harness / From: KG446857 / To: MG140568 		$955.52 1
12A690 LR161777
WIRING - ENGINE
Engine Harness / From: MG140569 		$520.21 1
14A301A LR123052
CLIP - WIRING
From: KG446857 		$87.44 1
14A301B LR117591
BRACKET - WIRING
From: KG446857 		$20.69 1
