Rear Lamps (Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Rear Lamps (Itatiaia (Brazil)) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR060912 SCREW - SPECIAL $15.98 To Order
Photo Part No Description Price (each) Stock
LR079579 LAMP - REAR- STOP AND FLASHER $343.98 To Order
LR079575 LAMP - REAR- STOP AND FLASHER $323.22 To Order
LR079577 LAMP - REAR- STOP AND FLASHER $200.52 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR087728 LAMP - LICENCE PLATE $15.21 To Order
Photo Part No Description Price (each) Stock
LR079565 LAMP - REAR- STOP AND FLASHER $225.79 To Order
LR079566 LAMP - REAR- STOP AND FLASHER $292.42 To Order
LR079569 LAMP - REAR- STOP AND FLASHER $238.23 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR000702 BULB $2.84 To Order
Photo Part No Description Price (each) Stock
LR000699 BULB - WARNING LAMP $6.17 To Order
Photo Part No Description Price (each) Stock
LR068289 LAMP - REAR - HIGH MOUNTED $127.96 To Order
Photo Part No Description Price (each) Stock
LR060910 LAMP - FOG - REAR $152.37 To Order
LR060911 LAMP - FOG - REAR $152.37 To Order
Photo Part No Description Price (each) Stock
LR066963 SEAL - REAR LAMP $15.36 To Order
Photo Part No Description Price (each) Stock
LR077923 SEAL - REAR LAMP $14.14 To Order
View All

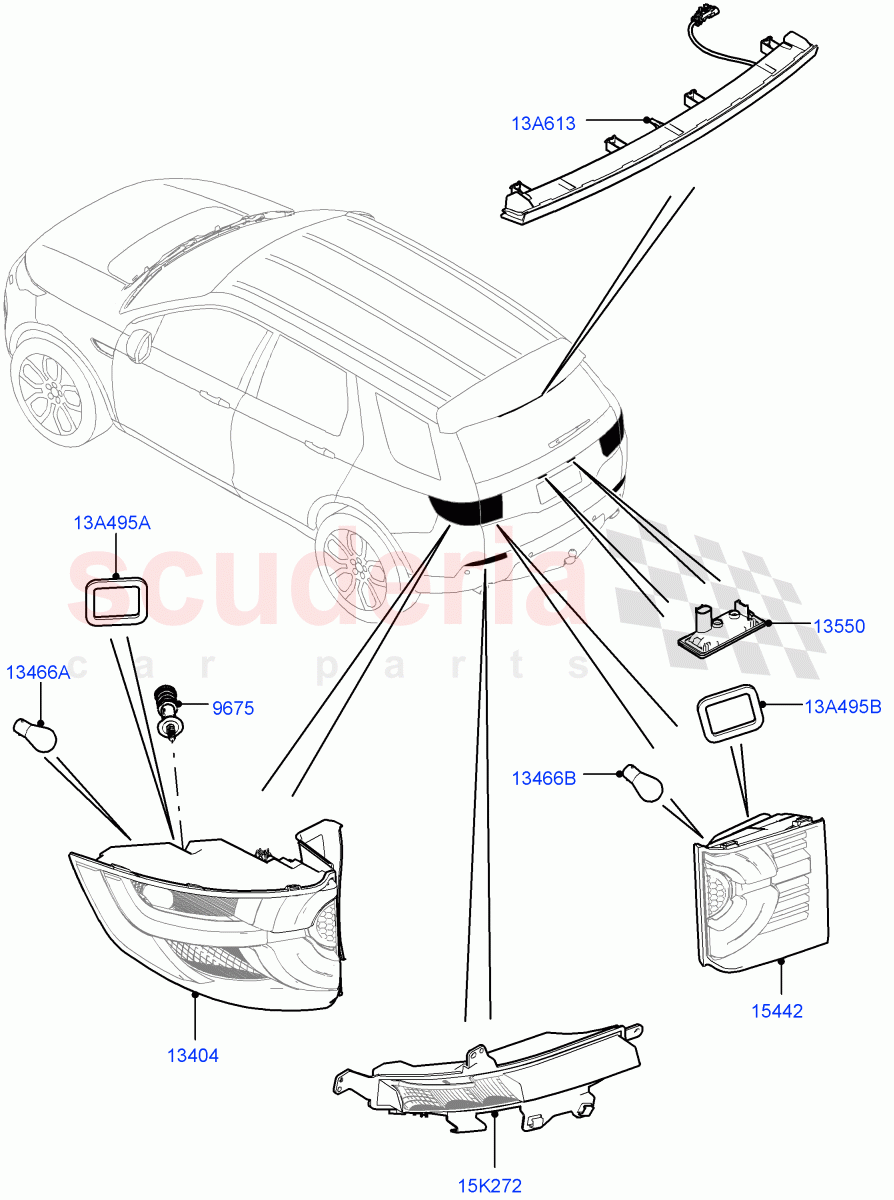

Rear Lamps (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
13A495A LR066963
SEAL - REAR LAMP
Rear Lamp / From: GT000001 		$15.36 1
13A495B LR077923
SEAL - REAR LAMP
Rear tail lamp / From: GT000001 		$14.14 1
13A613 LR068289
LAMP - REAR - HIGH MOUNTED
From: GT000001 		$127.96 1
15K272 LR060910
LAMP - FOG - REAR
RH / From: GT000001 		$152.37 1
15K272 LR060911
LAMP - FOG - REAR
LH / From: GT000001 		$152.37 1
9675 LR060912
SCREW - SPECIAL
From: GT000001 		$15.98 2
13404 LR079579
LAMP - REAR- STOP AND FLASHER
With BI - Xenon Headlamps / LH / From: GT000001 / To: KT999999 		$343.98 1
13404 LR079575
LAMP - REAR- STOP AND FLASHER
With BI - Xenon Headlamps / RH / From: GT000001 / To: KT999999 		$323.22 1
13404 LR079577
LAMP - REAR- STOP AND FLASHER
With Halogen Headlamp / LH / From: GT000001 / To: KT999999 		$200.52 1
13404 LR079573
LAMP - REAR- STOP AND FLASHER
With Halogen Headlamp / RH / From: GT000001 / To: KT999999 		$200.52 1
13404 LR128026
LAMP - REAR- STOP AND FLASHER
H/Lamp Operation LHD-Right Justify / RH / From: LT000001 		$410.00 1
13404 LR128028
LAMP - REAR- STOP AND FLASHER
H/Lamp Operation LHD-Right Justify / LH / From: LT000001 		$400.49 1
13466A LR000702
BULB
12 Volt 21 WATT, Amber, Indicator Bulb, PY21W Silver Vision / From: GT000001 		$2.84 1
13466B LR000699
BULB - WARNING LAMP
With Halogen Headlamp / 12V 16W, Clear / From: GT000001 		$6.17 1
13550 LR087728
LAMP - LICENCE PLATE
From: GT000001 		$15.21 2
15442 LR079565
LAMP - REAR- STOP AND FLASHER
With Halogen Headlamp / RH / From: GT000001 / To: GT999999 		$225.79 1
15442 LR079566
LAMP - REAR- STOP AND FLASHER
With BI - Xenon Headlamps / RH / From: GT000001 / To: GT999999 		$292.42 1
15442 LR079569
LAMP - REAR- STOP AND FLASHER
With Halogen Headlamp / LH / From: GT000001 / To: GT999999 		$238.23 1
15442 LR079570
LAMP - REAR- STOP AND FLASHER
With BI - Xenon Headlamps / LH / From: GT000001 / To: GT999999 		$301.00 1
15442 LR087263
LAMP - REAR- STOP AND FLASHER
With Halogen Headlamp / LH / From: HT000001 		$210.85 1
15442 LR087269
LAMP - REAR- STOP AND FLASHER
With BI - Xenon Headlamps / LH / From: HT000001 		$282.43 1
15442 LR087270
LAMP - REAR- STOP AND FLASHER
With Halogen Headlamp / RH / From: HT000001 		$233.57 1
15442 LR087274
LAMP - REAR- STOP AND FLASHER
With BI - Xenon Headlamps / RH / From: HT000001 		$277.08 1
