Battery Cables And Horn (Changsu (China)) ((V) Fromfg000001, (V) Tokg446856)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Battery Cables And Horn (Changsu (China)) ((V) FROMFG000001, (V) TOKG446856)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR006001 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
RYH500340 NUT AND WASHER - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR027177 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR003808 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR048784 BRACKET - HORN Enquire To Order
Photo Part No Description Price (each) Stock
LR061699 HORN Enquire To Order
LR108388 HORN Enquire To Order
Photo Part No Description Price (each) Stock
LR026094 TERMINAL - BATTERY MANAGEMENT SYSTEM Enquire To Order
LR083716 TERMINAL - BATTERY MANAGEMENT SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR076232 CABLE - BATTERY POSITIVE Enquire To Order
LR097652 CABLE - BATTERY TO STARTER MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR059812 CABLE - BATTERY NEGATIVE Enquire To Order
Photo Part No Description Price (each) Stock
LR073053 BATTERY MANAGEMENT SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR038721 BATTERY MANAGEMENT SYSTEM Enquire To Order
LR081460 BATTERY MANAGEMENT SYSTEM Enquire To Order
LR113219 BATTERY MANAGEMENT SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR096614 BRACKET - WIRING Enquire To Order
View All

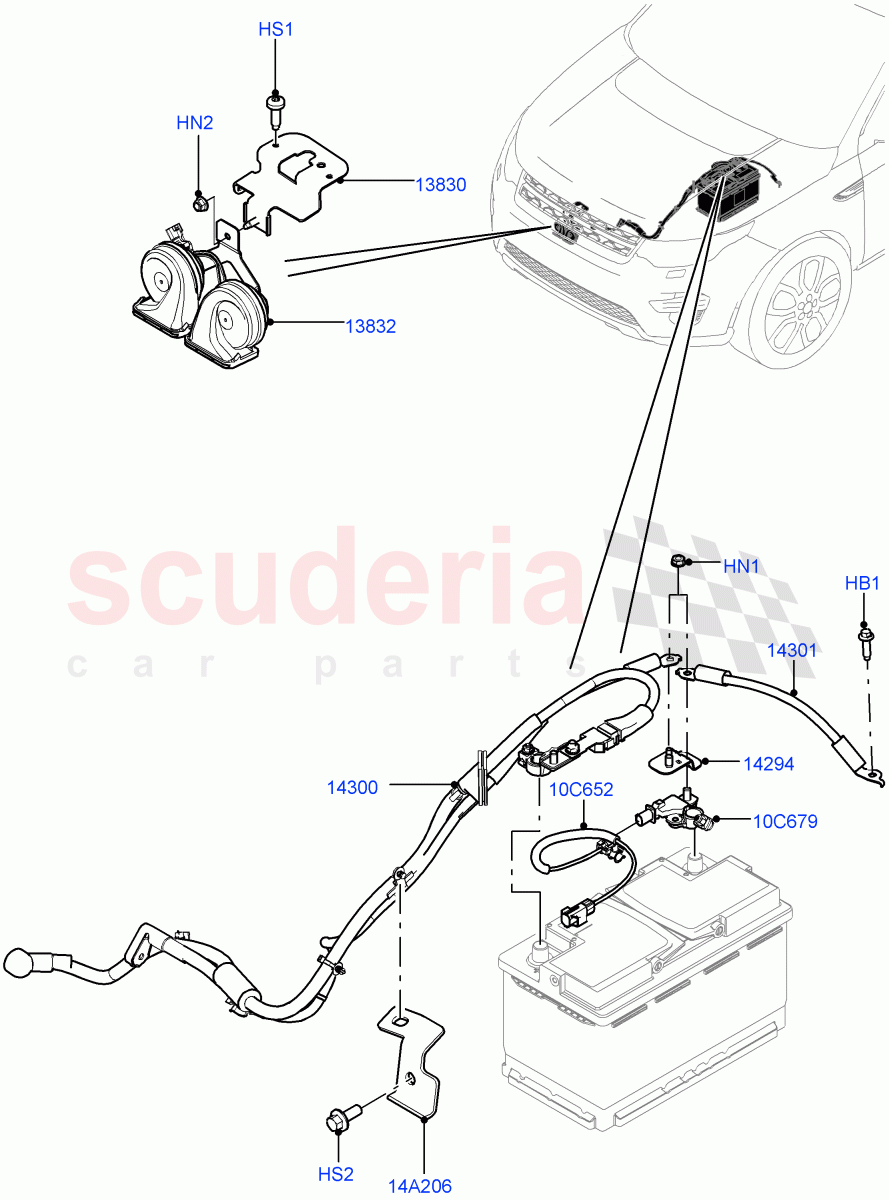

Battery Cables And Horn (Changsu (China)) ((V) FROMFG000001, (V) TOKG446856) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR006001
BOLT
M8 X 30 / From: FG000001 		- 1 Enquire
HN1 RYH500340
NUT AND WASHER - HEX.
M8, Nut And Washer / From: FG000001 		- 1 Enquire
HN2 LR027177
NUT
M8 / From: FG000001 		- 1 Enquire
HS1 LR003808
BOLT - HEX.HEAD
M6 X 16MM, Torx / From: FG000001 		- 2 Enquire
HS2 FS106166
SCREW
Hexagonal Head, M6 X 16MM / From: HG379387 		- 1 Enquire
10C652 LR073053
BATTERY MANAGEMENT SYSTEM
From: FG000001 		- 1 Enquire
10C679 LR038721
BATTERY MANAGEMENT SYSTEM
From: FG000001 / To: GG347883 		- 1 Enquire
10C679 LR081460
BATTERY MANAGEMENT SYSTEM
From: HG347884 / To: JG402084 		- 1 Enquire
10C679 LR113219
BATTERY MANAGEMENT SYSTEM
From: JG402085 		- 1 Enquire
14A206 LR096614
BRACKET - WIRING
From: HG379387 		- 1 Enquire
13830 LR048784
BRACKET - HORN
Horn / From: FG000001 		- 1 Enquire
13832 LR061699
HORN
Dual Note Electric Horn - Level 2 / From: FG000001 / To: HG379388 		- 1 Enquire
13832 LR108388
HORN
Dual Note Electric Horn - Level 2 / From: HG379389 		- 1 Enquire
14294 LR026094
TERMINAL - BATTERY MANAGEMENT SYSTEM
From: FG000001 / To: GG347883 		- 1 Enquire
14294 LR083716
TERMINAL - BATTERY MANAGEMENT SYSTEM
From: HG347884 		- 1 Enquire
14300 LR076232
CABLE - BATTERY POSITIVE
From: FG000001 / To: HG379387 		- 1 Enquire
14300 LR097652
CABLE - BATTERY TO STARTER MOTOR
From: HG379388 		- 1 Enquire
14301 LR059812
CABLE - BATTERY NEGATIVE
From: FG000001 		- 1 Enquire
