Name: Rear Flange ((V) FROM7A000001)
Rating: 5.0 (1 reviews)

View All

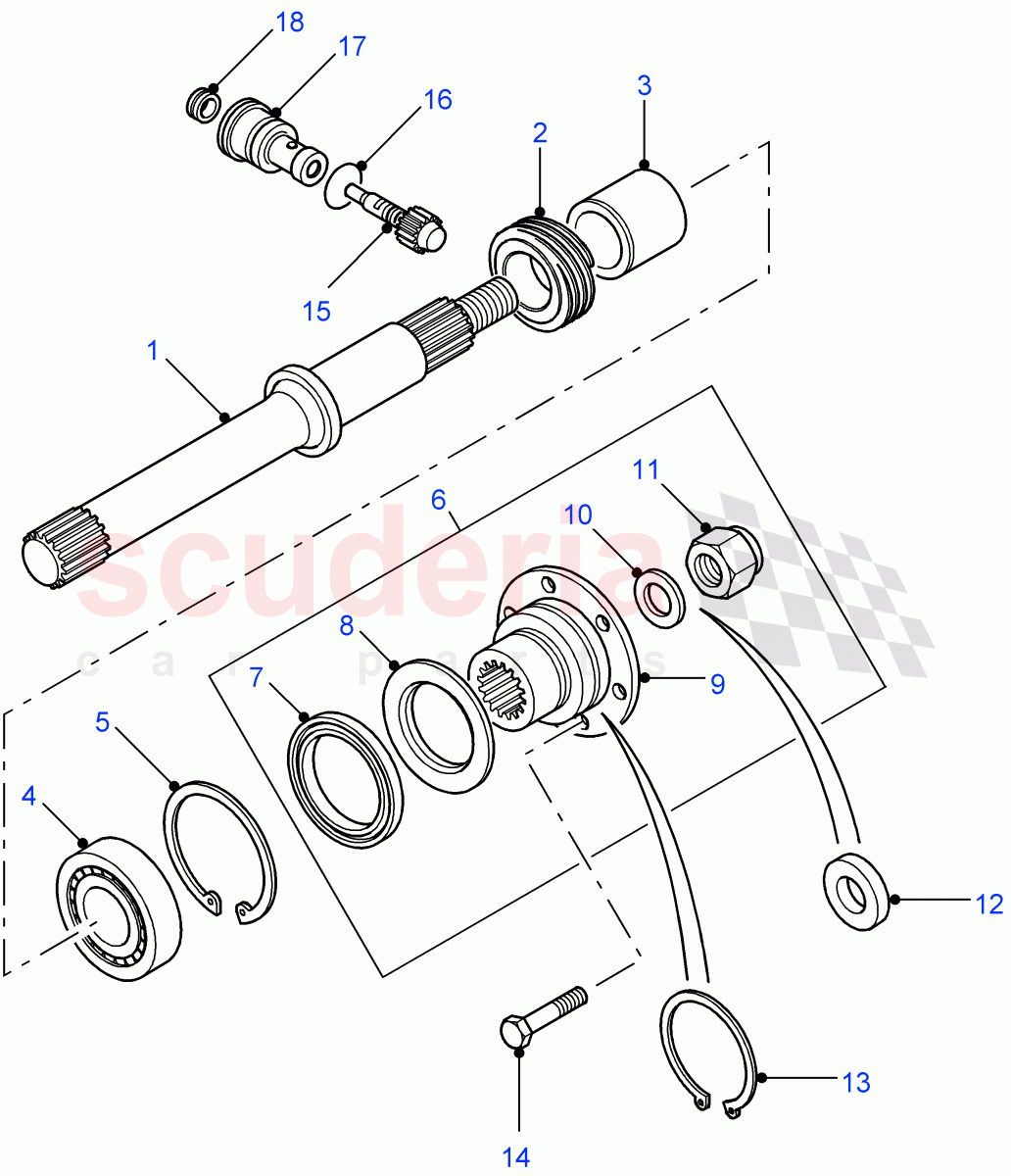

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FRC5450	SHAFT - OUTPUT	$528.00	To Order

Photo	Part No	Description	Price (each)	Stock
	FRC3162	GEAR - SPEEDOMETER DRIVING	$394.29	To Order

Photo	Part No	Description	Price (each)	Stock
	FRC5446	SPACER	$15.83	To Order

Photo	Part No	Description	Price (each)	Stock
	STC1130	BEARING - BALL - DOUBLE GROOVED	$119.12	To Order

Photo	Part No	Description	Price (each)	Stock
	216962	CIRCLIP	$3.34	To Order

Photo	Part No	Description	Price (each)	Stock
	FTC4939	SEAL - OUTPUT SHAFT OIL	$28.65	To Order

Photo	Part No	Description	Price (each)	Stock
	FTC4941	SHIELD	$34.75	To Order

Photo	Part No	Description	Price (each)	Stock
	FTC4942	FLANGE	$149.45	To Order

Photo	Part No	Description	Price (each)	Stock
	FRC2464	WASHER	$3.00	To Order

Photo	Part No	Description	Price (each)	Stock
	NY120046	NUT - HEX.	$6.93	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	PYF500010	WASHER - OUTPUT SHAFT	$4.75	To Order

Photo	Part No	Description	Price (each)	Stock
	571682	CIRCLIP	$6.50	To Order

Photo	Part No	Description	Price (each)	Stock
	FRC3310	GEAR - SPEEDOMETER DRIVING	$33.04	To Order

Photo	Part No	Description	Price (each)	Stock
	571665	O-RING	$5.09	To Order

Photo	Part No	Description	Price (each)	Stock
	FRC3286	HOUSING	$53.73	To Order

Photo	Part No	Description	Price (each)	Stock
	AAU2304	SEAL	$3.59	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	FRC5450	SHAFT - OUTPUT	FRC5450 SHAFT - OUTPUT	$528.00	1
2	FRC3162	GEAR - SPEEDOMETER DRIVING	FRC3162 GEAR - SPEEDOMETER DRIVING	$394.29	1
3	FRC5446	SPACER	FRC5446 SPACER	$15.83	1
4	STC1130	BEARING - BALL - DOUBLE GROOVED	STC1130 BEARING - BALL - DOUBLE GROOVED	$119.12	1
5	216962	CIRCLIP	216962 CIRCLIP Large	$3.34	1
6	STC3433	KIT	STC3433 KIT Rear	$248.27	1
6	LR055719	KIT - FLANGE	LR055719 KIT - FLANGE Rear	$254.21	1
7	FTC4939	SEAL - OUTPUT SHAFT OIL	FTC4939 SEAL - OUTPUT SHAFT OIL	$28.65	1
8	FTC4941	SHIELD	FTC4941 SHIELD	$34.75	1
9	FTC4942	FLANGE	FTC4942 FLANGE	$149.45	1
10	FRC2464	WASHER	FRC2464 WASHER	$3.00	1
11	NY120046	NUT - HEX. IN STOCK	NY120046 NUT - HEX. M20 IN STOCK	$6.93	1
12	PYF500010	WASHER - OUTPUT SHAFT	PYF500010 WASHER - OUTPUT SHAFT	$4.75	1
13	571682	CIRCLIP	571682 CIRCLIP	$6.50	1
14	FRC3602	BOLT	FRC3602 BOLT 3/8UNF x 1 3/4, flange to propshaft / To: CA426424	$2.58	4
14	LR045926	BOLT	LR045926 BOLT 3/8UNF x 1 3/4, flange to propshaft / From: CA426425	$2.55	4
15	FRC3310	GEAR - SPEEDOMETER DRIVING	FRC3310 GEAR - SPEEDOMETER DRIVING 20 Teeth, Blue	$33.04	1
16	571665	O-RING	571665 O-RING	$5.09	1
17	FRC3286	HOUSING	FRC3286 HOUSING	$53.73	1
18	AAU2304	SEAL	AAU2304 SEAL	$3.59	1

Rear Flange ((V) From7A000001)

Land Rover Defender (2007-2016)
