Find Your Part

View All

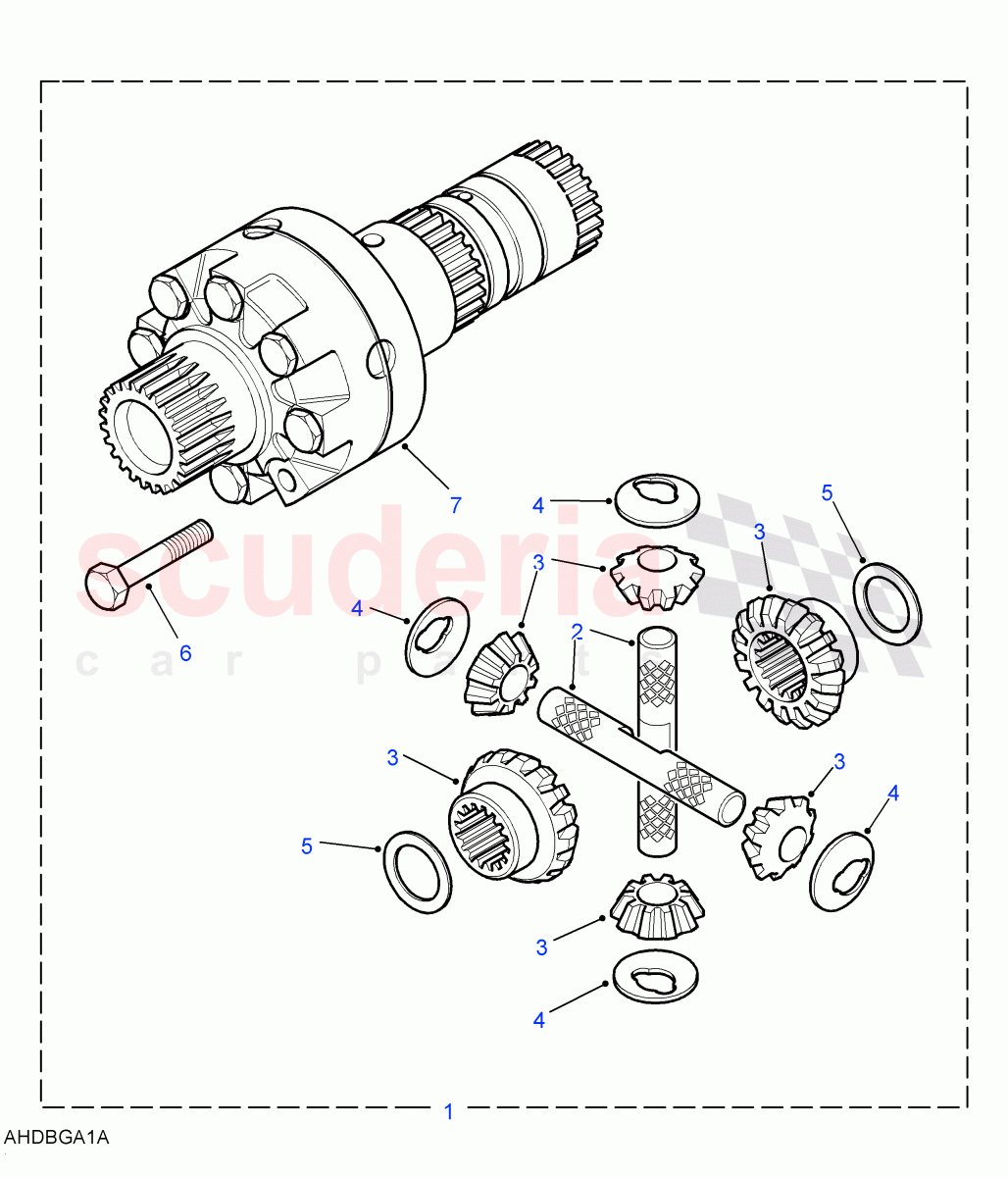

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	TBB500060	DIFFERENTIAL	TBB500060 DIFFERENTIAL 4 Pin Differential / To: DA436773	$3,156.09	1
1	LR055370	DIFFERENTIAL	LR055370 DIFFERENTIAL 4 Pin Differential / From: DA436774 / To: EA447443	$2,242.99	1
1	LR055682	DIFFERENTIAL	LR055682 DIFFERENTIAL 2 Pin Differential / From: EA447444	$1,344.72	1
2	RTC3397	KIT - SHAFT REPAIR	RTC3397 KIT - SHAFT REPAIR	$213.78	1
3	STC2940	KIT - AXLE DIFFERENTIAL GEAR	STC2940 KIT - AXLE DIFFERENTIAL GEAR	$452.34	1
4	FRC6968	WASHER - THRUST	FRC6968 WASHER - THRUST To: EA447443	$3.67	4
4	LR064533	WASHER - THRUST	LR064533 WASHER - THRUST From: EA447444	$129.95	4
5	FRC9851	WASHER - THRUST	FRC9851 WASHER - THRUST 1.35MM / To: EA447443	$15.48	-
5	FRC9853	WASHER - THRUST	FRC9853 WASHER - THRUST 1.45MM / To: EA447443	$7.93	-
5	FRC9845	WASHER - THRUST	FRC9845 WASHER - THRUST 1.05MM / To: EA447443	$3.65	-
5	FRC9847	WASHER - THRUST	FRC9847 WASHER - THRUST 1.15MM / To: EA447443	$5.50	-
5	FRC9849	WASHER - THRUST	FRC9849 WASHER - THRUST 1.25MM / To: EA447443	$4.00	-
5	LR064535	WASHER - THRUST	LR064535 WASHER - THRUST From: EA447444	$129.95	-
6	BH110121L	BOLT	BH110121L BOLT Long, M10 x 60	$2.62	8
7	FRC7499	RING - RETAINING	FRC7499 RING - RETAINING	$13.37	-
