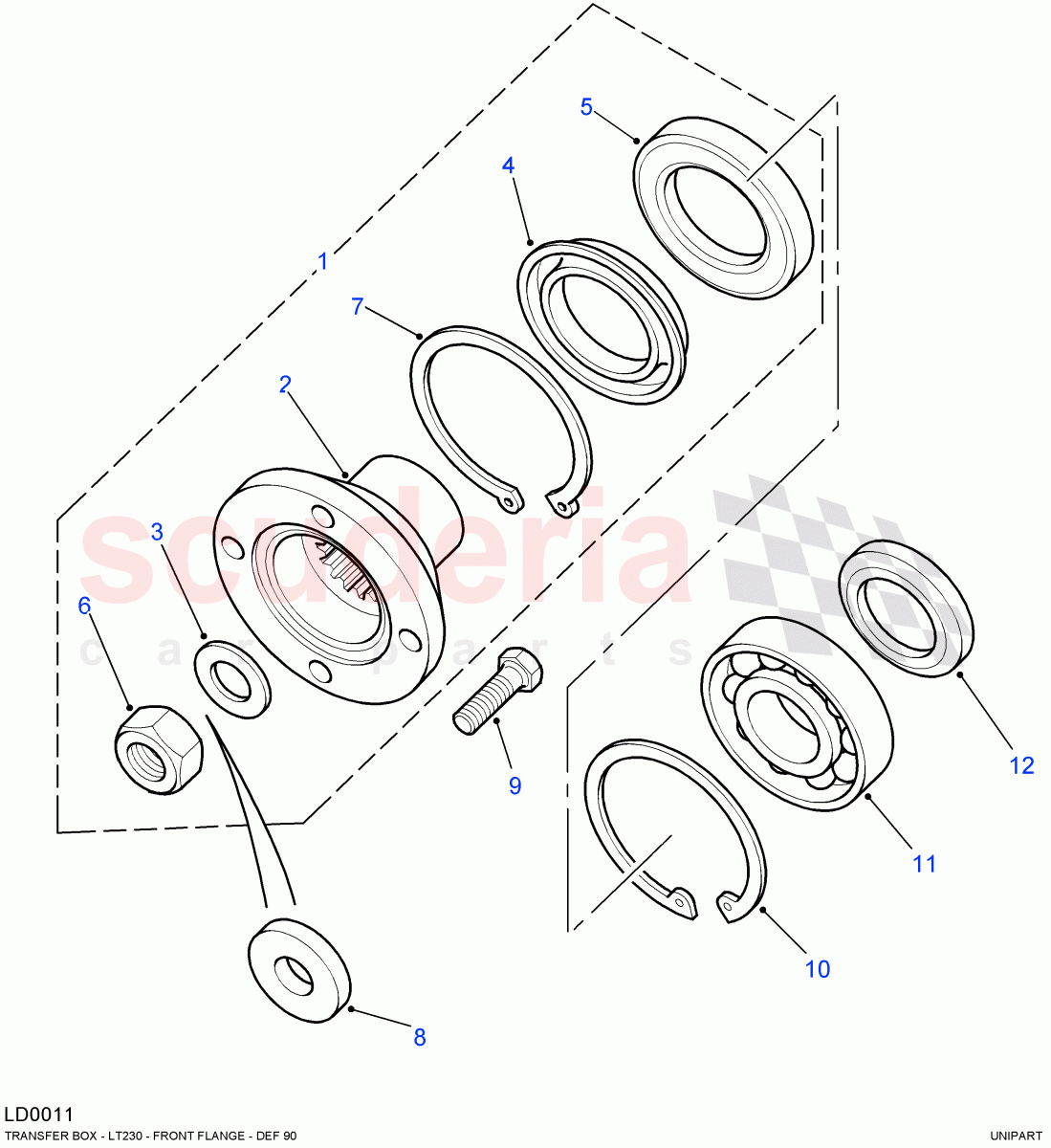

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	STC4370	FLANGE	STC4370 FLANGE To: DA443920	$193.40	1
1	LR055718	KIT - FLANGE	LR055718 KIT - FLANGE From: DA443921	$332.83	1
2	IEC100020	FLANGE	IEC100020 FLANGE	$107.43	1
3	FRC2464	WASHER	FRC2464 WASHER	$3.00	1
4	ICN500010	SHIELD	ICN500010 SHIELD To: 9A777776	$6.23	1
4	LR017522	SHIELD	LR017522 SHIELD From: 9A777777	$5.35	1
5	FTC4939	SEAL - OUTPUT SHAFT OIL	FTC4939 SEAL - OUTPUT SHAFT OIL	$28.65	1
6	NY120046	NUT - HEX. IN STOCK	NY120046 NUT - HEX. M20 IN STOCK	$6.93	1
7	571682	CIRCLIP	571682 CIRCLIP	$6.50	1
8	PYF500010	WASHER - OUTPUT SHAFT	PYF500010 WASHER - OUTPUT SHAFT	$4.75	1
9	BT606106	BOLT	BT606106 BOLT 3/8UNC x 1 1/4	$6.39	4
10	216962	CIRCLIP	216962 CIRCLIP Large	$3.34	1
11	STC1130	BEARING - BALL - DOUBLE GROOVED	STC1130 BEARING - BALL - DOUBLE GROOVED	$119.12	1
12	FRC5439	SPACER	FRC5439 SPACER	$15.83	1
