Name: Main Casing ((V) FROM7A000001)
Rating: 4.4 (1 reviews)

Main Casing ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

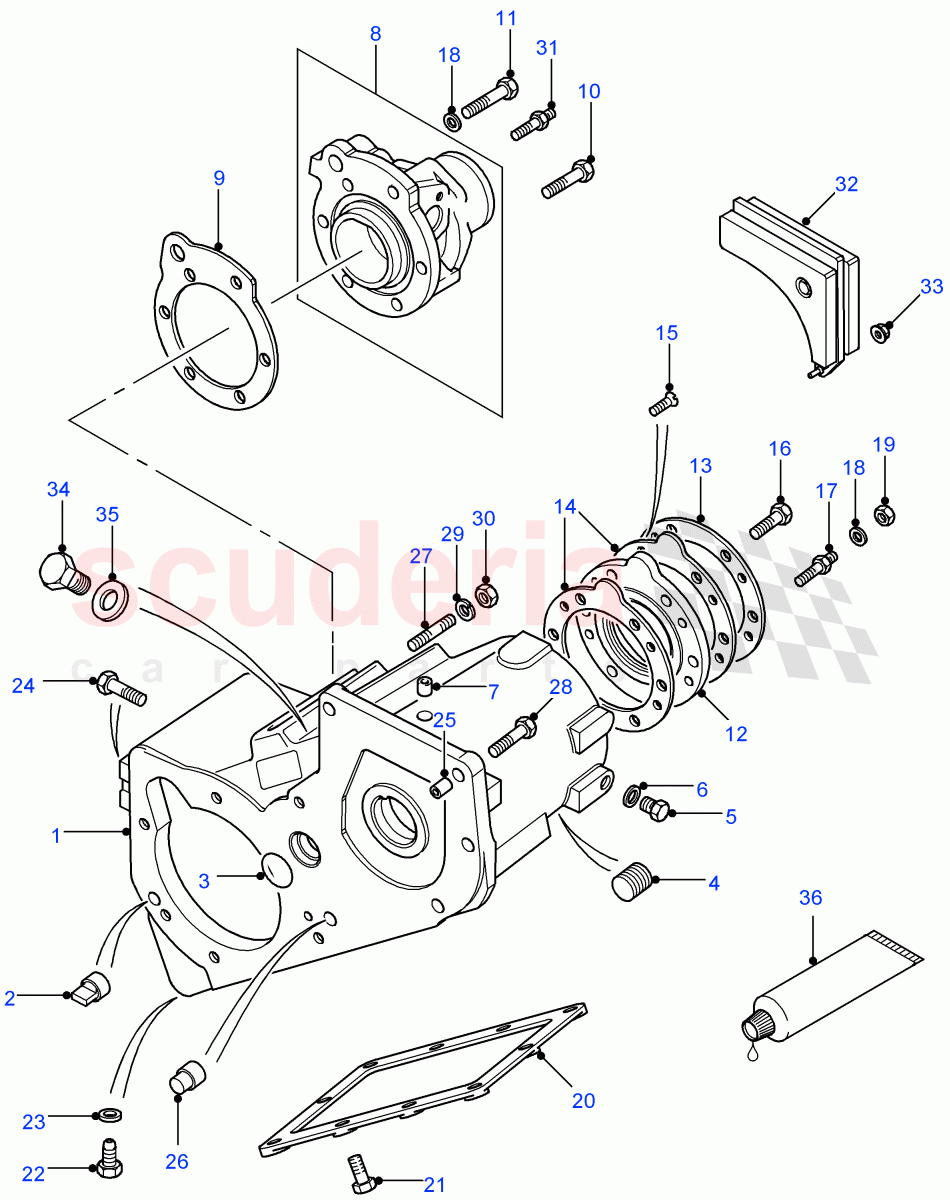

Land Rover Defender (2007-2016) - Main Casing ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	ICG000082	CASE - TRANSFER	$1,187.83	To Order
	LR067392	CASE - TRANSFER	$5,497.44	To Order

Photo	Part No	Description	Price (each)	Stock
	FRC5594	DOWEL	$8.28	To Order

Photo	Part No	Description	Price (each)	Stock
	FRC8292	O-RING	$10.59	To Order

Photo	Part No	Description	Price (each)	Stock
	608246	PLUG - DRAIN	$16.38	To Order

Photo	Part No	Description	Price (each)	Stock
	SH214141	PLUG	$22.69	To Order

Photo	Part No	Description	Price (each)	Stock
	232042	WASHER - SEALING	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	UKC24L	PLUG - ENGINE	$0.82	To Order

Photo	Part No	Description	Price (each)	Stock
	FTC4185	Housing-speedometer driven gear	$242.35	To Order

Photo	Part No	Description	Price (each)	Stock
	STC4404	SEALER	$27.74	To Order

Photo	Part No	Description	Price (each)	Stock
	FS110301ML	SCREW	$1.09	To Order
	FS110306M	STUD	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	FB110096M	BOLT	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	FTC4866	HOUSING	$269.89	To Order

Photo	Part No	Description	Price (each)	Stock
	FTC3178	COVER	$155.25	To Order

Photo	Part No	Description	Price (each)	Stock
	FRC5413	GASKET - POWER TAKE OFF COVER	$4.39	To Order

Photo	Part No	Description	Price (each)	Stock
	SF108251L	SCREW	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	FB110086M	BOLT	$2.98	To Order

Photo	Part No	Description	Price (each)	Stock
	UYR500020	STUD	$5.77	To Order

Photo	Part No	Description	Price (each)	Stock
	WA110001L	WASHER	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	FN110046	NUT - HEX.	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	FRC5415	COVER	$16.78	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108256	BOLT	$3.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	599552	PLUG - DRAIN	$21.71	To Order

Photo	Part No	Description	Price (each)	Stock
	FRC4808	WASHER - SEALING	$3.48	To Order

Photo	Part No	Description	Price (each)	Stock
	FB110091ML	BOLT	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	FRC2482	DOWEL - RING	$16.57	To Order

Photo	Part No	Description	Price (each)	Stock
	571134	DOWEL	$8.73	To Order

Photo	Part No	Description	Price (each)	Stock
	UYR500030	STUD	$4.58	To Order

Photo	Part No	Description	Price (each)	Stock
	FB110091ML	BOLT	$0.63	To Order
	FB110071ML	BOLT	$9.39	To Order

Photo	Part No	Description	Price (each)	Stock
	WL110001L	WASHER	$0.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN110046	NUT - HEX.	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	FS110306M	STUD	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	IAI100031	DAMPER - VIBRATION	$373.35	To Order

Photo	Part No	Description	Price (each)	Stock
	FY110046	NUT - HEX.	$2.82	To Order

Photo	Part No	Description	Price (each)	Stock
	SH214141	PLUG	$22.69	To Order

Photo	Part No	Description	Price (each)	Stock
	232042	WASHER - SEALING	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	STC4404	SEALER	$27.74	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	ICG000082	CASE - TRANSFER	ICG000082 CASE - TRANSFER To: EA999999	$1,187.83	1
1	LR067392	CASE - TRANSFER	LR067392 CASE - TRANSFER From: FA000001	$5,497.44	1
2	FRC5594	DOWEL	FRC5594 DOWEL	$8.28	1
3	FRC8292	O-RING	FRC8292 O-RING	$10.59	1
4	608246	PLUG - DRAIN	608246 PLUG - DRAIN	$16.38	1
5	SH214141	PLUG	SH214141 PLUG	$22.69	1
6	232042	WASHER - SEALING	232042 WASHER - SEALING	$0.55	1
7	UKC24L	PLUG - ENGINE	UKC24L PLUG - ENGINE 6MM	$0.82	1
8	FTC4185	Housing-speedometer driven gear	FTC4185 Housing-speedometer driven gear	$242.35	1
9	STC4404	SEALER	STC4404 SEALER	$27.74	-
10	FS110301ML	SCREW	FS110301ML SCREW Flanged Head, M10 x 30	$1.09	2
10	FS110306M	STUD	FS110306M STUD Stud	$1.96	3
11	FB110096M	BOLT	FB110096M BOLT Flanged, M10 X 45	$0.70	1
12	FTC4866	HOUSING	FTC4866 HOUSING	$269.89	1
13	FTC3178	COVER	FTC3178 COVER	$155.25	1
14	FRC5413	GASKET - POWER TAKE OFF COVER	FRC5413 GASKET - POWER TAKE OFF COVER	$4.39	2
15	SF108251L	SCREW	SF108251L SCREW M8 x 25	$1.63	1
16	FB110086M	BOLT	FB110086M BOLT Flanged Head, M10 x 40	$2.98	5
17	UYR500020	STUD	UYR500020 STUD	$5.77	1
18	WA110001L	WASHER	WA110001L WASHER M10, Plain	$0.61	1
19	FN110046	NUT - HEX.	FN110046 NUT - HEX. flange, M10	$0.70	1
20	FRC5415	COVER	FRC5415 COVER	$16.78	1
21	FS108256	BOLT IN STOCK	FS108256 BOLT Flanged Head, M8 x 25 IN STOCK	$3.62	8
22	599552	PLUG - DRAIN	599552 PLUG - DRAIN	$21.71	1
23	FRC4808	WASHER - SEALING	FRC4808 WASHER - SEALING transfer box drain plug	$3.48	1
24	FB110091ML	BOLT	FB110091ML BOLT M10 X 45	$0.63	1
25	FRC2482	DOWEL - RING	FRC2482 DOWEL - RING 15.0mm	$16.57	1
26	571134	DOWEL	571134 DOWEL	$8.73	1
27	UYR500030	STUD	UYR500030 STUD	$4.58	2
28	FB110091ML	BOLT	FB110091ML BOLT M10 X 45	$0.63	1
28	FB110071ML	BOLT	FB110071ML BOLT M10 x 35	$9.39	3
29	WL110001L	WASHER IN STOCK	WL110001L WASHER M10 IN STOCK	$0.70	2
30	FN110046	NUT - HEX.	FN110046 NUT - HEX. flange, M10	$0.70	2
31	FS110306M	STUD	FS110306M STUD	$1.96	3
32	IAI100031	DAMPER - VIBRATION	IAI100031 DAMPER - VIBRATION	$373.35	1
33	FY110046	NUT - HEX.	FY110046 NUT - HEX. M10	$2.82	3
34	SH214141	PLUG	SH214141 PLUG Transfer box Switch Blanking Plug	$22.69	-
35	232042	WASHER - SEALING	232042 WASHER - SEALING	$0.55	-
36	STC4404	SEALER	STC4404 SEALER silicone	$27.74	1
