Inlet Manifold (Nitra Plant Build) (5.0 Petrol AJ133 DOHC CDA) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] - Inlet Manifold (Nitra Plant Build) (5.0 Petrol AJ133 DOHC CDA) ((V) FROMM2000001)

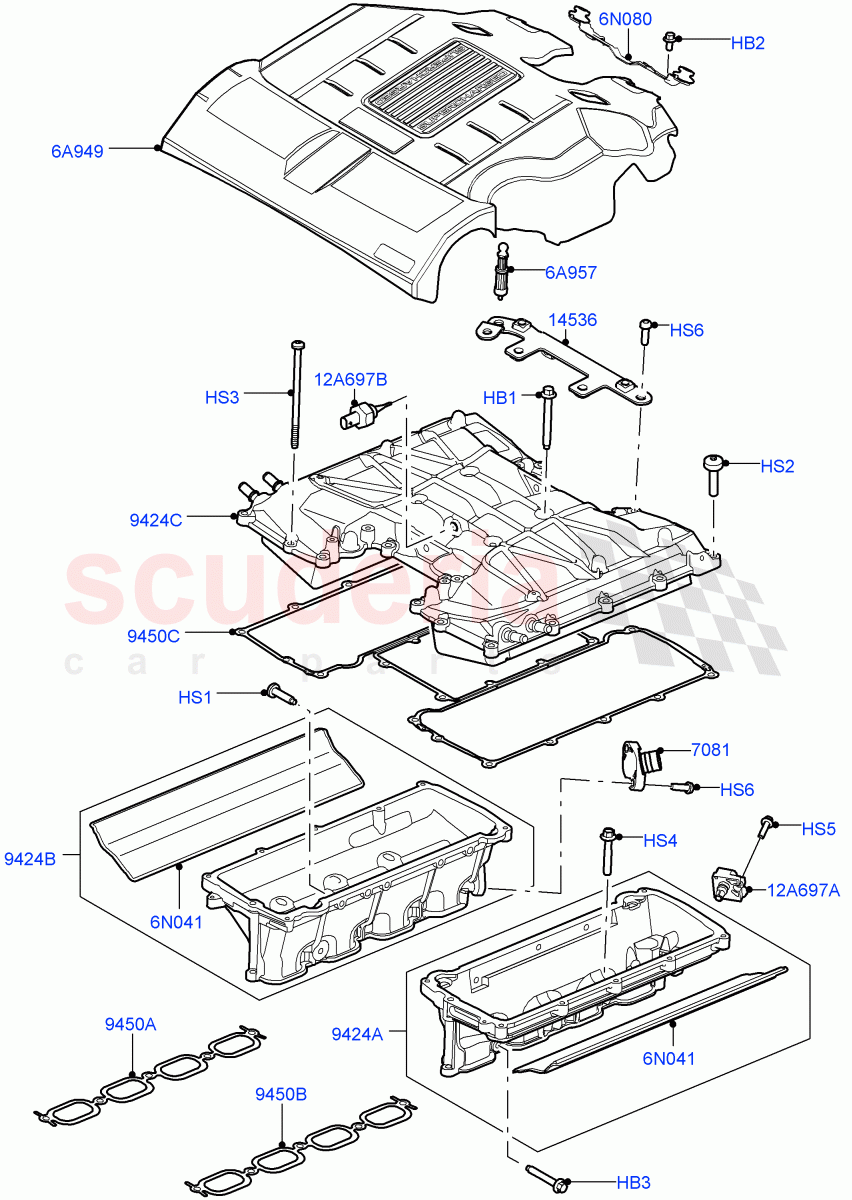

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR008883	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4567977	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010917	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011363	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011065	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011067	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044772	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011271	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025788	PLATE - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017287	BRACKET - SYMPOSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062494	COVER - ENGINE TOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010871	STUD - BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042119	INSULATOR - INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011564	BRACKET - ENGINE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042173	MANIFOLD - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101751	MANIFOLD - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111075	INLET MANIFOLD WITH INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011585	GASKET - INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011586	GASKET - INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011343	GASKET - INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021587	SENSOR - AIR TEMPERATURE & PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035536	SENSOR - AIR CHARGE TEMPERATURE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR008883	BOLT - HEX.HEAD	LR008883 BOLT - HEX.HEAD Intercooler, M8 x 65MM / From: M2000001	-	4	Enquire
HB2	FS106126	BOLT	FS106126 BOLT Bracket, Engine Cover, Hexagonal Head, M6 x 12MM / From: M2000001	-	2	Enquire
HB3	4567977	BOLT	4567977 BOLT M8 X 50, Manifold To Supercharger / From: M2000001	-	2	Enquire
HS1	LR010917	SCREW	LR010917 SCREW M8 x 30MM, Manifold To Supercharger / From: M2000001	-	6	Enquire
HS2	LR011363	SCREW	LR011363 SCREW Intercooler To Manifold, M8 X 35MM / From: M2000001	-	19	Enquire
HS3	LR011065	SCREW	LR011065 SCREW Intercooler To Cylinder Head, M8 X 150MM / From: M2000001	-	2	Enquire
HS4	LR011067	SCREW	LR011067 SCREW M8 X 45MM, Manifold To Cylinder Head / From: M2000001	-	8	Enquire
HS5	LR044772	SCREW	LR044772 SCREW M5 x 20MM, Sensor - Air Temperature And Pressure / From: M2000001	-	1	Enquire
HS6	LR011271	SCREW	LR011271 SCREW Bracket, Inlet Manifold, M6 x 30MM / From: M2000001	-	2	Enquire
6A949	LR062494	COVER - ENGINE TOP	LR062494 COVER - ENGINE TOP Engine, Land Rover Logo / From: M2000001	-	1	Enquire
6A957	LR010871	STUD - BALL	LR010871 STUD - BALL Engine Cover / From: M2000001	-	2	Enquire
6N041	LR042119	INSULATOR - INTAKE MANIFOLD	LR042119 INSULATOR - INTAKE MANIFOLD Attaches to intake manifold / From: M2000001	-	2	Enquire
6N080	LR011564	BRACKET - ENGINE COVER	LR011564 BRACKET - ENGINE COVER Engine Cover / From: M2000001	-	1	Enquire
12A697A	LR021587	SENSOR - AIR TEMPERATURE & PRESSURE	LR021587 SENSOR - AIR TEMPERATURE & PRESSURE Sensor - Air Temperature And Pressure / From: M2000001	-	1	Enquire
12A697B	LR035536	SENSOR - AIR CHARGE TEMPERATURE	LR035536 SENSOR - AIR CHARGE TEMPERATURE From: M2000001	-	1	Enquire
7081	LR025788	PLATE - BLANKING	LR025788 PLATE - BLANKING From: M2000001	-	1	Enquire
9424A	LR042173	MANIFOLD - INLET	LR042173 MANIFOLD - INLET LH / From: M2000001	-	1	Enquire
9424B	LR101751	MANIFOLD - INLET	LR101751 MANIFOLD - INLET RH / From: M2000001	-	1	Enquire
9424C	LR111075	INLET MANIFOLD WITH INTERCOOLER	LR111075 INLET MANIFOLD WITH INTERCOOLER Upper, With Intercooler / From: M2000001	-	1	Enquire
9450A	LR011585	GASKET - INTAKE MANIFOLD	LR011585 GASKET - INTAKE MANIFOLD RH, Manifold To Cylinder Head / From: M2000001	-	1	Enquire
9450B	LR011586	GASKET - INTAKE MANIFOLD	LR011586 GASKET - INTAKE MANIFOLD LH, Manifold To Cylinder Head / From: M2000001	-	1	Enquire
9450C	LR011343	GASKET - INTAKE MANIFOLD	LR011343 GASKET - INTAKE MANIFOLD Intercooler To Manifold / From: M2000001	-	1	Enquire
14536	LR017287	BRACKET - SYMPOSER	LR017287 BRACKET - SYMPOSER Inlet Manifold / From: M2000001	-	1	Enquire
