Find Your Part

Exhaust Manifold (Nitra Plant Build) (5.0 Petrol AJ133 DOHC CDA) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] - Exhaust Manifold (Nitra Plant Build) (5.0 Petrol AJ133 DOHC CDA) ((V) FROMM2000001)

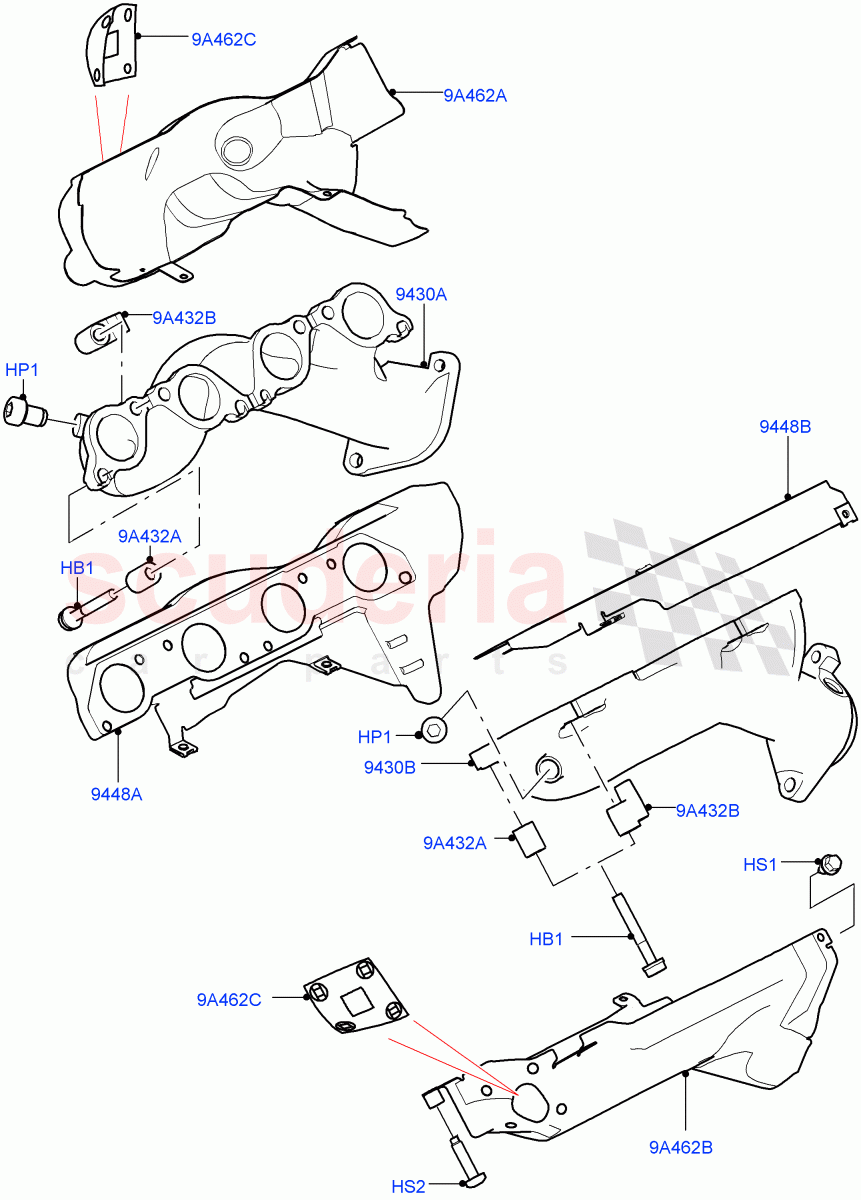

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR034008	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114029	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006698	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010917	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112660	MANIFOLD - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112661	MANIFOLD - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116108	GASKET - EXHAUST MANIFOLD	Enquire	To Order
	LR166796	GASKET - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116109	GASKET - EXHAUST MANIFOLD	Enquire	To Order
	LR166798	GASKET - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4642648	SPACER - EXHAUST MANIFOLD FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010805	EXHAUST MANIFOLD FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107292	SHIELD - EXHAUST MANIFOLD HEAT	Enquire	To Order
	LR166799	SHIELD - EXHAUST MANIFOLD HEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107293	SHIELD - EXHAUST MANIFOLD HEAT	Enquire	To Order
	LR166800	SHIELD - EXHAUST MANIFOLD HEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108948	SHIELD - EXHAUST MANIFOLD HEAT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR034008	BOLT	LR034008 BOLT Exhaust Manifold, M8 x 57MM / From: M2000001	-	16	Enquire
HP1	LR114029	PLUG - BLANKING	LR114029 PLUG - BLANKING ULEV 125 Emission / Blanking / From: M2000001	-	2	Enquire
HS1	LR006698	SCREW	LR006698 SCREW Heat Shield, M6.3 X 13MM / From: M2000001	-	7	Enquire
HS2	LR010917	SCREW	LR010917 SCREW Heat Shield, M8 x 30MM / From: M2000001	-	1	Enquire
9A432A	4642648	SPACER - EXHAUST MANIFOLD FIXING	4642648 SPACER - EXHAUST MANIFOLD FIXING Exhaust Manifold Fixing / From: M2000001	-	10	Enquire
9A432B	LR010805	EXHAUST MANIFOLD FIXING	LR010805 EXHAUST MANIFOLD FIXING Exhaust Manifold Fixing / From: M2000001	-	6	Enquire
9A462A	LR107292	SHIELD - EXHAUST MANIFOLD HEAT	LR107292 SHIELD - EXHAUST MANIFOLD HEAT RH, Exhaust Manifold / From: M2000001 / To: N2090356	-	1	Enquire
9A462A	LR166799	SHIELD - EXHAUST MANIFOLD HEAT	LR166799 SHIELD - EXHAUST MANIFOLD HEAT RH, Exhaust Manifold / From: N2090357	-	1	Enquire
9A462B	LR107293	SHIELD - EXHAUST MANIFOLD HEAT	LR107293 SHIELD - EXHAUST MANIFOLD HEAT LH, Exhaust Manifold / From: M2000001 / To: N2090356	-	1	Enquire
9A462B	LR166800	SHIELD - EXHAUST MANIFOLD HEAT	LR166800 SHIELD - EXHAUST MANIFOLD HEAT LH, Exhaust Manifold / From: N2090357	-	1	Enquire
9A462C	LR108948	SHIELD - EXHAUST MANIFOLD HEAT	LR108948 SHIELD - EXHAUST MANIFOLD HEAT Exhaust Gas Oxygen Sensor, Flexible / From: M2000001	-	2	Enquire
9430A	LR112660	MANIFOLD - EXHAUST	LR112660 MANIFOLD - EXHAUST RH / From: M2000001	-	1	Enquire
9430B	LR112661	MANIFOLD - EXHAUST	LR112661 MANIFOLD - EXHAUST LH / From: M2000001	-	1	Enquire
9448A	LR116108	GASKET - EXHAUST MANIFOLD	LR116108 GASKET - EXHAUST MANIFOLD RH, Exhaust Manifold / From: M2000001 / To: N2090356	-	1	Enquire
9448A	LR166796	GASKET - EXHAUST MANIFOLD	LR166796 GASKET - EXHAUST MANIFOLD RH, Exhaust Manifold / From: N2090357	-	1	Enquire
9448B	LR116109	GASKET - EXHAUST MANIFOLD	LR116109 GASKET - EXHAUST MANIFOLD LH, Exhaust Manifold / From: M2000001 / To: N2090356	-	1	Enquire
9448B	LR166798	GASKET - EXHAUST MANIFOLD	LR166798 GASKET - EXHAUST MANIFOLD LH, Exhaust Manifold / From: N2090357	-	1	Enquire
