Cylinder Block And Plugs (Nitra Plant Build) (5.0 Petrol Aj133 Dohc Cda) ((V) Fromm2000001)

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] - Cylinder Block And Plugs (Nitra Plant Build) (5.0 Petrol AJ133 DOHC CDA) ((V) FROMM2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR010903 BOLT $2.98 To Order
Photo Part No Description Price (each) Stock
4640315 SEAL - PLUG $12.95 To Order
Photo Part No Description Price (each) Stock
4640317 PLUG - DRAIN $7.32 To Order
Photo Part No Description Price (each) Stock
LR008871 PLUG - ENGINE $3.54 To Order
Photo Part No Description Price (each) Stock
LR111116 PLUG - ENGINE $4.96 To Order
Photo Part No Description Price (each) Stock
LR020249 SCREW $1.19 To Order
Photo Part No Description Price (each) Stock
LR011413 SCREW $1.04 To Order
Photo Part No Description Price (each) Stock
4603182 DOWEL $27.62 To Order
Photo Part No Description Price (each) Stock
LR000335 DOWEL - PIN $11.72 To Order
Photo Part No Description Price (each) Stock
LR053447 TRAY - OIL $286.09 To Order
Photo Part No Description Price (each) Stock
LR156352 PLATE - CYLINDER BLOCK REAR $505.21 To Order
Photo Part No Description Price (each) Stock
LR091573 NOZZLE - PISTON COOLING $34.64 To Order
Photo Part No Description Price (each) Stock
LR057802 DOWEL - PIN $3.36 IN STOCK
LR057802 DOWEL - PIN $3.36 IN STOCK
View All

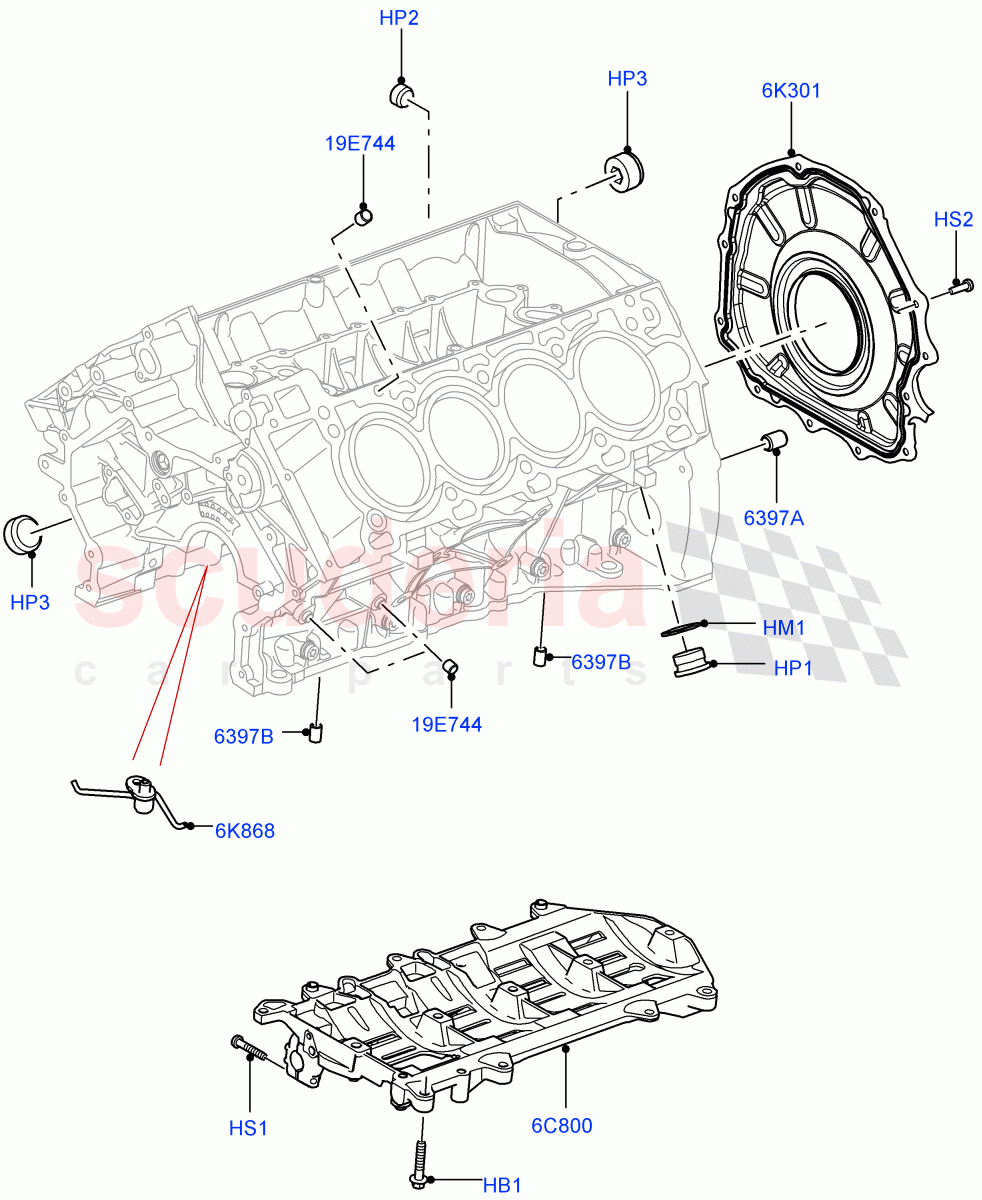

Cylinder Block And Plugs (Nitra Plant Build) (5.0 Petrol AJ133 DOHC CDA) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR010903
BOLT
M8 x 40MM, Windage Tray / From: M2000001 		$2.98 11
HM1 4640315
SEAL - PLUG
28.25 X 39.13 X 4, Sealing Washer / From: M2000001 		$12.95 1
HP1 4640317
PLUG - DRAIN
M30 / From: M2000001 		$7.32 1
HP2 LR008871
PLUG - ENGINE
1/2" / From: M2000001 		$3.54 1
HP3 LR111116
PLUG - ENGINE
M18 X 1.5 X 10MM / From: M2000001 		$4.96 2
HS1 LR020249
SCREW
Fuel Pumps Shaft Carrier, M6 x 35MM / From: M2000001 		$1.19 8
HS2 LR011413
SCREW
M6 X 20MM, Retainer - Seal / From: M2000001 		$1.04 12
6C800 LR053447
TRAY - OIL
Stiffener - Includes Fuel Pumps Drive Shaft Carrier / From: M2000001 		$286.09 1
6K301 LR156352
PLATE - CYLINDER BLOCK REAR
Rear / From: M2000001 		$505.21 1
6K868 LR091573
NOZZLE - PISTON COOLING
From: M2000001 		$34.64 4
19E744 LR057802
DOWEL - PIN
IN STOCK 		$3.36 6
19E744 LR057802
DOWEL - PIN
Air Conditioning Compressor Bracket,
IN STOCK 		$3.36 2
6397A 4603182
DOWEL
15.7MM, Cyl Block to Flywheel Housing, Pin - Dowell / From: M2000001 		$27.62 2
6397B LR000335
DOWEL - PIN
Cylinder Block To Oil Pan, 		$11.72 2
