Cylinder Head (Nitra Plant Build) (5.0 Petrol AJ133 DOHC CDA) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol]

View All

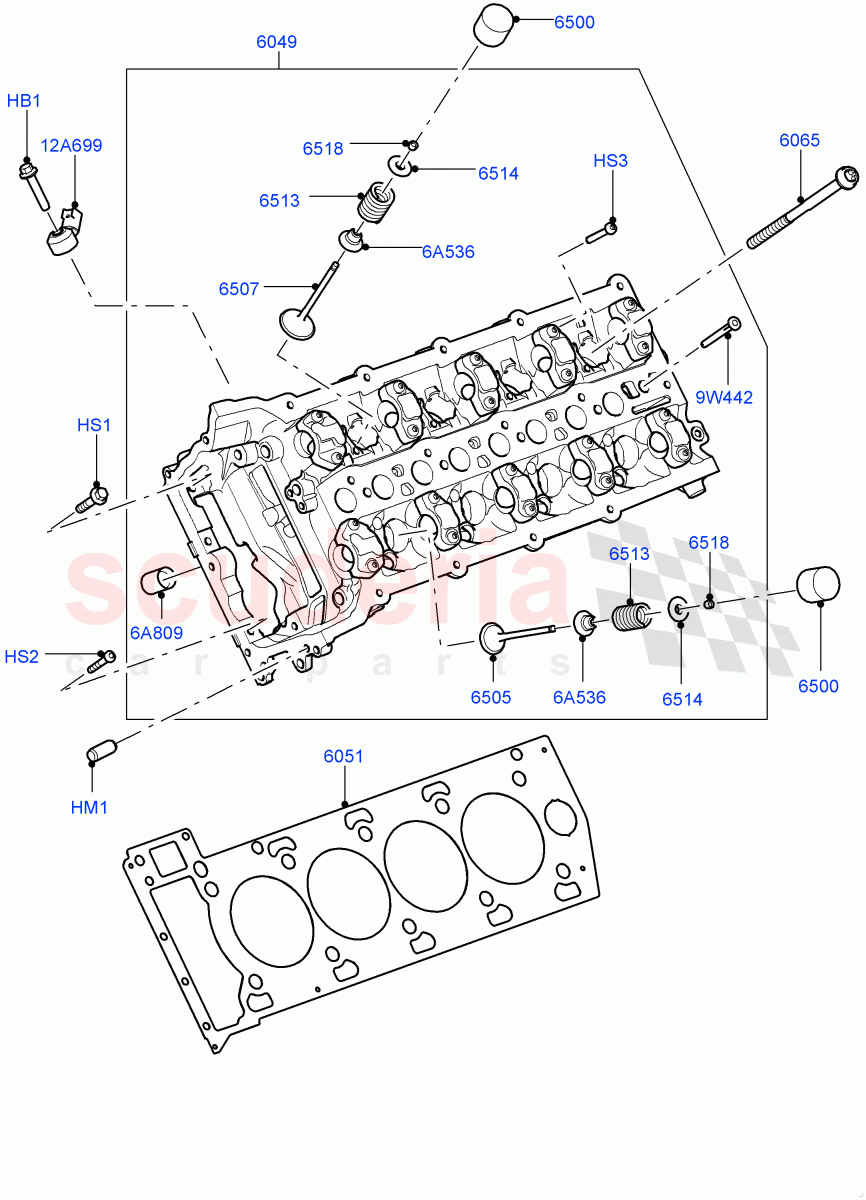

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] - Cylinder Head (Nitra Plant Build) (5.0 Petrol AJ133 DOHC CDA) ((V) FROMM2000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR010903	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000505	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010905	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011271	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101929	CYLINDER HEAD	Enquire	To Order
	LR101930	CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105294	GASKET-CYLINDER HEAD	Enquire	To Order
	LR181763	GASKET - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR026143	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037205	TAPPET - VALVE	Enquire	To Order
	LR037211	TAPPET - VALVE	Enquire	To Order
	LR037229	TAPPET - VALVE	Enquire	To Order

...and 47 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR082739	VALVE - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010863	VALVE - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038167	SPRING - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010702	RETAINER - VALVE SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008878	COLLET - VALVE SPRING RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078819	SEAT - SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077674	VALVE - CHECK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011996	TUBE - DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008877	SENSOR - ENGINE KNOCK	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR010903	BOLT	LR010903 BOLT knock sensor, M8 x 40MM / From: M2000001	-	4	Enquire
HM1	LR000505	DOWEL	LR000505 DOWEL 6 x 14MM, Pin - Dowell / From: M2000001	-	4	Enquire
HS1	LR011700	SCREW	LR011700 SCREW M8 X 35MM / From: M2000001	-	2	Enquire
HS2	LR010905	SCREW	LR010905 SCREW M6 x 35MM / From: M2000001	-	4	Enquire
HS3	LR011271	SCREW	LR011271 SCREW M6 x 30MM / From: M2000001	-	40	Enquire
6A536	LR078819	SEAT - SPRING	LR078819 SEAT - SPRING From: M2000001	-	32	Enquire
6A809	LR077674	VALVE - CHECK	LR077674 VALVE - CHECK From: M2000001	-	1	Enquire
9W442	LR011996	TUBE - DRAIN	LR011996 TUBE - DRAIN Drain / From: M2000001	-	2	Enquire
12A699	LR008877	SENSOR - ENGINE KNOCK	LR008877 SENSOR - ENGINE KNOCK From: M2000001	-	4	Enquire
6049	LR101929	CYLINDER HEAD	LR101929 CYLINDER HEAD RH / From: M2000001	-	1	Enquire
6049	LR101930	CYLINDER HEAD	LR101930 CYLINDER HEAD LH / From: M2000001	-	1	Enquire
6051	LR105294	GASKET-CYLINDER HEAD	LR105294 GASKET-CYLINDER HEAD RH / From: M2000001	-	1	Enquire
6051	LR181763	GASKET - CYLINDER HEAD	LR181763 GASKET - CYLINDER HEAD LH / From: M2000001	-	1	Enquire
6065	LR026143	BOLT - HEX.HEAD	LR026143 BOLT - HEX.HEAD M11 X 178 / From: M2000001	-	20	Enquire
6500	LR037205	TAPPET - VALVE	LR037205 TAPPET - VALVE 2.950mm / From: M2000001	-	-	Enquire
6500	LR037211	TAPPET - VALVE	LR037211 TAPPET - VALVE 2.965MM / From: M2000001	-	-	Enquire
6500	LR037229	TAPPET - VALVE	LR037229 TAPPET - VALVE 2.98MM / From: M2000001	-	-	Enquire
6500	LR037243	TAPPET - VALVE	LR037243 TAPPET - VALVE 2.995MM / From: M2000001	-	-	Enquire
6500	LR037252	TAPPET - VALVE	LR037252 TAPPET - VALVE 3.010MM / From: M2000001	-	-	Enquire
6500	LR037253	TAPPET - VALVE	LR037253 TAPPET - VALVE 3.025MM / From: M2000001	-	-	Enquire
6500	LR037254	TAPPET - VALVE	LR037254 TAPPET - VALVE 3.040MM / From: M2000001	-	-	Enquire
6500	LR037258	TAPPET - VALVE	LR037258 TAPPET - VALVE 3.055MM / From: M2000001	-	-	Enquire
6500	LR037262	TAPPET - VALVE	LR037262 TAPPET - VALVE 3.070MM / From: M2000001	-	-	Enquire
6500	LR037264	TAPPET - VALVE	LR037264 TAPPET - VALVE 3.085MM / From: M2000001	-	1	Enquire
6500	LR037267	TAPPET - VALVE	LR037267 TAPPET - VALVE 3.100MM / From: M2000001	-	-	Enquire
6500	LR037269	TAPPET - VALVE	LR037269 TAPPET - VALVE 3.115MM / From: M2000001	-	-	Enquire
6500	LR037272	TAPPET - VALVE	LR037272 TAPPET - VALVE 3.130MM / From: M2000001	-	-	Enquire
6500	LR037275	TAPPET - VALVE	LR037275 TAPPET - VALVE 3.145MM / From: M2000001	-	-	Enquire
6500	LR037279	TAPPET - VALVE	LR037279 TAPPET - VALVE 3.160MM / From: M2000001	-	-	Enquire
6500	LR037284	TAPPET - VALVE	LR037284 TAPPET - VALVE 3.175MM / From: M2000001	-	-	Enquire
6500	LR037286	TAPPET - VALVE	LR037286 TAPPET - VALVE 3.190MM / From: M2000001	-	-	Enquire
6500	LR037287	TAPPET - VALVE	LR037287 TAPPET - VALVE 3.205MM / From: M2000001	-	-	Enquire
6500	LR037288	TAPPET - VALVE	LR037288 TAPPET - VALVE 3.220MM / From: M2000001	-	-	Enquire
6500	LR037289	TAPPET - VALVE	LR037289 TAPPET - VALVE 3.235MM / From: M2000001	-	-	Enquire
6500	LR037292	TAPPET - VALVE	LR037292 TAPPET - VALVE 3.250MM / From: M2000001	-	-	Enquire
6500	LR037298	TAPPET - VALVE	LR037298 TAPPET - VALVE 3.265MM / From: M2000001	-	-	Enquire
6500	LR037306	TAPPET - VALVE	LR037306 TAPPET - VALVE 3.280MM / From: M2000001	-	-	Enquire
6500	LR037307	TAPPET - VALVE	LR037307 TAPPET - VALVE 3.295MM / From: M2000001	-	-	Enquire
6500	LR037308	TAPPET - VALVE	LR037308 TAPPET - VALVE 3.310MM / From: M2000001	-	-	Enquire
6500	LR037309	TAPPET - VALVE	LR037309 TAPPET - VALVE 3.325MM / From: M2000001	-	-	Enquire
6500	LR037310	TAPPET - VALVE	LR037310 TAPPET - VALVE 3.340MM / From: M2000001	-	-	Enquire
6500	LR037311	TAPPET - VALVE	LR037311 TAPPET - VALVE 3.355MM / From: M2000001	-	-	Enquire
6500	LR037312	TAPPET - VALVE	LR037312 TAPPET - VALVE 3.370MM / From: M2000001	-	-	Enquire
6500	LR037313	TAPPET - VALVE	LR037313 TAPPET - VALVE 3.385MM / From: M2000001	-	-	Enquire
6500	LR037314	TAPPET - VALVE	LR037314 TAPPET - VALVE 3.400MM / From: M2000001	-	-	Enquire
6500	LR037315	TAPPET - VALVE	LR037315 TAPPET - VALVE 3.415MM / From: M2000001	-	-	Enquire
6500	LR037316	TAPPET - VALVE	LR037316 TAPPET - VALVE 3.430MM / From: M2000001	-	-	Enquire
6500	LR037317	TAPPET - VALVE	LR037317 TAPPET - VALVE 3.445MM / From: M2000001	-	-	Enquire
6500	LR037318	TAPPET - VALVE	LR037318 TAPPET - VALVE 3.460MM / From: M2000001	-	-	Enquire
6500	LR037322	TAPPET - VALVE	LR037322 TAPPET - VALVE 3.475MM / From: M2000001	-	-	Enquire
6500	LR037328	TAPPET - VALVE	LR037328 TAPPET - VALVE 3.490MM / From: M2000001	-	-	Enquire
6500	LR037329	TAPPET - VALVE	LR037329 TAPPET - VALVE 3.505MM / From: M2000001	-	-	Enquire
6500	LR037330	TAPPET - VALVE	LR037330 TAPPET - VALVE 3.520MM / From: M2000001	-	-	Enquire
6500	LR037331	TAPPET - VALVE	LR037331 TAPPET - VALVE 3.535MM / From: M2000001	-	-	Enquire
6500	LR037332	TAPPET - VALVE	LR037332 TAPPET - VALVE 3.550MM / From: M2000001	-	-	Enquire
6500	LR037333	TAPPET - VALVE	LR037333 TAPPET - VALVE 3.565MM / From: M2000001	-	-	Enquire
6500	LR037334	TAPPET - VALVE	LR037334 TAPPET - VALVE 3.580MM / From: M2000001	-	-	Enquire
6500	LR037335	TAPPET - VALVE	LR037335 TAPPET - VALVE 3.595MM / From: M2000001	-	-	Enquire
6500	LR037336	TAPPET - VALVE	LR037336 TAPPET - VALVE 3.610MM / From: M2000001	-	-	Enquire
6500	LR037343	TAPPET - VALVE	LR037343 TAPPET - VALVE 3.625MM / From: M2000001	-	-	Enquire
6500	LR037344	TAPPET - VALVE	LR037344 TAPPET - VALVE 3.640MM / From: M2000001	-	-	Enquire
6500	LR037345	TAPPET - VALVE	LR037345 TAPPET - VALVE 3.655MM / From: M2000001	-	-	Enquire
6500	LR037346	TAPPET - VALVE	LR037346 TAPPET - VALVE 3.670MM / From: M2000001	-	-	Enquire
6500	LR037347	TAPPET - VALVE	LR037347 TAPPET - VALVE 3.685MM / From: M2000001	-	-	Enquire
6505	LR082739	VALVE - EXHAUST	LR082739 VALVE - EXHAUST From: M2000001	-	16	Enquire
6507	LR010863	VALVE - INLET	LR010863 VALVE - INLET From: M2000001	-	16	Enquire
6513	LR038167	SPRING - VALVE	LR038167 SPRING - VALVE From: M2000001	-	32	Enquire
6514	LR010702	RETAINER - VALVE SPRING	LR010702 RETAINER - VALVE SPRING 5.0 Petrol AJ133 DOHC CDA / From: M2000001	-	32	Enquire
6518	LR008878	COLLET - VALVE SPRING RETAINER	LR008878 COLLET - VALVE SPRING RETAINER From: M2000001	-	64	Enquire
